TOAUTO 2/3 Axis LCD DRO Touch Screen Digital Readout 1um Glass Scale 4''-40''
Estimate for one unit, air shipping. Final total is confirmed at checkout.
Product arrives warehouse Sep 10 - Sep 15. Products ship from our warehouse every Friday. Delivered to you by Sep 29, 2026.
About this item
2/3Axis Digital Readout LCD Touch Screen DRO Display High Precision 1um TTL Linear Glass Scale Travel Length 4''-40''(100mm-1000mm)
This kind of DRO is commonly fitted to machines, especially for metal working — lathes, cylindrical grinders, milling machines, surface grinders, boring mills and other machine tools — to allow the operator to work faster and with greater accuracy.
Specification
- Reset
- MM/inch Mode
- Input preset data for an axis
- Absolute / relative / user coordinate system
- Automatically divide by 2
- SDM General Clearance
- Screen saver function
- Power-down memory function
- Set the mechanical zero of the sensor
- Non-linear compensation
- Linear compensation
- Lathe diameter radius switch
- Anti-shake switch
- Coordinate joint switch
- Brightness adjustment
Special Functions
- Circumferential hole
- Linear hole
- Smooth arc
- Simple arc
- Bevel machining
- Network hole
- Inner machining
- Machining function of EDM
- Touch screen function
| Model | 2Axis / 3 Axis LCD Touch Screen Digital Readout |
| Supply Voltage | AC86V~240V; 50HZ~60HZ,US Plug |
| Power Consumption | 15VA |
| Operating Temp | 0 ~ 50 degree centigrade |
| Storage temperature | -20~65 degree centigrade |
| Relative Humidity | Less than 90% |
| Input Signal | DB9 Connector |
| Frequency | Less than 5M Hz |
| Max Resolution | 1μm |
| Weight | 1.8kg |
| Packing Size | 35x15.5x22.5cm |
| Display Advantage | Good capacity of resisting disturbance, durable keyboard, easy to change |

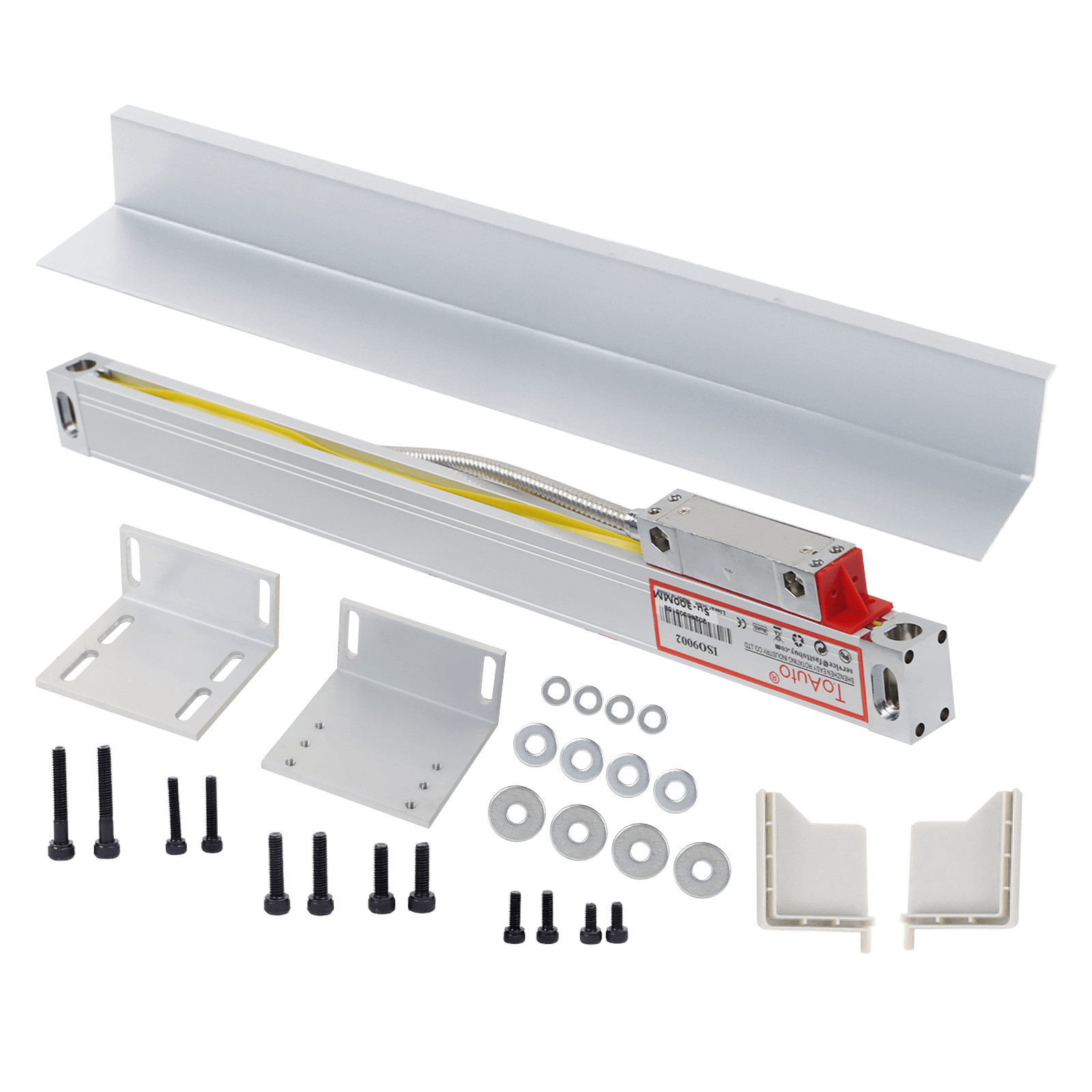

1pc Touch Screen LCD Digital Readout only Or 1pc Linear Scale Only (All scale length is travel length)
Mounting Accessories
English User Manual (come with the DRO)
On Sep 2, 2026 at 19:39:55 PDT, seller added the following information:
Condition
TOAUTO 2/3 Axis LCD DRO Touch Screen Digital Readout 1um Glass Scale 4''-40'' · x1
