4"-120" 5um/1um Magnetic Scale Encoder Digital Readout DRO LCD 1 Axis
Estimate for one unit, air shipping. Final total is confirmed at checkout.
Product arrives warehouse Sep 9 - Sep 21. Products ship from our warehouse every Friday. Delivered to you by Oct 6, 2026.
About this item

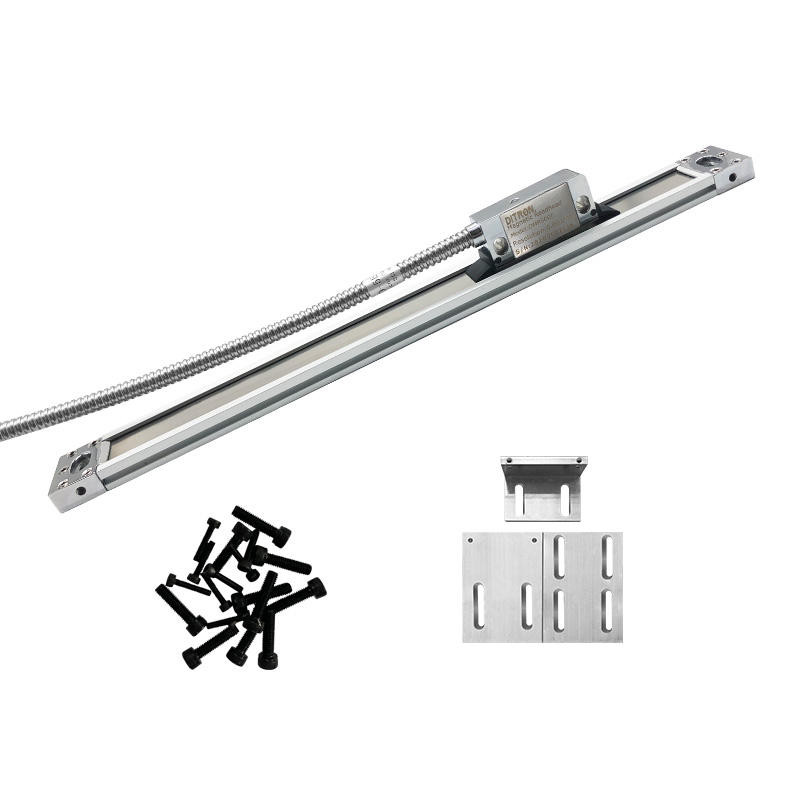

Product Features:
1. Slim dimension, the best choice for the cross slide of lathe and the application where the space is restricted
2. Fully sealed reading head makes it match IP67 protection class.
3. With the tableting inserted two sides of the profile makes the installation have more choice.
4. 5 holes laid on each end cap for adjustment makes the installation be much easier.
5. RS422 full differential signal
6. Special profile connecting way with the needle, flexible to install.
Voltage | 4.7V to 7.5V(The range of anti-pole and over-voltage protection:-20V-+20V) |
Supply current | < 35mA |
Cable Voltage-drop | ~4.8mV/m-without load |
Output signal | RS422,TTL |
Signal Level | UH≥2.5V at-lH=20mA |
Temperature | working:-10℃-+80°C |
Resolution | 0.01mm,0.005mm,0.001 mm |
Accuracy | ±0.02mm/M |
Repeat Accuracy | 1 pulse |
Maximum cable length | 200M |
Measuring Length | 50~32000mm |
Housing cross section | 33X20mm |
Condition
4"-120" 5um/1um Magnetic Scale Encoder Digital Readout DRO LCD 1 Axis · x1
