Heavy Duty (HDPE) Spiral Wrap Hose & Cable Protector - 1/2" to 5" Size Options
Estimate for one unit, air shipping. Final total is confirmed at checkout.
Product arrives warehouse Sep 10 - Sep 12. Products ship from our warehouse every Friday. Delivered to you by Sep 29, 2026.
About this item

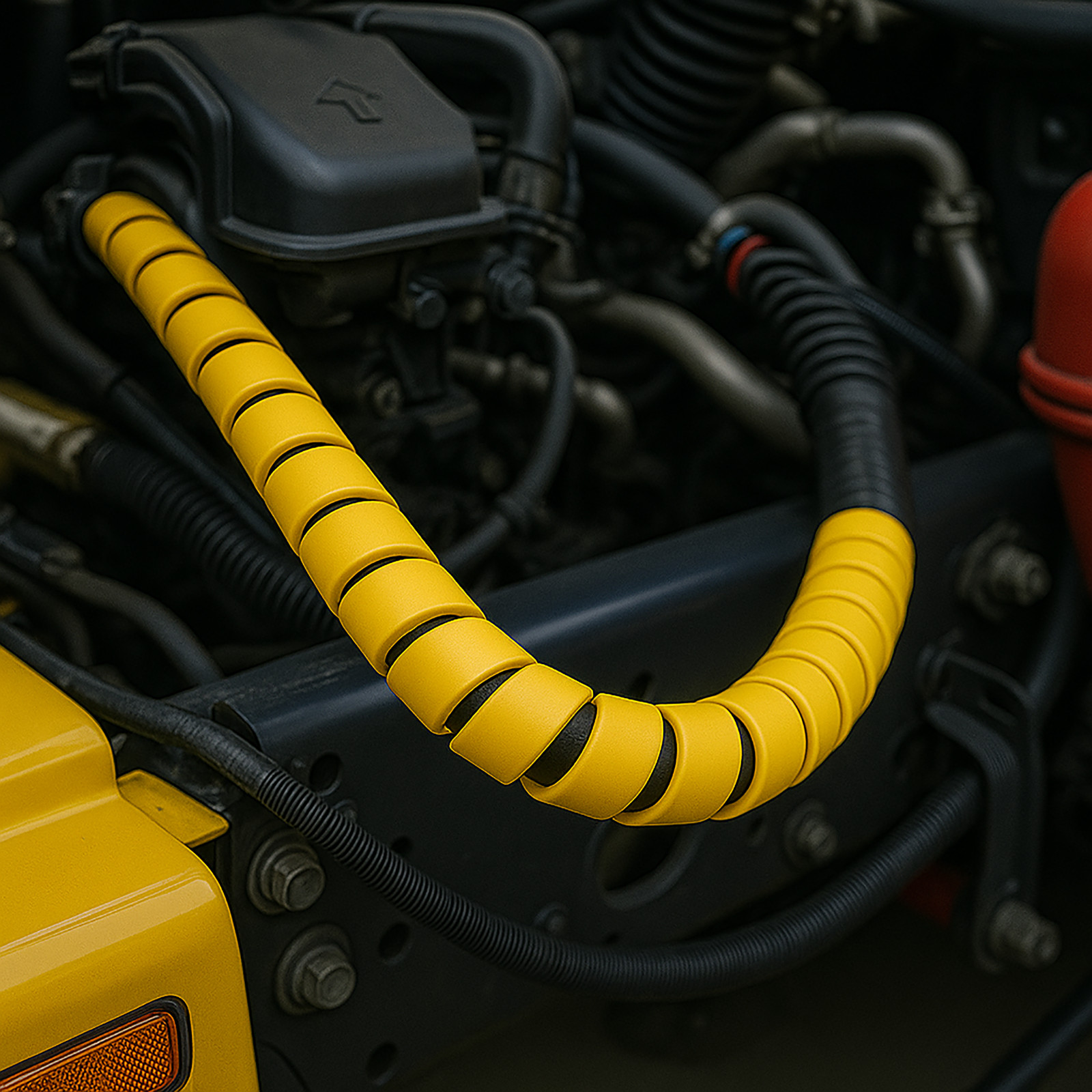

Electriduct Heavy Duty Spiral Wrap
Available in sizes ranging from 1/2" to 5", see chart below for measurements.
Add a layer of protection to your hydraulic hoses, pipes and cables by using our Heavy Duty Spiral Wrap to improve the service life of your equipment.
The spiral design easily wraps around the outside of the item you are protecting without disconnecting or feeding and provides abrasion , oil and UV resistance while still being flexible.
- Material: High Density Polyethylene (HDPE)
- Operating Range: -40°C - + 80°C
- Tensile Strength: 25MPa at room temp
| Part # | Nominal Size (inches) | O.D. (inches) | I.D. (inches) | Wall Thickness (inches) | Screw Pitch (inches) | Applicable Product Size (inches) |
|---|---|---|---|---|---|---|
| WL-SW-HD-050 | 1/2 | 0.47 | 0.37 | 0.04 | 0.41 | 0.35 - 0.51 |
| WL-SW-HD-064 | 0.64 | 0.62 | 0.52 | 0.05 | 0.47 | 0.51 - 0.7 |
| WL-SW-HD-075 | 3/4 | 0.78 | 0.62 | 0.07 | 0.59 | 0.62 - 0.86 |
| WL-SW-HD-100 | 1 | 0.98 | 0.81 | 0.08 | 0.66 | 0.75 - 1.06 |
| WL-SW-HD-125 | 1.25 | 1.25 | 1.06 | 0.09 | 0.86 | 1.06 - 1.41 |
| WL-SW-HD-150 | 1.5 | 1.57 | 1.36 | 0.1 | 0.94 | 1.33 - 1.73 |
| WL-SW-HD-200 | 2 | 1.9 | 1.63 | 0.13 | 1.18 | 1.69 - 2.16 |
| WL-SW-HD-250 | 2.5 | 2.46 | 2.2 | 0.14 | 1.45 | 2.16 - 2.24 |
| WL-SW-HD-300 | 3 | 2.95 | 2.6 | 0.17 | 1.65 | 2.59 - 3.14 |
| WL-SW-HD-350 | 3.5 | 3.54 | 3.15 | 0.19 | 1.77 | 3.14 - 3.54 |
| WL-SW-HD-440 | 4.4 | 4.33 | 3.89 | 0.21 | 1.96 | 3.89 - 4.52 |
| WL-SW-HD-500 | 5 | 4.92 | 4.45 | 0.23 | 2.04 | 4.44 - 5.11 |
