Quick Comparison – Outdoor Wireless Solutions
Table 1 – Core Specifications
| Model | Wi-Fi Standard | Max Speed | Antennas | Ports | Protection | PoE | Range / Coverage |
|---|---|---|---|---|---|---|---|
| WN573HBE2 (Wi‑Fi 7) | Wi‑Fi 7 | 5100 Mbps (4323+688) | 4×8dBi + 1×5dBi (omni) | 1×2.5G WAN/LAN | IP67, 15kV ESD, 4kV lightning | Active + Passive | Up to 350 m |
| WN573HP3 (3km PtP/PtMP) | Wi‑Fi 6 (AX3000) | 2975 Mbps (2402+573) | 4×12dBi directional | 1× Gigabit WAN/LAN | IP67 | Passive + Active | 3 km (PtP/PtMP) |
| WN573HX3 (up to 300m) | Wi‑Fi 6 (AX3000) | 2975 Mbps (2402+573) | 4×8dBi omni | 1× Gigabit WAN/LAN | IP67, 15kV ESD, 6kV lightning | Passive + Active | Up to 300 m |
| WN588HX3 (6‑antenna) | Wi‑Fi 6 (AX3000) | 2975 Mbps (2402+573) | 6×7dBi omni | 1× Gigabit WAN/LAN | IP67 | PoE (active) | Up to 300 m |
| WN588HA2 (AC1200 2026) | Wi‑Fi 5 (AC1200) | 1200 Mbps (867+300) | 4×7dBi omni | 1× Gigabit WAN/LAN | IP67, 15kV ESD, 6kV lightning | Active + Passive | ~200 m |
| WN570HA2 (2‑antenna) | Wi‑Fi 5 (AC1200) | 1200 Mbps (867+300) | 2×7dBi omni | 1× 100Mbps WAN/LAN | IP67, 15kV ESD, 6kV lightning | Active + Passive | ~150 m |
| WN572HP3 (Hot sale) | Wi‑Fi 5 (AC1200) | 1200 Mbps (867+300) | 4×7dBi omni (detachable) | Dual Gigabit (WAN+LAN) | IP65, 15kV ESD, 4kV lightning | Passive | ~200 m |
| WN573HX1 (AX1800) | Wi‑Fi 6 (AX1800) | 1775 Mbps (1201+574) | 4×8dBi omni | 1× Gigabit WAN/LAN | IP67, 15kV ESD, 6kV lightning | Passive + Active | Up to 250 m |
Note: All models support Mesh, AP, Repeater, and Router modes (varies by model). Speeds are theoretical; actual throughput depends on environment and client devices.
Table 2 – Key Features & Best Use Cases
| Model | Key Features | Supported Modes | Mesh Support | Best For |
|---|---|---|---|---|
| WN573HBE2 | Wi‑Fi 7, 2.5G port, 5 adaptive modes, fiberglass antennas | Router, AP, Repeater, Mesh Router, Mesh Extender | ✔ Everything Mesh | Future‑proof outdoor, high‑density venues |
| WN573HP3 | 12dBi directional, 3 km PtP/PtMP, high‑power amps | Mesh, AP, Router, Repeater, AP+Repeater | ✔ Mesh | Long‑distance point‑to‑point, rural links |
| WN573HX3 | 8dBi omni, PA+LNA, IP67, fiberglass antennas | Mesh, AP, Router, Repeater, AP+Repeater | ✔ Mesh | Large yards, campuses, up to 300m coverage |
| WN588HX3 | 6 antennas, wide coverage, high‑gain omni | Mesh, AP, Router, Repeater, AP+Repeater | ✔ Mesh | Open spaces, multi‑floor outdoor areas |
| WN588HA2 | 4×7dBi, Beamforming, MU‑MIMO, AC controller compatible | AP, Repeater, Router, Mesh | ✔ Everything Mesh | Courtyards, fish finders, 300m range |
| WN570HA2 | Compact, 2 antennas, 4 working modes, FIT AP support | AP, Router, Repeater, AP+Repeater | — (FIT AP with AC) | Small yards, parking lots, pools |
| WN572HP3 | Dual Gigabit, 800mW PA, MT7621A, IP65, Mesh Extender | Repeater, AP, Mesh Extender | ✔ Mesh Extender | Factories, communities, large outdoor spaces |
| WN573HX1 | AX1800, 8dBi omni, PA+LNA, fiberglass antennas | Mesh, AP, Router, Repeater, AP+Repeater | ✔ Mesh | Mid‑range outdoor, affordable Wi‑Fi 6 |
Note: Mesh interoperability may require specific firmware versions; check compatibility for your existing WAVLINK devices.
Buying Guide – Which Outdoor Solution Fits Your Needs?
With Wi‑Fi 7, 2.5G port, and 5 operating modes, it delivers blazing speeds and versatile deployment. Ideal for high‑density public spaces, campuses, or any environment that demands the latest wireless technology.
Equipped with 12dBi directional antennas and 3 km transmission capability, this is the go‑to choice for bridging networks across farms, warehouses, or remote buildings. Supports PtP and PtMP configurations.
Both offer AX3000 speed and omnidirectional antennas. Choose WN573HX3 for up to 300m with 4×8dBi, or WN588HX3 for even broader coverage with 6×7dBi antennas – perfect for large courtyards, resorts, and industrial sites.
These AC1200 models are cost‑effective and reliable. WN588HA2 and WN572HP3 offer 4 antennas and mesh support, while WN570HA2 is a compact 2‑antenna option for basic coverage. Ideal for backyards, parking lots, and small businesses.
Delivers Wi‑Fi 6 performance at a lower price point. With 4×8dBi antennas and IP67 protection, it’s a solid choice for mid‑range outdoor coverage without breaking the bank.
- IP67 (or IP65) weatherproof housing for harsh environments
- ESD and lightning protection for reliable operation
- PoE support for flexible installation (no nearby power outlet needed)
- Multiple operating modes (AP, Repeater, Router, Mesh)
- Easy setup and compatibility with WAVLINK mesh ecosystems
BE5100 WiFi 7 Wider coverage

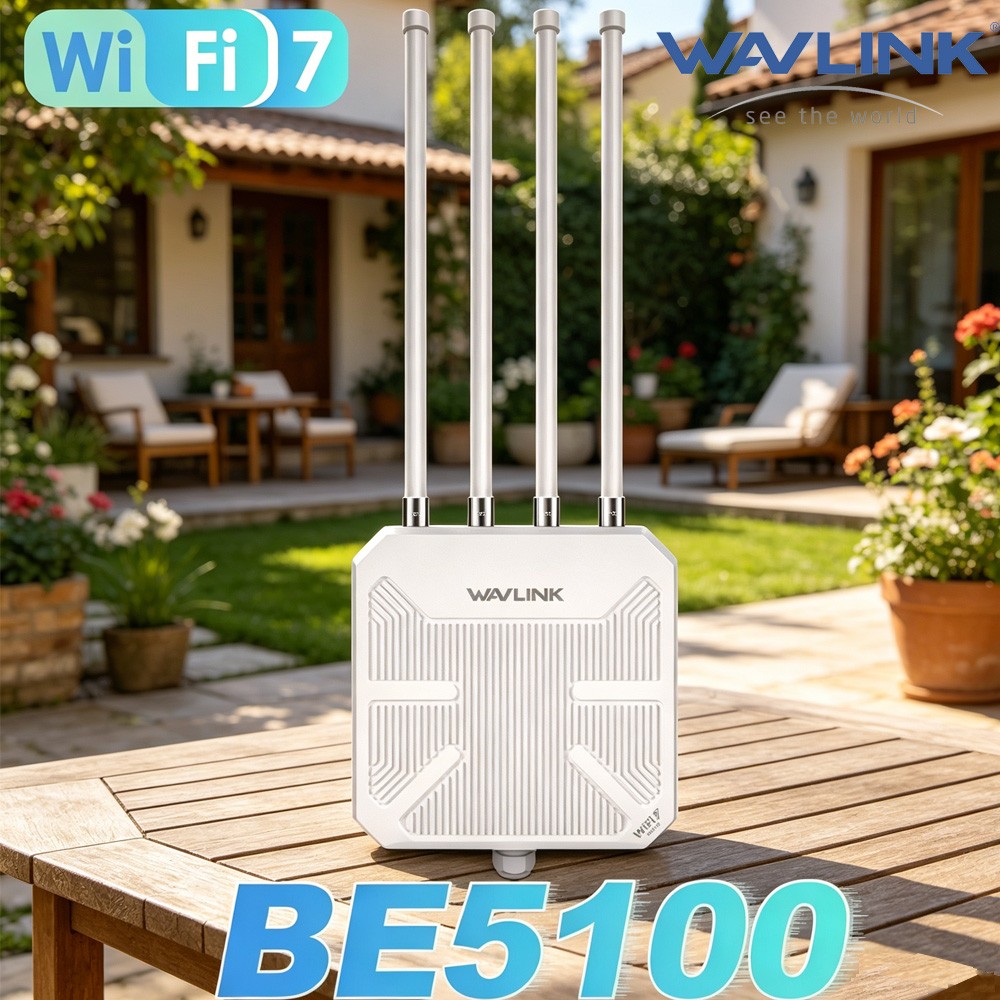

WAVLINK WiFi 7 Outdoor Long Range Router, Dual Band BE5100 Mesh Router, IP67 Waterproof & Dustproof, 15KV ESD & 4KV Lightning Protection, Active & Passive PoE Supported, 8dBi High-Gain Antennas
[Next-Gen Wi-Fi 7 Performance] Experience the future of wireless connectivity with Wi-Fi 7 dual-band technology, delivering blazing speeds of 688Mbps on 2.4GHz and 4323Mbps on 5GHz for a combined throughput up to 5100Mbps. Stream 4K videos without buffering, dominate competitive gaming with near-zero latency, and browse complex websites instantly.
[Strong Environmental Resilience] Engineered for extreme conditions, our IP67-rated waterproof and dustproof enclosure shrugs off torrential rains, dust storms, and debris. Built-in 15KV ESD protection and 4KV lightning surge defense safeguard critical components during electrical storms, ensuring rock-solid stability in coastal areas, industrial sites, or mountainous terrain.
[Flexible Enterprise & Rural Power Options] Deploy anywhere with dual PoE support: Active PoE (802.3at/af) enables plug-and-play installation in high-density environments like hospitals and campuses, while Passive PoE delivers cost-effective, long-range power for rural farms, orchards, and music festivals.
[Expansive Coverage with Intelligent Roaming] Four 8dBi high-gain fiberglass antennas create 360° signal coverage for outdoor areas, while the dedicated 5dBi antenna fills near-ground blind zones. Combined with WAVLINK Everything Mesh, one-click connection creates a unified mesh network.
[Five Adaptive Operation Modes] Transform this router to fit any scenario: router/AP mode converts wired networks to Wi-Fi hotspots; repeater extends weak signals; mesh router/extender creates seamless multi-node systems; and mesh AP integrates with existing infrastructure. Maintain a single network name (SSID) across all modes for effortless scaling.
WiFi 7 Performance
Comes with next-generation WiFi 7 dual-band technology; this router supports super-speed wireless speed up to 5100Mbps, including 4323Mbps on 5GHz and 688Mbps on 2.4GHz.
Weatherproof Design
IP67 waterproof and dustproof, 15KV ESD, and 4KV lightning protection are designed for extreme outdoor environments.
WPA3-SAE Encryption
WPA3-SAE can significantly reduce risks such as network eavesdropping, man-in-the-middle attacks, and data theft.
Active and Passive PoE
Both active and passive PoE are supported. You can install the corresponding PoE converter according to your needs. Passive PoE converter included.
Fiberglass Tube High Gain Antennas
4 x 8 dBi omnidirectional antennas are covered by strong fiberglass tubes, expanding signal coverage and withstanding harsh conditions, providing superior WiFi performance and longer service life.
Feature
Frequency: dual-band 2.4GHz@688Mbps+5GHz@4323Mbps, speed up to 5100Mbps.
Ethernet port: 1x2.5G WAN/LAN.
Antennas: 4x8dBi + 1x5dBi high-gain antennas.
Operation modes: mesh AP, AP, repeater, mesh router, and mesh extender.
Security: WPA3-SAE/WPA2-PSK, WPA2-PSK, WPA PSK/WPA2PSK-MIX.
Power adapter: 100-240V/50-60Hz; DC 54V (Passive PoE); DC 48V (Active PoE).
IP 67 waterproof, 15KV ESD, and 4KV lightning protection.
Complies with IEEE 802.11 be/ax/ac/a/n/g/b standards.
Supports 802.3 AT/AF PoE and Passive PoE to supply power.
Warm Tips
① The PoE converter is not waterproof; please install it indoors.
② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100 m/328 ft.
③ Please install the product 2–3 meters above the ground for better performance.
④ Under the mesh mode, WN573HBE2 supports interconnection with WN586X3, WN572HP3 (*Latest firmware required), and WN573HBE2.
Packing List
-1 x BE5100 WiFi7 Outdoor AP
-1 x 54V Power Adapter
-1 x PoE Converter
-1 x Ethernet Cable
-1 x Main Body Holder
-4 x Omni Antennas
-2 x Stainless Steel Hose Clamps
-2 x Silicone Pads
-1 x Slotted Screwdriver
-1 x Wrench
-1 x Quick Start Guide
-Several Screws
AX3000 WiFi 6 3km (PtP/PtMP)
【🌐Designed for Harsh Outdoor Conditions】 IP67-rated waterproof housing that ensures continued operation on harsh outdoor environments or in climates of extreme cold, heat or continuous moisture. Lightning protection and weatheproof design ensure stable connection in harsh outdoor conditions. Note: The PoE part of the router is not waterproof.
【🌐Enjoy True WiFi 6 Speed】The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards. Supports dual-band maximum speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding wireless interference & congestion and offering lightning-fast Internet speed. With WAVLINK WN573HP3, you can enjoy HD videos, smooth gaming, etc. even outdoors.
【🌐Optional PoE Power Supply】Supports 802.3AF/AT active PoE and passive PoE, transferring data and charging the product with a single Ethernet cable, so you can install the product outdoors where power outlet is not available. Note: The PoE converter is not waterproof. Please use CAT5E or above cable and the length should not exceed 100m/328ft.
【🌐Seamless WiFi Roaming】The built-in 4x12dBi directional antennas and high-power amplifiers provide extreme WiFi coverage and penetration. Also supports Everything Mesh technology, one-click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.
【🌐Multiple Modes, Flexible Use】Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP mode is ideal for converting wired connections into wireless networks, while under Mesh mode you can enjoy seamless WiFi with a single network name and password.
【🌐3Km Wireless Data Transmission】Specially designed for outdoor uses, ideal for long distance wireless data transmission over 3km/1.9miles(only for paired PtP or PtMP transmission), tested in the barrier-free field. Built-in 12dBi directional antennas can significantly improve the transmission and reception performance of wireless signal.
Specification
- Model: WL-WN573HP3
- Product Size: 24x24x7cm/9.4x9.4x2.8in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight: 1050g/37oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(573Mbps)+5GHz(2402Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 12dBi Directional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green
Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Please install the product 2-3 meters above the ground for better performance.
④Under the mesh mode, WN573HP3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
⑤The real performance of the product may vary in accordance with different environmental conditions.
In the Box
- 1 × AX3000 WiFi 6 Outdoor Access Point
- 1 × 54V Power Adapter
- 4 × Cable Ties
- 1 × PoE Converter
- 2 × Silicone Pads
- 1 × Ethernet Cable
- 1 × Main Body Holder
- 1 × PWM M4×8×8MM Screw
- 1 × Wrench
- 6 × KA M4×25×6MM Screws
- 1 × Quick Start Guide
- 6 × Φ8x25MM Screw Plugs
AX3000 WiFi 6 Up to 300m
WAVLINK WiFi6 Outdoor Access Point, Dual Band 2.4G+5G AX3000 Long Range Outdoor WiFi Mesh Extender with PoE/4x8dBi High-gain Antennas/IP67 Weatherproof Enclosure/Signal Booster Amplifier
Features:
【⭐Designed for Harsh Outdoor Conditions】Equipped with IP67 waterproof enclosure, 15kV ESD protection and 6kV lightning protection, it can work normally in rain/snow/wind/thunder and other bad weather. The fiberglass tube high-gain antennas can not only withstand strong wind and corrosion, but also boost the WiFi coverage, making it more suitable for outdoor use.
【⭐Enjoy True WiFi 6 Speed】The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards. Supports dual-band maximum speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding wireless interference & congestion and offering lightning-fast Internet speed. With WAVLINK WN573HX3, you can enjoy HD videos, smooth gaming, etc. even outdoors.
【⭐Optional PoE Power Supply】Supports 802.3AF/AT active PoE and passive PoE, transferring data and charging the product with a single Ethernet cable, so you can install the product outdoors where power outlet is not available. Note: The PoE converter is not waterproof. Please use CAT5E or above cable and the length should not exceed 100m/328ft.
【⭐Seamless WiFi Roaming】The 4x8dBi omnidirectional antennas and two built-in high-power amplifiers provide extreme WiFi coverage and penetration. Also supports Mesh technology, one-click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.
【⭐Multiple Modes, Flexible Use】Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP Mode is ideal for converting wired connections into wireless networks, while under Mesh mode you can enjoy seamless WiFi with a single network name and password.
Fiberglass Tube High Gain Antennas
4 x 8dBi omnidirectional antennas are covered by strong fiberglass tube, expanding signal coverage and withstanding harsh conditions, providing superior WiFi performance and longer service life.
IP67 Waterproof Enclosure
Equipped with an IP67 enclosure with excellent dustproof and waterproof capabilities, this product can operate normally in rainy days, snowy days, thunderstorms, sandstorms and other severe weather.
PoE Power Supply
Both active and passive PoE are supported. You can install the corresponding PoE converter according to your needs. Passive PoE converter included.
573Mbps on 2.4G & 2402Mbps on 5G
Dual band AX3000 provides smoother online surfing experience and stronger anti-interference capability. 2.4G band is commendable for web browsing and social media use, while 5G band is ideal for video streaming or gaming.
High Power Amplifiers
Dual integrated signal boosters efficiently strengthen the wireless performance. The PA(power amplifier) increases the power output while the LNA(low-noise amplifier) minimizes additional noises and increases the wireless signal.
Advanced WiFi Safeguard
WPA2-PSK & WPA2/WPA3-MIX wireless security protocols are supported, fully protecting your private information and keeping your WiFi connection secure at all times.
Specification
- Model: WL-WN573HX3
- Product Size(without antennas): 24x24x7cm/9.4x9.4x2.8in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Antennas - 40cm/15.7in; Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight(without antennas): 1109g/39.1oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(573Mbps)+5GHz(2402Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 8dBi Omnidirectional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green
Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Please install the product 2-3 meters above the ground for better performance.
④Under the mesh mode, WN573HX3 supports interconnection with WN586X3, WN572HP3(*Latest firmware required) and WN573HX3.
In the Box
1 x AX3000WiFi 6 Outdoor Access Point
4 x Omni Antennas
4 x Cable Ties
1 x Ethernet Cable Connectors
1 x Quick Installation
1 x Wrench
2 x Silicone Pads
Several Screws
Passive PoE(Optional):
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet Cable
WAVLINK WiFi6 Outdoor Access Point, Dual Band 2.4G+5G AX3000 Long Range Outdoor WiFi Mesh Extender with PoE/6x7dBi High-gain Antennas/IP67 Weatherproof Enclosure/Signal Booster Amplifier
【🌐Designed for Harsh Outdoor Conditions】 IP67-rated waterproof housing that ensures continued operation on harsh outdoor environments or in climates of extreme cold, heat or continuous moisture. Lightning protection and weatheproof design ensure stable connection in harsh outdoor conditions. Note: The PoE part of the router is not waterproof.
【🌐Enjoy True WiFi 6 Speed】The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards. Supports dual-band maximum speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding wireless interference & congestion and offering lightning-fast Internet speed. With WAVLINK WN588HX3, you can enjoy HD videos, smooth gaming, etc. even outdoors.
【🌐Seamless WiFi Roaming】The 6x7dBi omni-directional antennas and high-power amplifiers provide extreme WiFi coverage and penetration. Also supports Everything Mesh technology, one-click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.
【🌐Multiple Modes, Flexible Use】Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP mode is ideal for converting wired connections into wireless networks, while under Mesh mode you can enjoy seamless WiFi with a single network name and password.
【🌐Powered by PoE and Flexible Installation】Supporting 802.3af/802.3at/48V PoE Power over Ethernet with the included PoE adapter, this device offers flexible deployment and convenient installation with its mounting bracket design. It can be easily mounted on poles or walls.
Specification
- Model: WL-WN588HX3
- Product Size: 17x17.3x5.1cm/6.7x6.8x2in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight: 552g/19.5oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(573Mbps)+5GHz(2402Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 6 x 7dBi Directional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green
Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Under the mesh mode, WN588HX3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
④The real performance of the product may vary in accordance with different environmental conditions.
In the Box
- 1 × AX3000 WiFi 6 Outdoor Access Point
- 4 × Plastic Cable Ties
- 1 × Main Body Holder
- 6 x 7dBi Antennas
- 1 × Wrench
- 1 × 54V Power Adapter
- 1 × PoE Converter
- 1 × Ethernet Cable
- 1 × PWM M3×5×6MM Screw
- 6 × KA M3×20×5.2MM Screws
- 6 × Φ6.5x25MM Screw Plugs
- 1 × Quick Start Guide
WAVLINK AC1200 Wi-Fi 5 Outdoor Access Point, Long-Range Weatherproof Dual-Band Wi-Fi Extender with 4 x 7dBi Omni Antennas, PoE, Gigabit Port, Supports AP/Repeater/Mesh Modes for Courtyard, Fish Finder
[Upgrade to Wi-Fi 5]Dual Band AC1200 offers faster data transfer speeds with 2.4GHz@300Mbps and 5GHz@867Mbps. Compliant with IEEE 802.11ac/a/n/g/b standards. Enhanced with MU-MIMO, Beamforming, reducing interference for stable, wider coverage, and increased device connectivity.
[Expand Coverage Area]Equipped with 4 x 7dBi Omni detachable antennas, it features up to 1000MW power and built-in high-power amplifier PA+LNA. Capable of receiving existing 2.4GHz and 5GHz wireless signals, extending the range of the router or access point up to 300 meters.
[Professional Outdoor Design]Indoor/Outdoor use, supports wall/pole mount; robust IP67 weatherproof casing with grounding terminal; offers 15KV ESD protection, 6KV lightning protection; withstands -20ºC to 50ºC temperature range, ensuring stable operation in various weather conditions.
[Flexible Mode Selection]AP/Repeater/Router mode: Connects to most wireless signals, including Starlink. Mesh mode allows seamless home roaming with a single SSID/password setup, pairs easily with one touch. Also compatible with Wavlink AC controller for unified management in large networks.
[Powered by PoE]Supports 802.3AT/AR Active PoE and Passive PoE for flexible deployment by integrating power and network data over a single cable, simplifying outdoor Wi-Fi access point setup, making it convenient to install devices in locations without power source.
Warm Tips:
1.When setting up a mesh network, please note that the WL-WN588HA2 supports a maximum of 8 devices for networking (including the main router). It is only compatible with devices from the same brand """"Wavlink"""" that support Everything Mesh; other devices are not supported.
2.The access point cannot act as a repeater for wireless signals with enforced captive portal.
3.For optimal performance, choose open and unobstructed locations, avoiding obstacles like walls, doors, aquariums, trees, and other barriers as much as possible.
4.All Wi-Fi extenders are designed to expand or enhance Wi-Fi coverage range, rather than directly increase speed.
5.PoE converter is not waterproof and should be used indoors or in a sheltered environment.
Specification:
Model: WL-WN588HA2 (AERIAL HD8S)
Port: 1 x WAN/LAN Gigabit Port
Button: 1 x Pair/Reset Button
Product Size: 17.0x5.6x17.0cm/6.7x2.2x6.7in
PoE Converter Size: 3.7x2.2x4.3cm/1.5x0.9x1.7in
Ethernet Cable: 100cm/39.4in (CAT 5E)
Power Adapter Cable Length: 125cm/49.2in
Standard: IEEE 802.11ac/a/n/g/b
Frequency Band/Speed: 2.4GHz@300Mbps, 5GHz@867Mbps
Wireless Security: OPEN, WPA2-PSK, WPA/WPA2 MIX, WPA3-SAE/WPA2-PSK, WPA/WPA2-Enterprise
Antennas: 4 x 7dBi Omni Antennas (RP-SMA)
Status LED: Blue
PoE Converter Status LED: Green
PoE Converter Support: DC 54V/0.3A Power over Ethernet (Passive), DC 48V Power over Ethernet (Active)

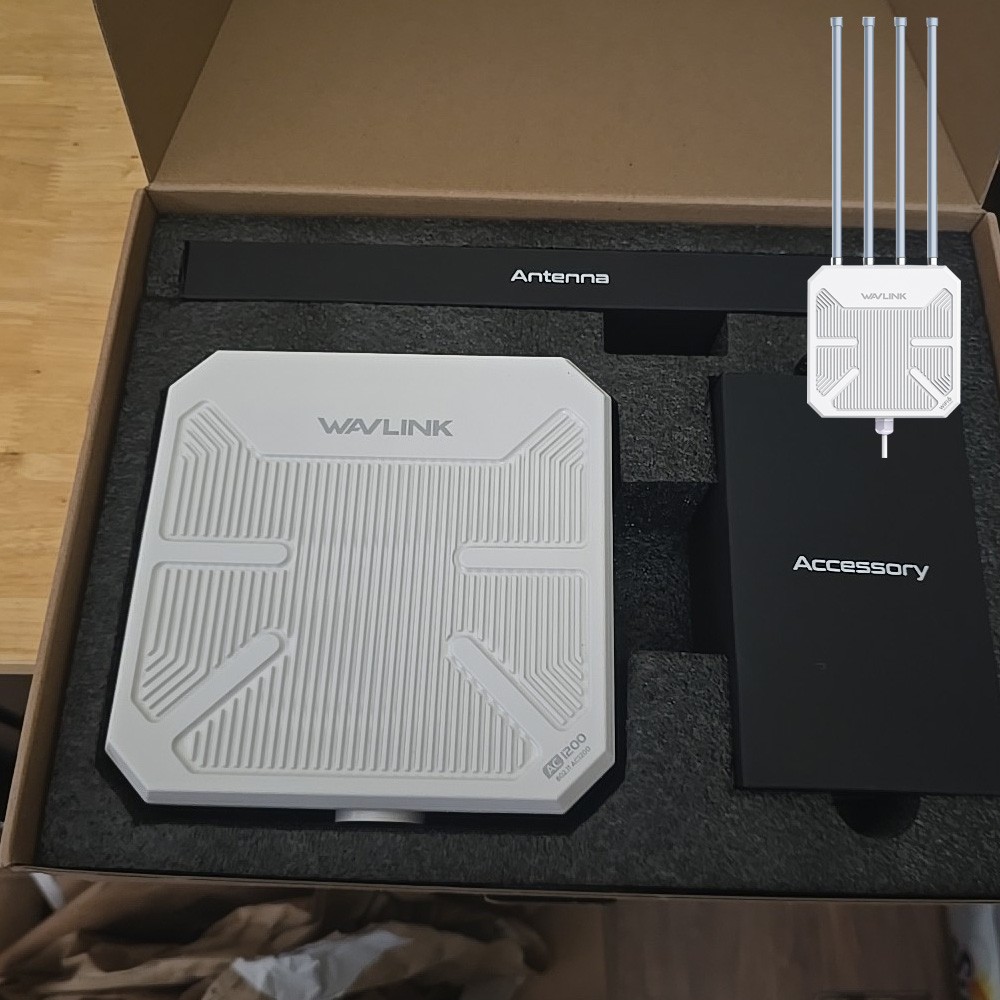

In the Box：
1 x ACI200 Wi-Fi 5 Outdoor Access Point
4 x Plastic Cable Ties
1 x Main Body Holder
4 x 7dBi Antennas
1 x Wrench
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet Cable
1 x PWM M3x5x6MM Screw
6 x KA M3x20x5.2MM Screws
6 x Φ6.5x25MM Screw Plugs
1 x Quick Start Guide
WAVLINK AC1200 Dual Band Outdoor Access Point, Outdoor Long Range Wi-Fi Extender with Active/Passive PoE, WAN/LAN Port, IP67 Waterproof, Supports AP/Router/Repeater Modes, 2x7dBi High-Gain Antennas
*AC1200 Dual-Band Range Extender: With Wi-Fi 5 technology at its core, the WAVLINK outdoor AP keeps you connected in stride with speeds reaching up to 1200Mbps. Ideal for smooth HD streaming, online gaming, and bandwidth-heavy activities. Whether you're in the yard, by the pool, or in a parking lot, relish dependable Wi-Fi 5 connectivity wherever you are.
*Power Over Ethernet: Integrated Power over Ethernet (PoE) enables power and network data connections to be consolidated into a single RJ-45 cable, allowing installation in areas without power outlets. It is equipped with passive PoE and also supports active PoE. You can use and connect your own active switch.
*IP67 Rated Weatherproof Case: The IP67-rated weatherproof and heat-resistant enclosure ensures continued operation in harsh outdoor environments, including extremely cold, hot or constantly humid climates. It can withstand a wide range of humidity and temperature (-10°C to 50°C or -14°F to 122°F), and has 15KV ESD and 6KV lightning protection.
*Multiple Working Modes: It supports four working modes. The repeater mode extends the Wi-Fi coverage of an existing wireless network. Router mode creates an instant private wireless network, enabling multiple devices to share it. AP mode converts a wired network to a wireless one. AP+Repeater mode extends the range of a wireless network by using a repeater to amplify and relay the signal from an access point.
*Outdoor Access Point: Providing ultra-fast networking speed of 300Mbps over 2.4G band and 867Mbps over 5G band, the outdoor Wi-Fi repeater has a maximum coverage range of 200 meters, supports up to 32 devices. Simple settings enable wireless optimization to improve the quality and effectiveness of link transmission. (Coverage may vary based on the actual environment.)
Warm Tips
1.The PoE converter is not waterproof, please install it indoors.
2.Please make sure your Ethernet cable to the outdoor router is CAT5E or above certified and shorter than 100m/328ft.
3.Please install the product 2-3 meters above the ground for better performance.
Specification
1.Model: WL-WN570HA2
2.Ports: 1 x WAN/LAN 100Mbps
3.Button: 1 x Reset(8s); Status LED: 1 x Power, 1xWAN/LAN, 1 x WiFi , 3 x Signal
4.Power Supply: DC 54V/0.3A Power over Ethernet(Passive), DC 48V Power over Ethernet(Active)
5.Wireless Standard: IEEE 802.11 a/b/g/n/ac
6.Frequency Band/Speed: 2.4GHz(300Mbps), 5GHz(867Mbps)
7.Antenna: 2 x 7dBi Omni Directional Antennas
8.Wireless Security: WPA-PSK/WPA2-PSK encryption
9.Unit Size(without antennas): 18cm x 5cm x 5cm/ 7.1in x 2in x 2in (L x W x H ); Antenna Length: 25cm/9.8in
10.Ethernet Cable Length: 100cm/39.4in
11.Power Adapter Cable Length: 120cm/47in
12.Operating Temperature: -10°C~50°C(-14°F~122°F)
13.Storage Temperature: -30°C~70°C(-22°F~158°F)
14.Distance:Outdoor 200m(Change with the Actual Environment)
In the Box
1x AC1200 Dual Band Access Point
2x 7dBi High-gain Antennas
1x RJ-45 Ethernet Cable
1x Power Adapter
1x PoE Converter
1x Main Body Holder
2x Cable Ties
1x Screw Fitting Kit
1x Quick Start Guide
AC1200 WiFi 5 Approx. 200m(Hot sale)
WAVLINK AC1200 High Power Outdoor Weatherproof WiFi Range Extender/Wireless Access Point/mesh agent with Passive POE, Dual Band 2.4GHz 300Mbps+5.8 GHz 867Mbps, 4x7dBi Detachable Omni Directional Antennas, Mesh Technology Supported, No WiFi Dead Zones for Working from Home
Features:
[AC 1200 Dual-Band & Upgraded Chip & Easy Mesh Technology Supported]: The next generation of Wi-Fi, complies with IEEE 802 11 ac/a/b/g/n standards. Dual-Band maximum speed up to 5GHz 867Mbps and 2.4GHz 300Mbps, an upgraded version of AC1200(1200Mbps); With a brand-new chip MT7621A and Easy Mesh supported, it lets you keep more devices(64~96) connected simultaneously with the dual bands and enables Wavlink mesh router/AP/repeater to work together, which is superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.
[Multiple Operation Modes & Power Over Ethernet & Dual Gigabit Ethernet Ports]: WL-WN572HP3 supports Mesh Extender Mode, Access Point (AP) Mode, and Repeater Mode. Integrated Power over Ethernet (PoE) supported, allowing it to be installed in areas where power outlet is not available by combing your power and network data connection into a single RJ-45 cable; Dual Gigabit (1000Mbps) LAN/WAN Ethernet Ports---support 10/100/1000Mbps speeds, 10x faster than a standard Ethernet port, giving you an excellent network speed experience.
[Design for Harsh Outdoor Environment & Strengthening Waterproof Version]: IP65-rated weatherproof & heat-resistant case that ensures continued operation on harsh outdoor environments or in climates of extreme cold, heat or continuous moisture, withstanding broad ranges of humidity and temperature (-30°C~70°C) (-22°F~158°F); 15KV ESD, 4KV lightning protection, ensure stable connection in harsh outdoor conditions. The key parts have been coated with waterproof glue to strictly avoid leakage phenomenon of the product. Note: The PoE part of the router is not waterproof.
[4 x 7dBi Detachable Omni Directional Antennas & Outstanding Function]: Higher antenna gain extensively strengthens Wi-Fi signal and expands wider coverage in the open air, stability technology automatically avoids channel conflicts using its channel selection feature, meet outdoor long range coverage wireless network requirement, cover hard-to-reach dead zones. High Power Amplifiers PA 800mW and enhanced receiver design for more strong penetration & longer range coverage than the general access point, ideal for providing Wi-Fi service in big area such as factory, community, street or etc.
[What You Get]: All Wavlink products come with a high-quality after-sale service. Please feel free to contact us anytime if you have any question, we will do our best to help you. In the Box: AC 1200 Dual Band Outdoor Ap/Range Extender, 2x 2.4 G Omni Antennas, 2x 5G Omni Antennas, 1x RJ 45 Networking Cable, 1x Power Adapter, 1x PoE Converter, 1x Main Body Holder, 2x Cable Ties, 1x Screw Fitting Kit, 1x Quick Start Guide. 12-month worry free warranty( extra 6 months for registered members) and life-long technical support.
Specification:
Frequency: 2.4GHz & 5GHz, speed up to 1,200 Mbps
Interfaces: 1x 10/100/1,000Mbps LAN; 1x 10/100/1,000Mbps WAN
Antennas: 4x 7dBi omni Antennas
Operation modes: Repeater, AP, Mesh Extender
Weatherproof case: 15KV ESD and 4KV Lightning Protection
Security: WPA2-PSK,WPA 2/ WPA 3 Mix
LEDs: 7x Status LED Indicators
Power adapter: 100~ 240V/50~60Hz; DC 24V (Passive PoE)
What's in the box:
1x AC 1200 Dual Band Outdoor Ap/Range Extender
2x 2.4 G Omni Antennas
2x 5G Omni Antennas
1x RJ 45 Networking Cable
1x Power Adapter
1x PoE Converter
1x Main Body Holder
2x Cable Ties
1x Screw Fitting Kit
1x Quick Start Guide
Features:
【⭐Designed for Harsh Outdoor Conditions】Equipped with IP67 waterproof enclosure, 15kV ESD protection and 6kV lightning protection, it can work normally in rain/snow/wind/thunder and other bad weather. The fiberglass tube high-gain antennas can not only withstand strong wind and corrosion, but also boost the WiFi coverage, making it more suitable for outdoor use.
【⭐Enjoy True WiFi 6 Speed】The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards. Supports dual-band maximum speed up to 5GHz 867Mbps and 2.4GHz 300Mbps, avoiding wireless interference & congestion and offering lightning-fast Internet speed. With WAVLINK WN573HX1, you can enjoy HD videos, smooth gaming, etc. even outdoors.
【⭐Optional PoE Power Supply】Supports 802.3AF/AT active PoE and passive PoE, transferring data and charging the product with a single Ethernet cable, so you can install the product outdoors where power outlet is not available. Note: The PoE converter is not waterproof. Please use CAT5E or above cable and the length should not exceed 100m/328ft.
【⭐Seamless WiFi Roaming】The 4x8dBi omnidirectional antennas and two built-in high-power amplifiers provide extreme WiFi coverage and penetration. Also supports Mesh technology, one-click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.
【⭐Multiple Modes, Flexible Use】Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP Mode is ideal for converting wired connections into wireless networks, while under Mesh Mode you can enjoy seamless WiFi with a single network name and password.
Specification
- Model: WL-WN573HX1
- Product Size(without antennas): 24x24x7cm/9.4x9.4x2.8in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Antennas - 40cm/15.7in; Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight(without antennas): 1109g/39.1oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(574Mbps)+5GHz(1201Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 8dBi Omnidirectional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green
Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Please install the product 2-3 meters above the ground for better performance.
④Under the mesh mode, WN573HX1 ONLY supports interconnection with WN531AX2, WN583AX1 and WN573HX1.
In the Box
1 x Wi-Fi6 Outdoor Mesh Router/AP/Repeater
4 x Omni Antennas
4 x Cable Ties
1 x Ethernet Cable Connectors
1 x Quick Installation
1 x Wrench
2 x Silicone Pads
Several Screws
Passive PoE:
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet Cable
