WAVLINK Outdoor WiFi 6 Extender AX3000 Router Long Range for Patio/Farm/Yard/RV

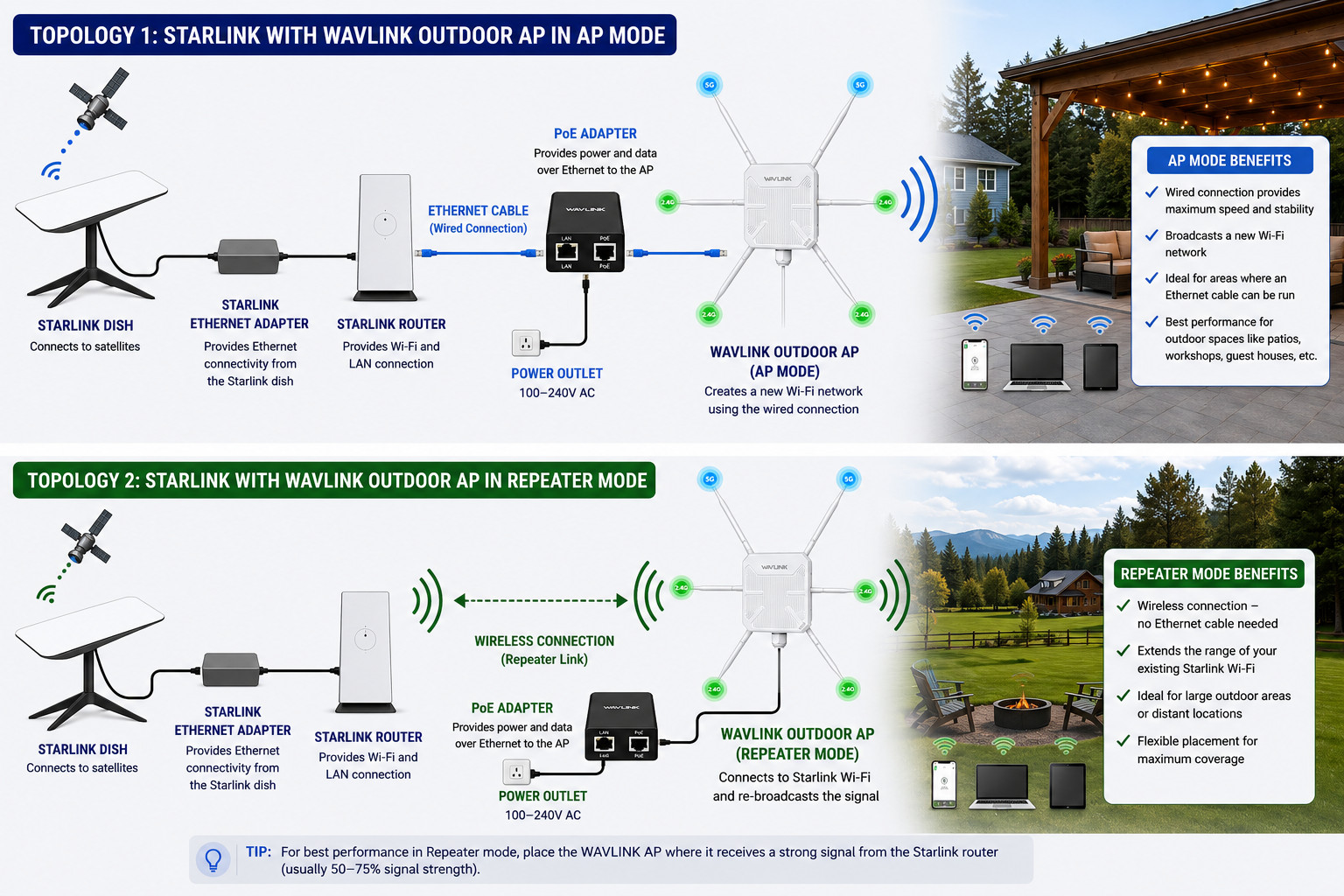

Multiple Modes, Flexible Use
Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP Mode is ideal for converting wired connections into wireless networks, while under Mesh mode you can enjoy seamless WiFi with a single network name and password.

Ultra‑Fast True WiFi6 Speeds
Designed with the latest wireless Wi‑Fi 6 technology featuring up to 600mW of power and an enhanced receiver, Up to 256 devices. The next generation of WiFi, complies with IEEE 802.11 ax/ac/a/n/g/b standards. Supports dual‑band maximum speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding wireless interference & congestion and offering lightning‑fast Internet speed. With WAVLINK WN573HX3, you can enjoy HD videos, smooth gaming, etc. even outdoors.

Designed for Harsh Outdoor Conditions
Equipped with IP67 waterproof enclosure, 15kV ESD protection and 6kV lightning protection, it can work normally in rain/snow/wind/thunder and other bad weather. The fiberglass tube high‑gain antennas can not only withstand strong wind and corrosion, but also boost the WiFi coverage, making it more suitable for outdoor use.

Optional PoE Power Supply
Supports 802.3AF/AT active PoE and passive PoE, transferring data and charging the product with a single Ethernet cable, so you can install the product outdoors where power outlet is not available. Note: The PoE converter is not waterproof. Please use CAT5E or above cable and the length should not exceed 100m/328ft.

Seamless WiFi Roaming
The 4×8dBi omnidirectional antennas and two built‑in high‑power amplifiers provide extreme WiFi coverage and penetration. Also supports Mesh technology, one‑click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.

Specification
- Model: WL‑WN573HX3
- Product Size without antennas: 24×24×7cm / 9.4×9.4×2.8in
- PoE Converter Size: 4.4×3.7×2.2cm / 1.7×1.5×0.9in
- Length: Antennas - 40cm/15.7in; Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight without antennas: 1109g / 39.1oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b

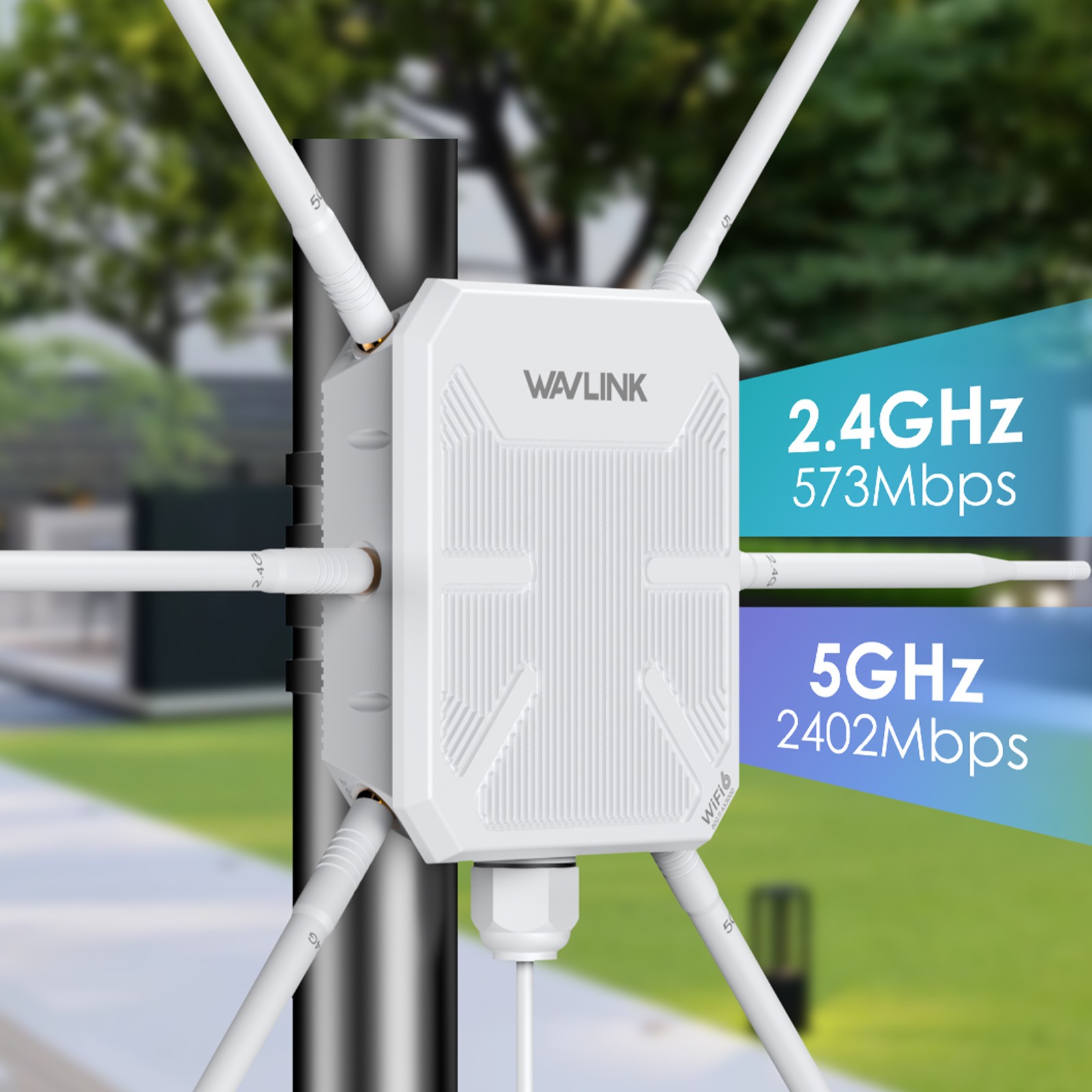

- Frequency Band/Speed: 2.4GHz 573Mbps + 5GHz 2402Mbps
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 × 8dBi Omnidirectional Antennas
- PAIR/RESET LED: Blue; PoE Converter Status LED: Green

In the Box
1 × AX3000 WiFi 6 Outdoor Access Point
4 × Omni Antennas
4 × Cable Ties
1 × Ethernet Cable Connectors
1 × Quick Installation
1 × Wrench
2 × Silicone Pads
Several Screws
Passive PoE Optional:
1 × 54V Power Adapter
1 × PoE Converter
1 × Ethernet Cable

Warm Tips
① The PoE converter is not waterproof, please install it indoors.
② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③ Please install the product 2‑3 meters above the ground for better performance.
④ Under the mesh mode, WN573HX3 supports interconnection with WN586X3, WN572HP3 latest firmware required and WN573HX3.

Built to Withstand the Elements
IP67‑rated waterproof housing that ensures continued operation on harsh outdoor environments or in climates of extreme cold, heat or continuous moisture. With lightning protection and a weatherproof design, you can trust that your connection will remain stable and secure. Note: The PoE part of the router is not waterproof.

Enjoy True WiFi 6 Speed
Experience the future of wireless connectivity with next‑generation WiFi 6 technology, complying with IEEE 802.11 ac/a/b/g/n standards. Enjoy dual‑band speeds of up to 5GHz 2402Mbps and 2.4GHz 573Mbps, perfect for seamless HD video streaming, online gaming, and more, even in outdoor environments.

Convenient PoE Power Supply
This WiFi6 router supports both 802.3AF/AT active PoE and passive PoE, allowing you to transfer data and power the device with a single Ethernet cable. This feature makes it easy to install the router in outdoor locations where power outlets are scarce. Please note that the PoE converter is not waterproof, and we recommend using CAT5E or above cables with a maximum length of 100m/328ft.

Seamless WiFi Coverage
Built‑in 4×12dBi directional antennas and high‑power amplifiers provide exceptional WiFi coverage and penetration. With Everything Mesh technology, you can easily connect multiple devices and expand your WiFi network, eliminating dead zones and ensuring a stable connection throughout your outdoor space.

Versatile Modes for Flexible Use
Our router supports a range of modes, including Mesh, AP, Router, Repeater, AP+Repeater, and more, to meet your unique needs and adapt to various outdoor connection scenarios. Whether you need to convert wired connections to wireless networks or enjoy seamless WiFi with a single network name and password, our router has got you covered.

Long‑Range Wireless Data Transmission
Specifically designed for outdoor use, AX3000 WiFi6 Extender can transmit wireless data over distances of up to 3km/1.9 miles in paired PtP or PtMP transmission, making it ideal for applications that require reliable long‑range connectivity. Built‑in 12dBi directional antennas significantly improve transmission and reception performance, ensuring a stable and secure connection even in challenging outdoor environments.

Specification
- Model: WL‑WN573HP3
- Product Size: 24×24×7cm / 9.4×9.4×2.8in
- PoE Converter Size: 4.4×3.7×2.2cm / 1.7×1.5×0.9in
- Length: Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight: 1050g / 37oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz 573Mbps + 5GHz 2402Mbps
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 × 12dBi Directional Antennas
- PAIR/RESET LED: Blue; PoE Converter Status LED: Green

In the Box
- 1 × AX3000 WiFi 6 Outdoor Access Point
- 1 × 54V Power Adapter
- 4 × Cable Ties
- 1 × PoE Converter
- 2 × Silicone Pads
- 1 × Ethernet Cable
- 1 × Main Body Holder
- 1 × PWM M4×8×8MM Screw
- 1 × Wrench
- 6 × KA M4×25×6MM Screws
- 1 × Quick Start Guide
- 6 × Φ8x25MM Screw Plugs

Warm Tips
① The PoE converter is not waterproof, please install it indoors.
② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③ Please install the product 2‑3 meters above the ground for better performance.
④ Under the mesh mode, WN573HP3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
⑤ The real performance of the product may vary in accordance with different environmental conditions.

Designed for Harsh Outdoor Conditions
IP67‑rated waterproof housing that ensures continued operation on harsh outdoor environments or in climates of extreme cold, heat or continuous moisture. Lightning protection and weatherproof design ensure stable connection in harsh outdoor conditions. Note: The PoE part of the router is not waterproof.

Blazing‑Fast WiFi 6 Speeds – Next‑Gen Connectivity
The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards. Supports dual‑band maximum speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding wireless interference & congestion and offering lightning‑fast Internet speed. With WAVLINK WN588HX3, you can enjoy HD videos, smooth gaming, etc. even outdoors.

Seamless WiFi Roaming – Eliminate Dead Zones for Good
The 6×7dBi omnidirectional antennas and high‑power amplifiers provide extreme WiFi coverage and penetration. Also supports Everything Mesh technology, one‑click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.

Versatile 5‑in‑1 Modes and More for Every Need
Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP mode is ideal for converting wired connections into wireless networks, while under Mesh mode you can enjoy seamless WiFi with a single network name and password.

Powered by PoE and Flexible Installation
Supporting 802.3af/802.3at/48V PoE Power over Ethernet with the included PoE adapter, this device offers flexible deployment and convenient installation with its mounting bracket design. It can be easily mounted on poles or walls.

Specification
- Model: WL‑WN588HX3
- Product Size: 17×17.3×5.1cm / 6.7×6.8×2in
- PoE Converter Size: 4.4×3.7×2.2cm / 1.7×1.5×0.9in
- Length: Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight: 552g / 19.5oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz 573Mbps + 5GHz 2402Mbps
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 6 × 7dBi Omnidirectional Antennas
- PAIR/RESET LED: Blue; PoE Converter Status LED: Green

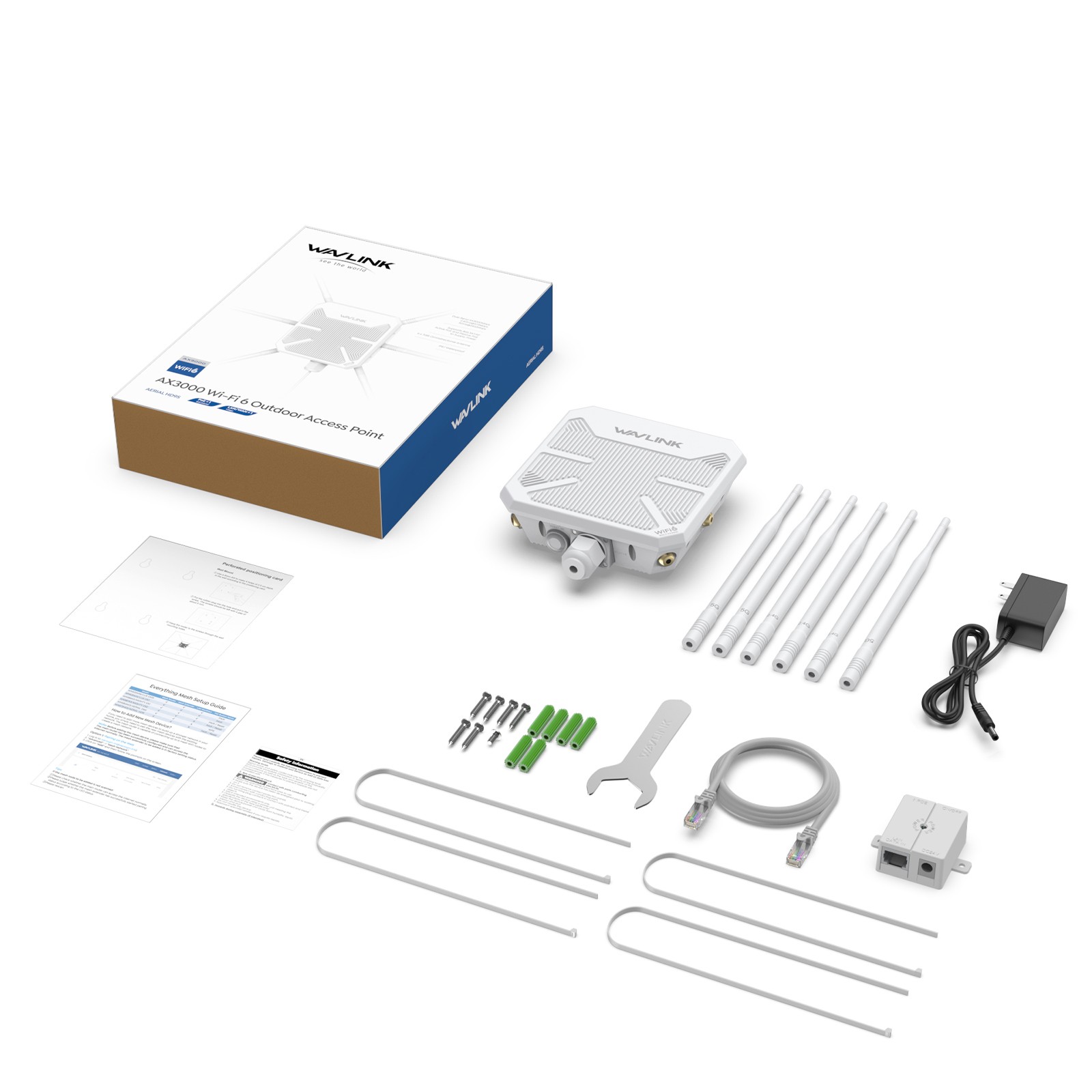

In the Box
- 1 × AX3000 WiFi 6 Outdoor Access Point
- 4 × Plastic Cable Ties
- 1 × Main Body Holder
- 6 × 7dBi Antennas
- 1 × Wrench
- 1 × 54V Power Adapter
- 1 × PoE Converter
- 1 × Ethernet Cable
- 1 × PWM M3×5×6MM Screw
- 6 × KA M3×20×5.2MM Screws
- 6 × Φ6.5x25MM Screw Plugs
- 1 × Quick Start Guide

Warm Tips
① The PoE converter is not waterproof, please install it indoors.
② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③ Under the mesh mode, WN588HX3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
④ The real performance of the product may vary in accordance with different environmental conditions.
