✅ US Dental Locator Overdenture Abutment & Accessories (Classic Type)

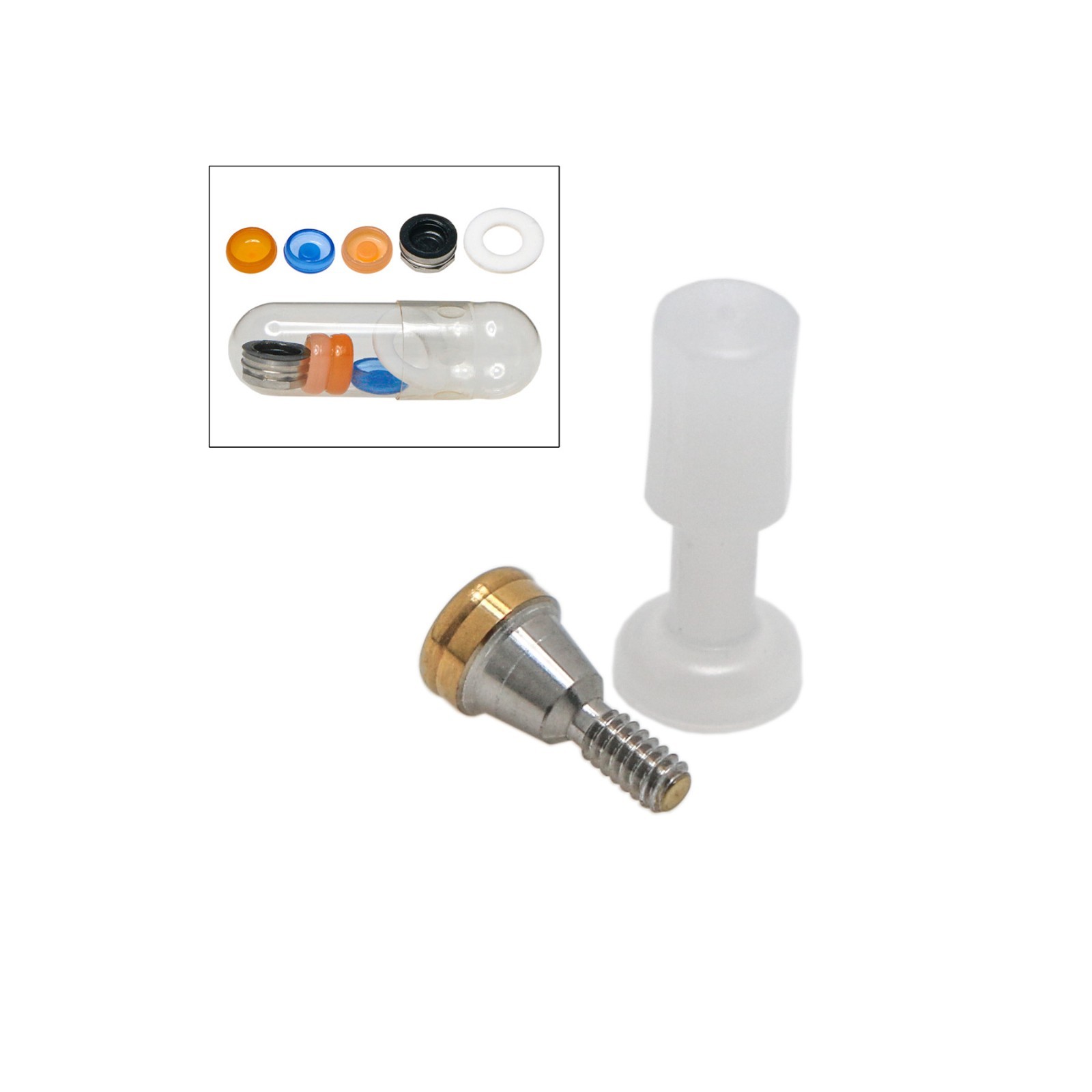

🌟 1. Locator Male Caps Inserts & Kits (PEEK Material)

Model Options

• Locator Replace Male Cap Inserts – 0.8lbs (Yellow)

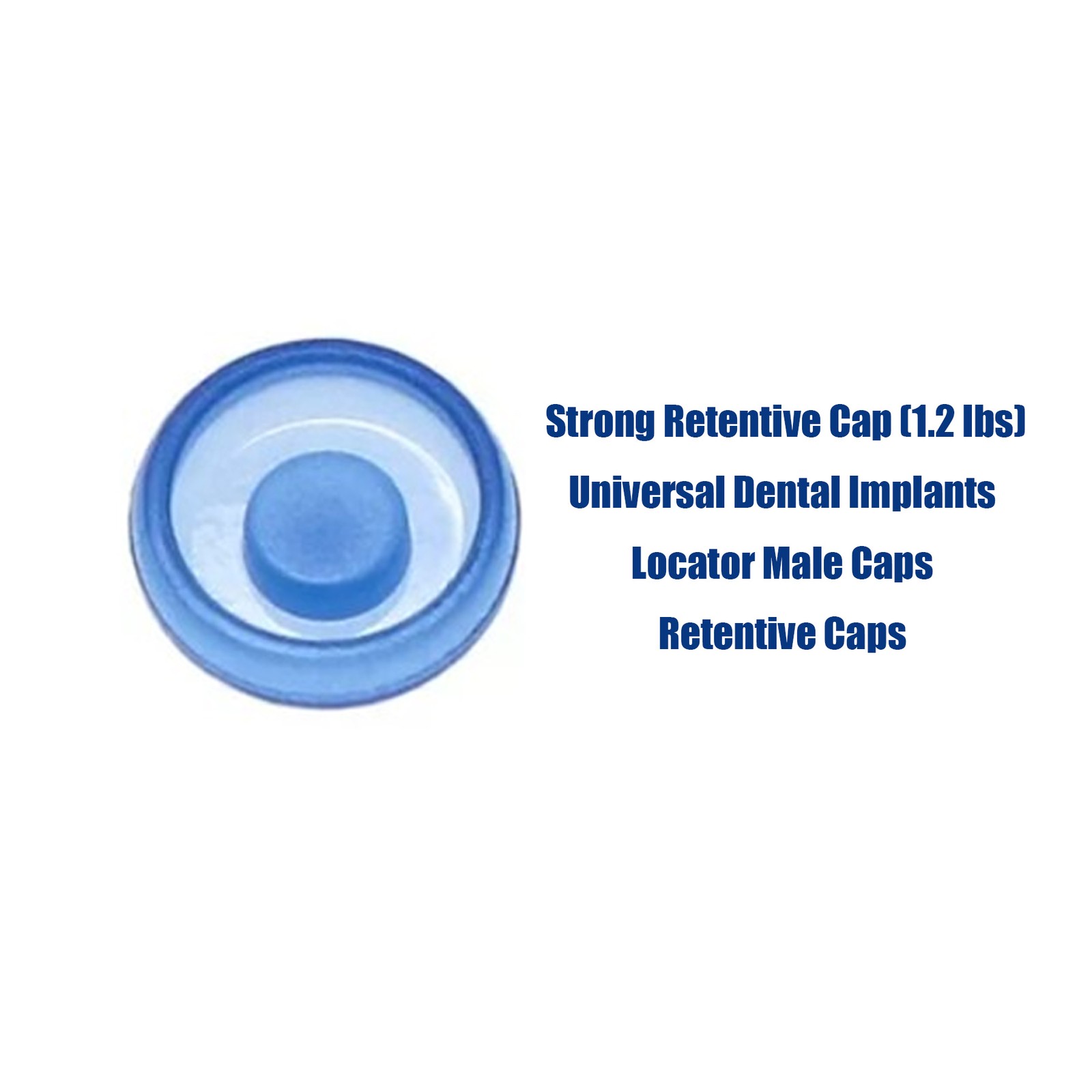

• Locator Replace Male Cap Inserts – 1.2lbs (Blue)

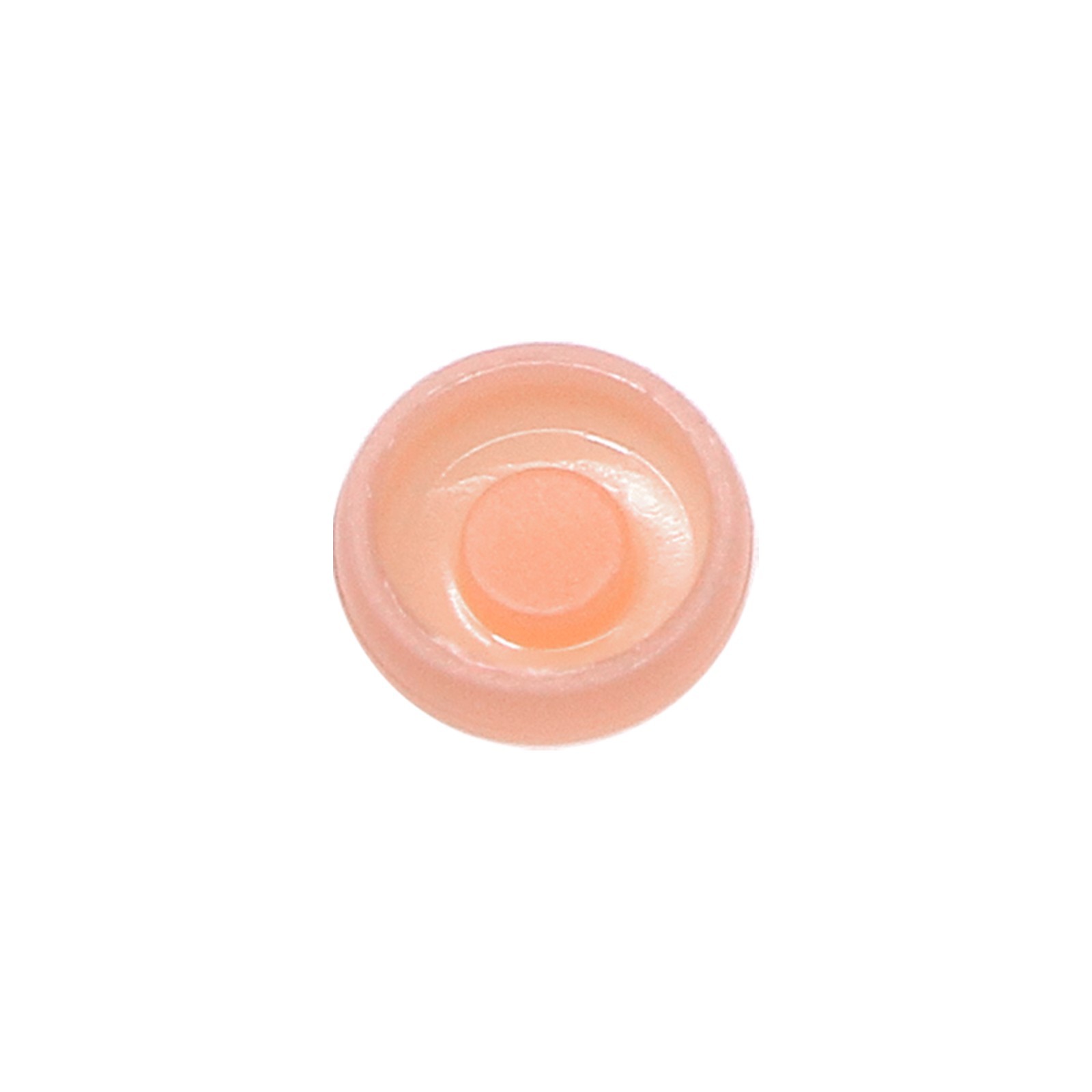

• Locator Replace Male Cap Inserts – 2.4lbs (Pink)

• Locator Replace Male Cap Inserts – Lab Use (Black)

• Locator Metal Housing & Lab Cap Assembly

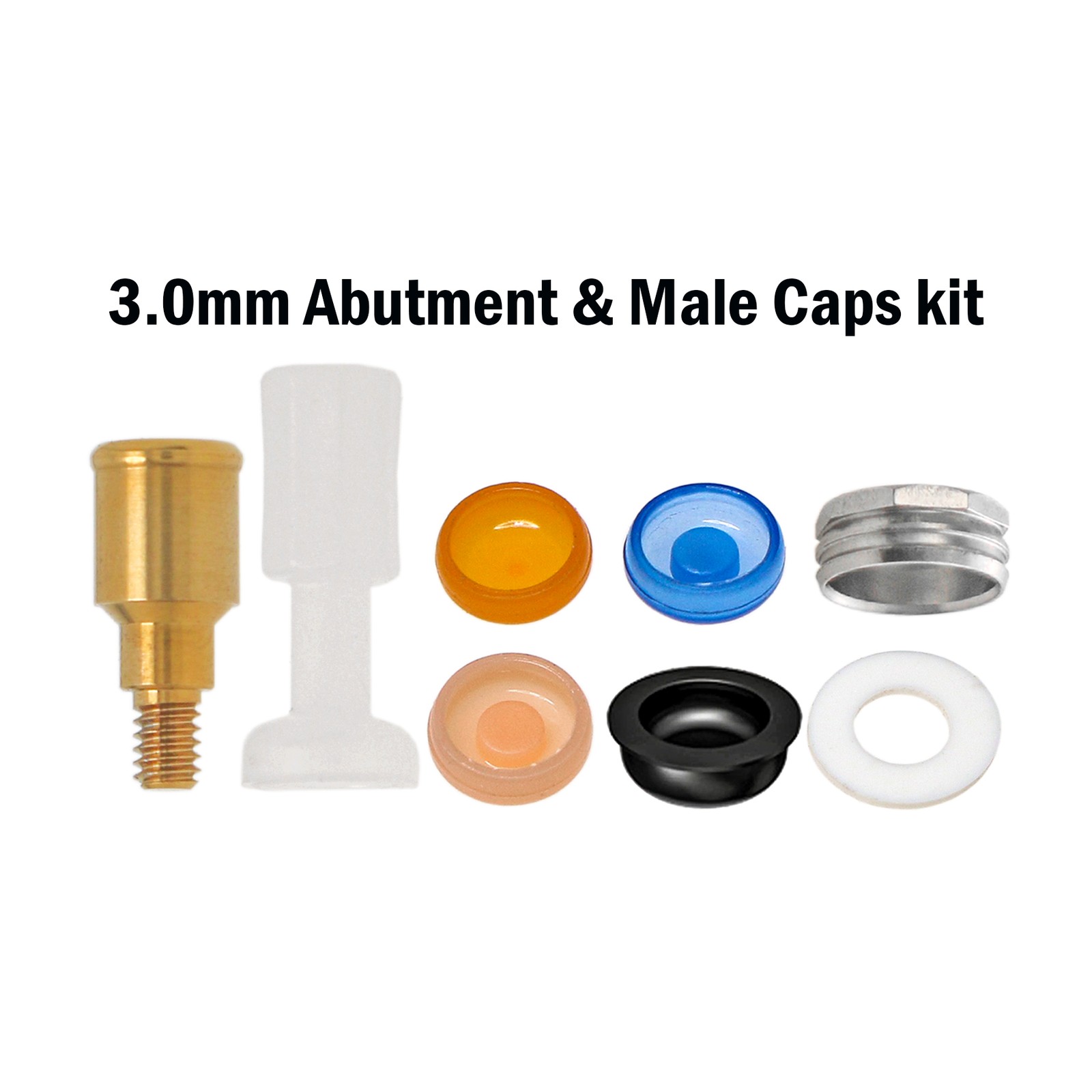

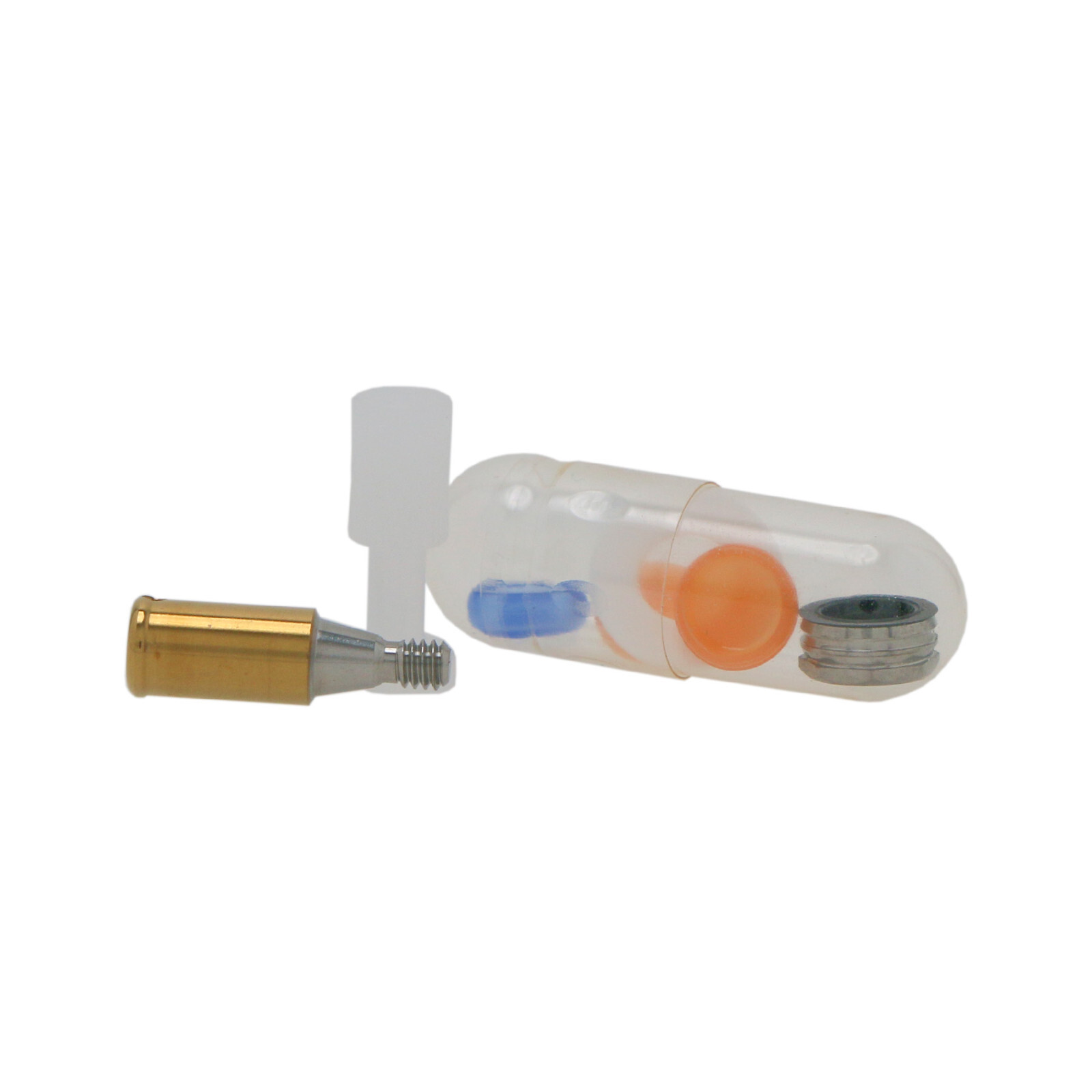

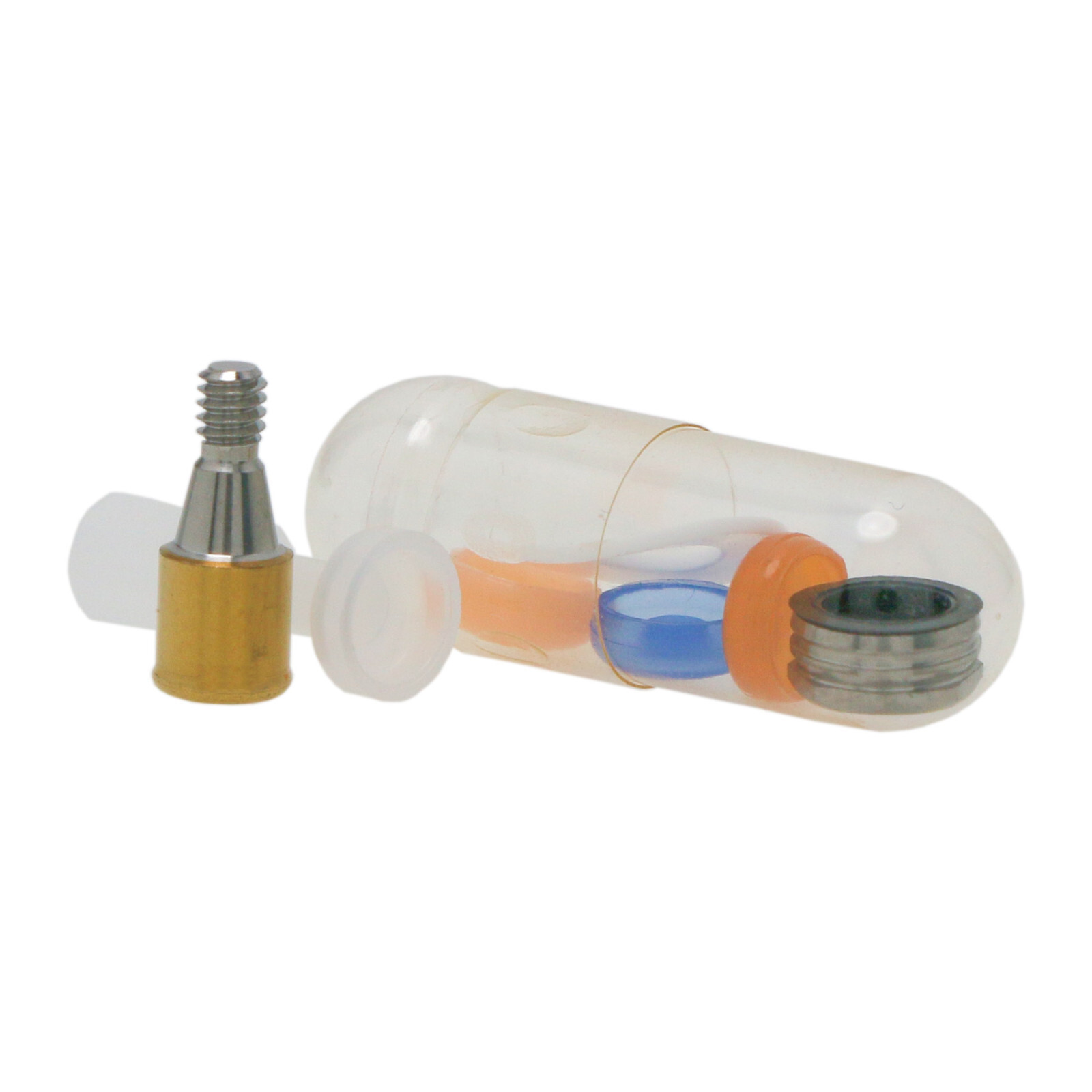

• Locator Male Cap Kit (5pcs)

---

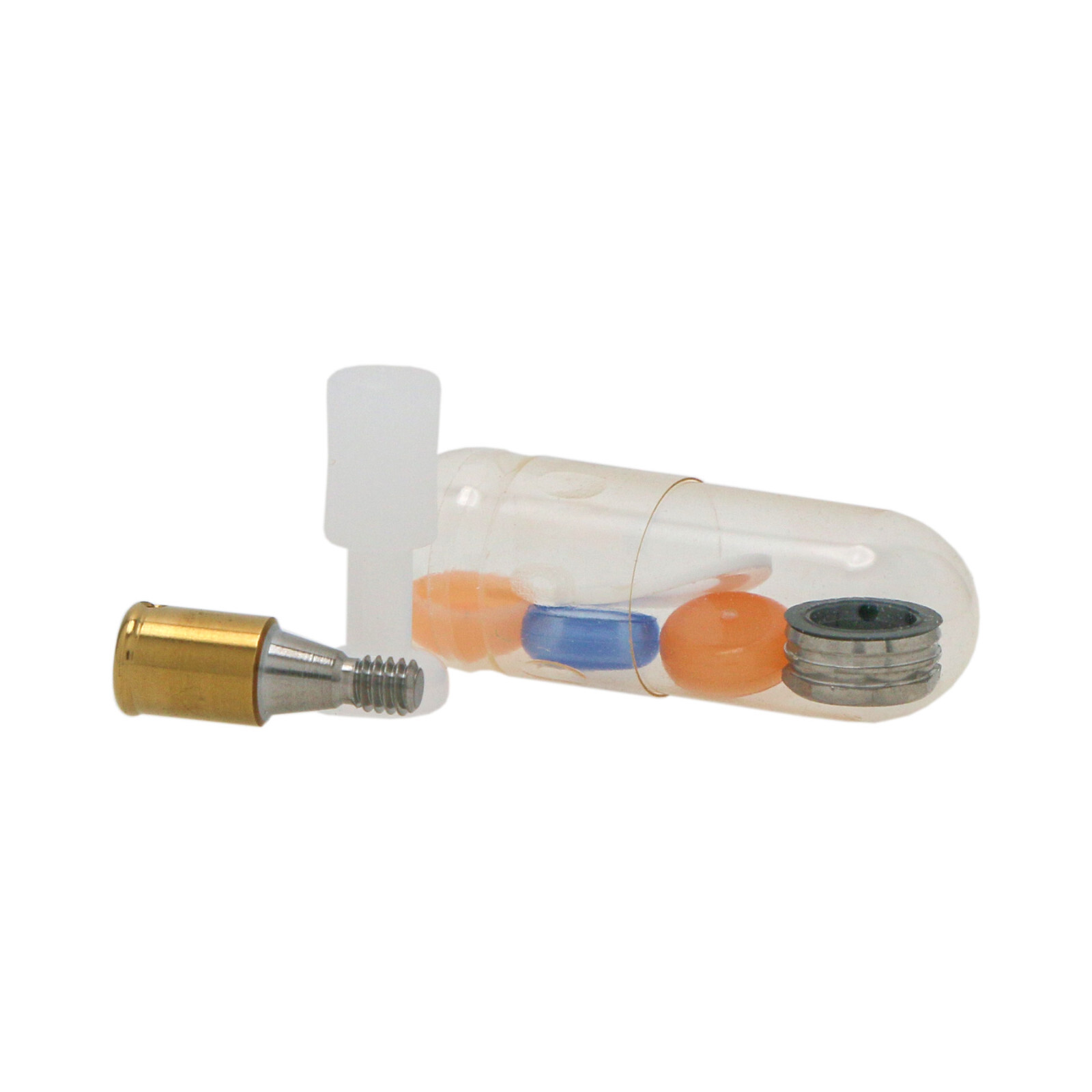

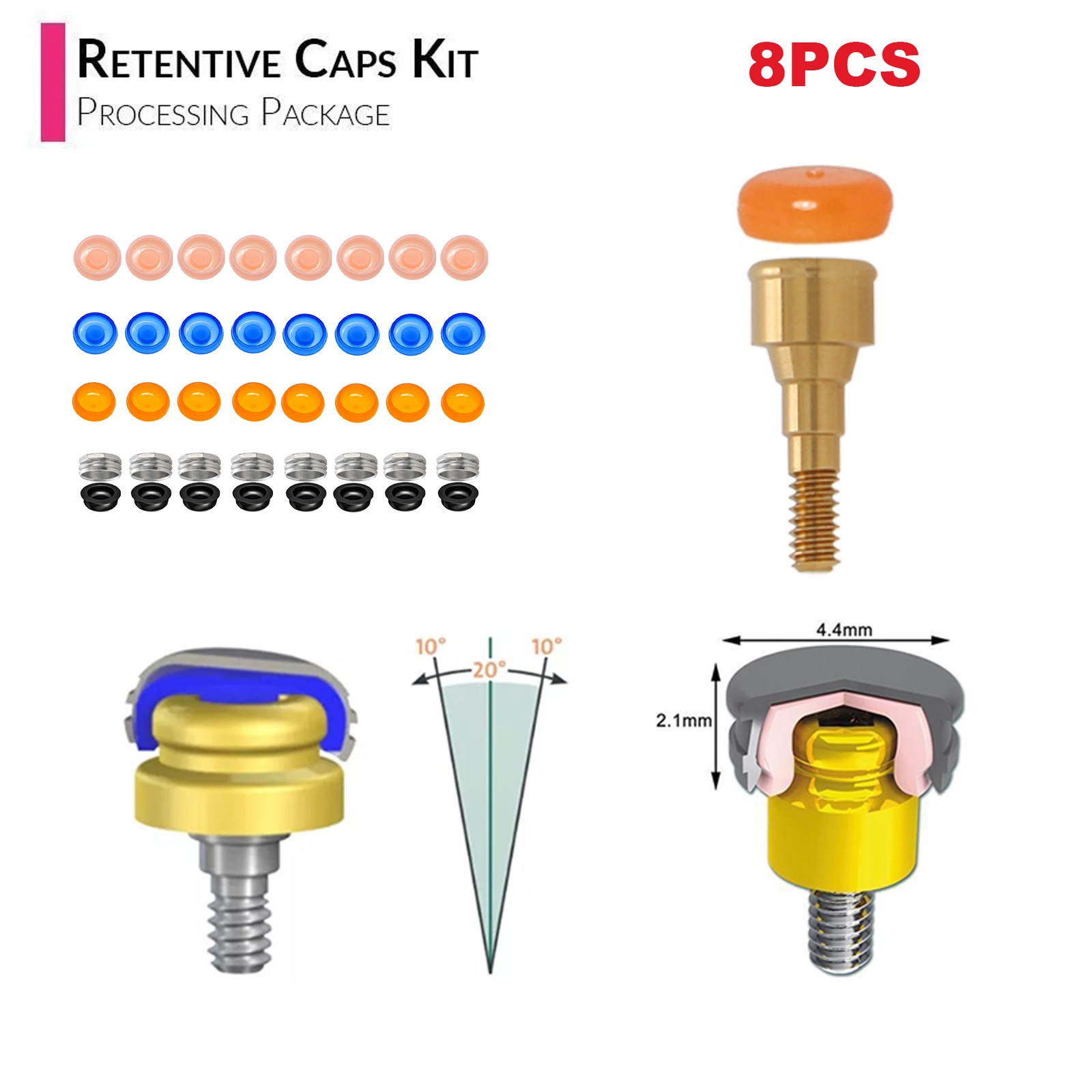

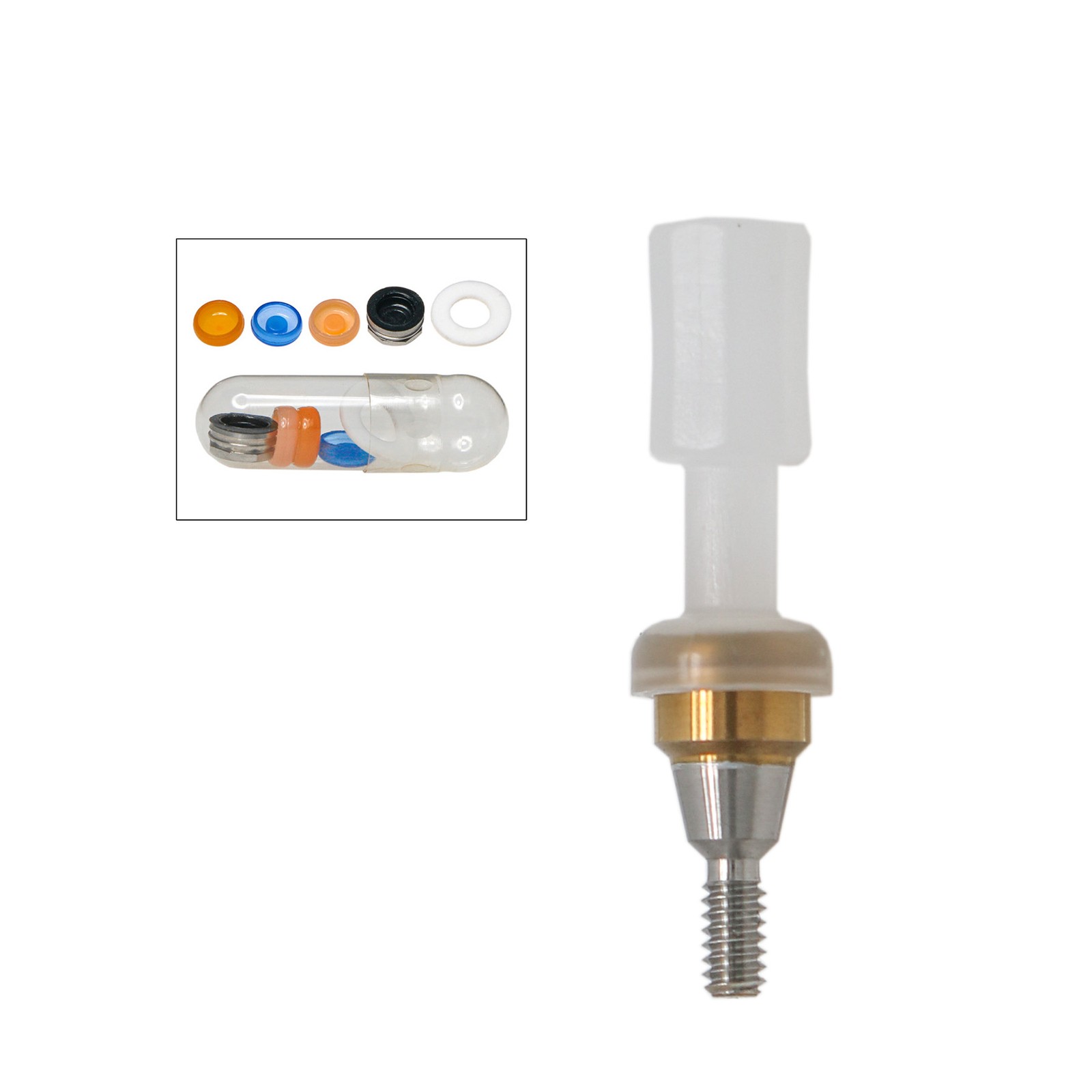

🌟 2. Locator Male Processing Package (Angle Retention 10–40°)

Includes:

• Metal Housing & Lab Cap Assembly – 1 set

• Pink Retention Male Cap Inserts (2.4 lbs) – Angle retention 10–20°

• Blue Retention Male Cap Inserts (1.2 lbs) – Angle retention 10–20°

• Yellow Retention Male Cap Inserts (0.8 lbs) – Angle retention 10–40°

• Block-Out Spacer – 1pc

📌 Material: PEEK
📌 Note: Only compatible with Locator Classic Overdenture Abutment (NOT compatible with Locator R-TX Type or other types).

---

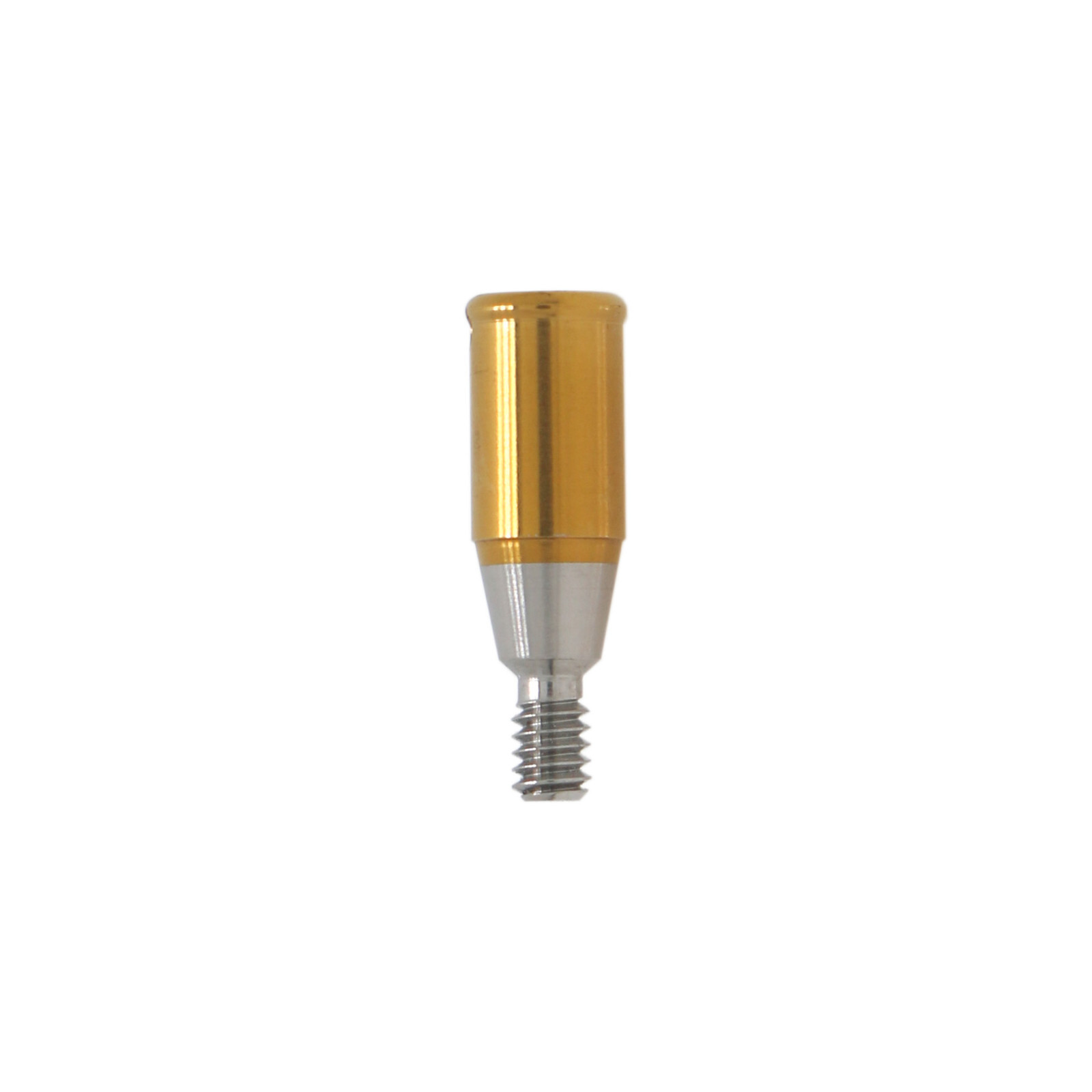

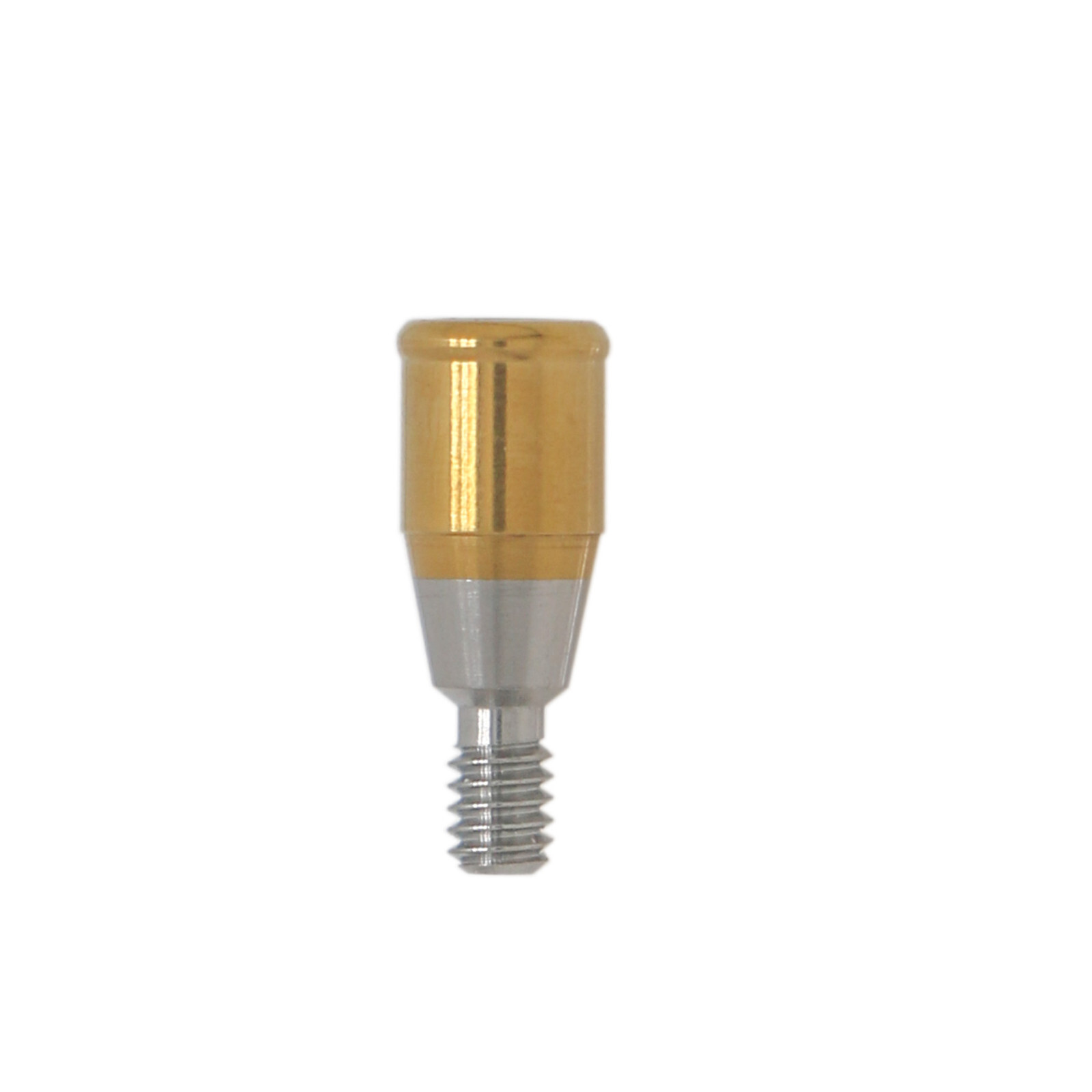

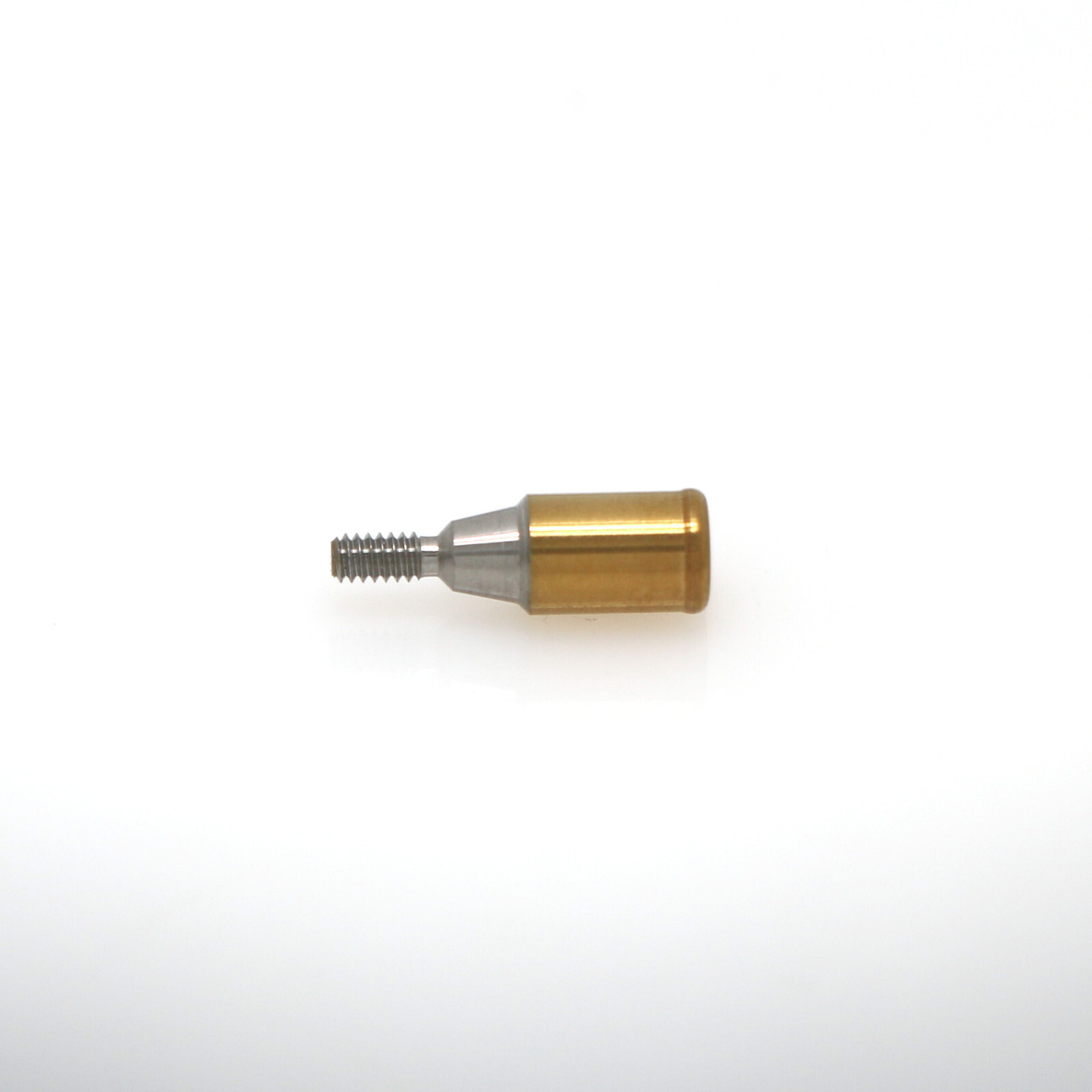

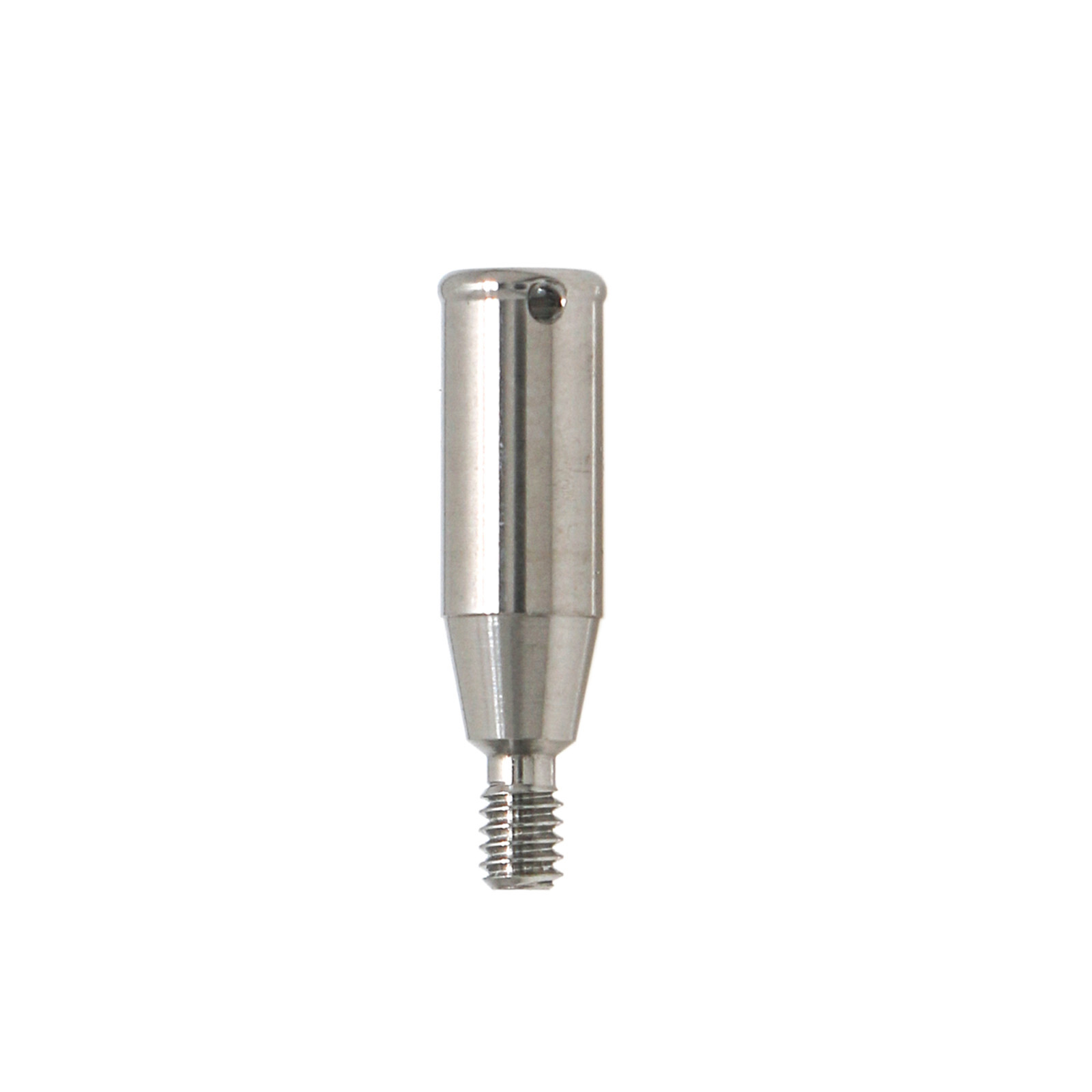

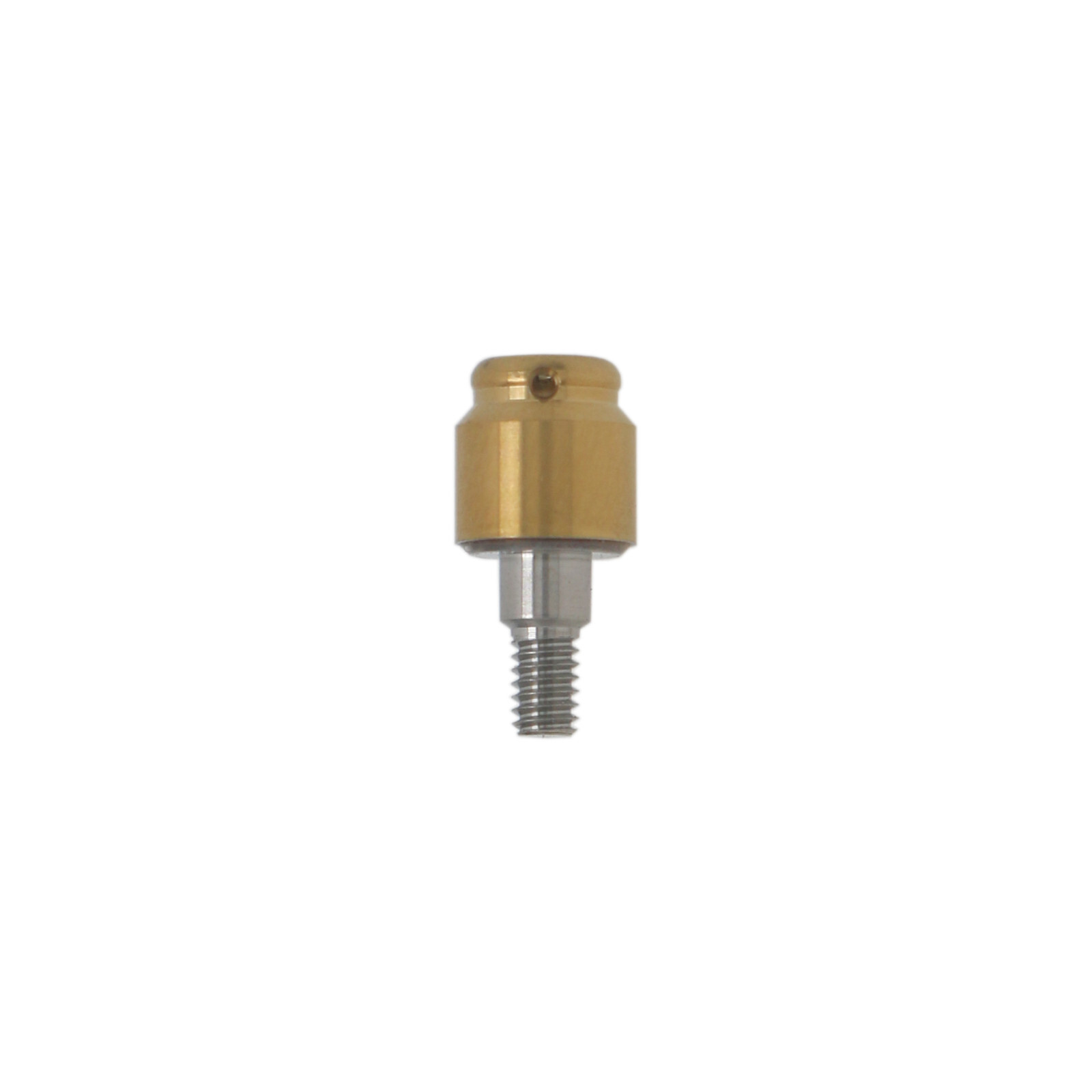

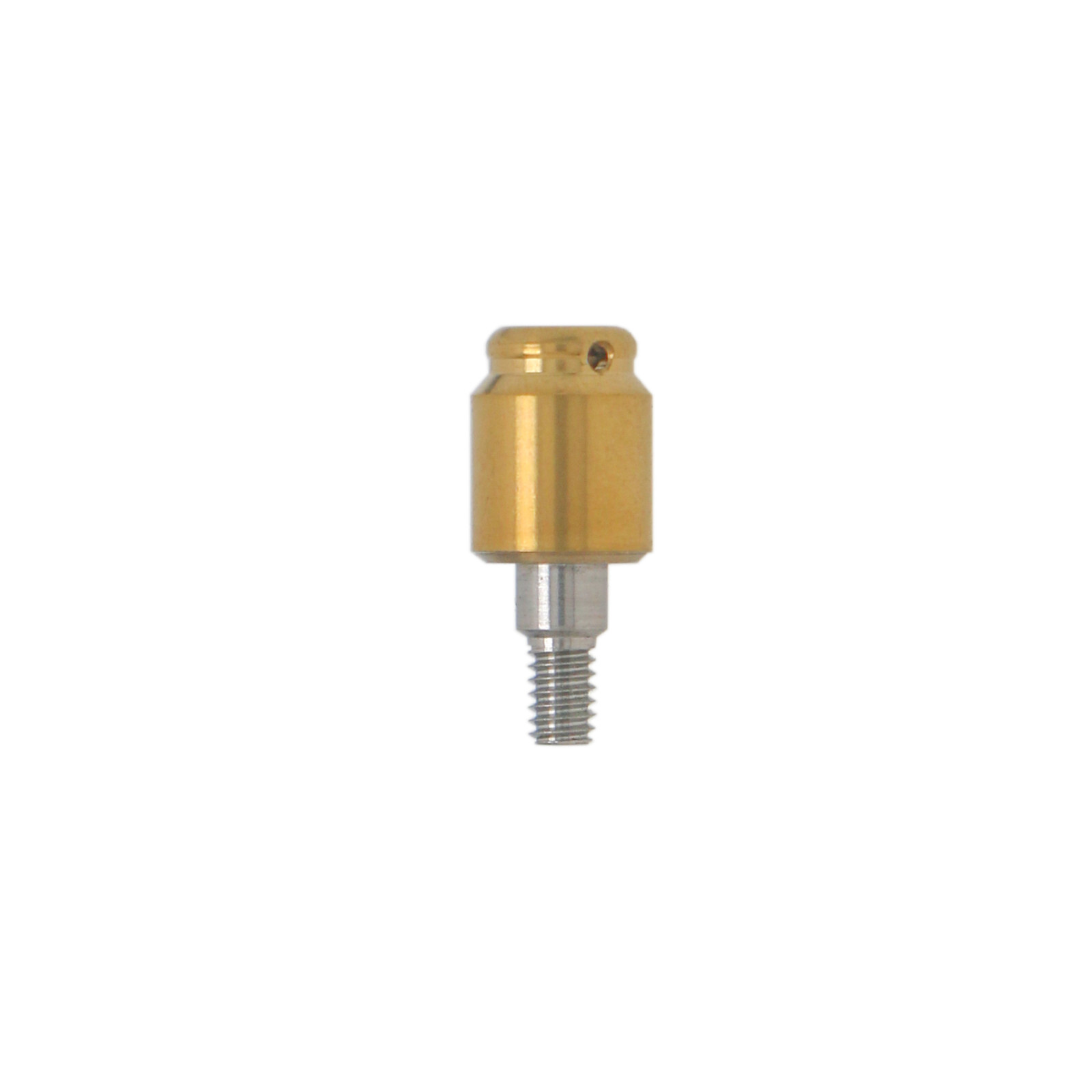

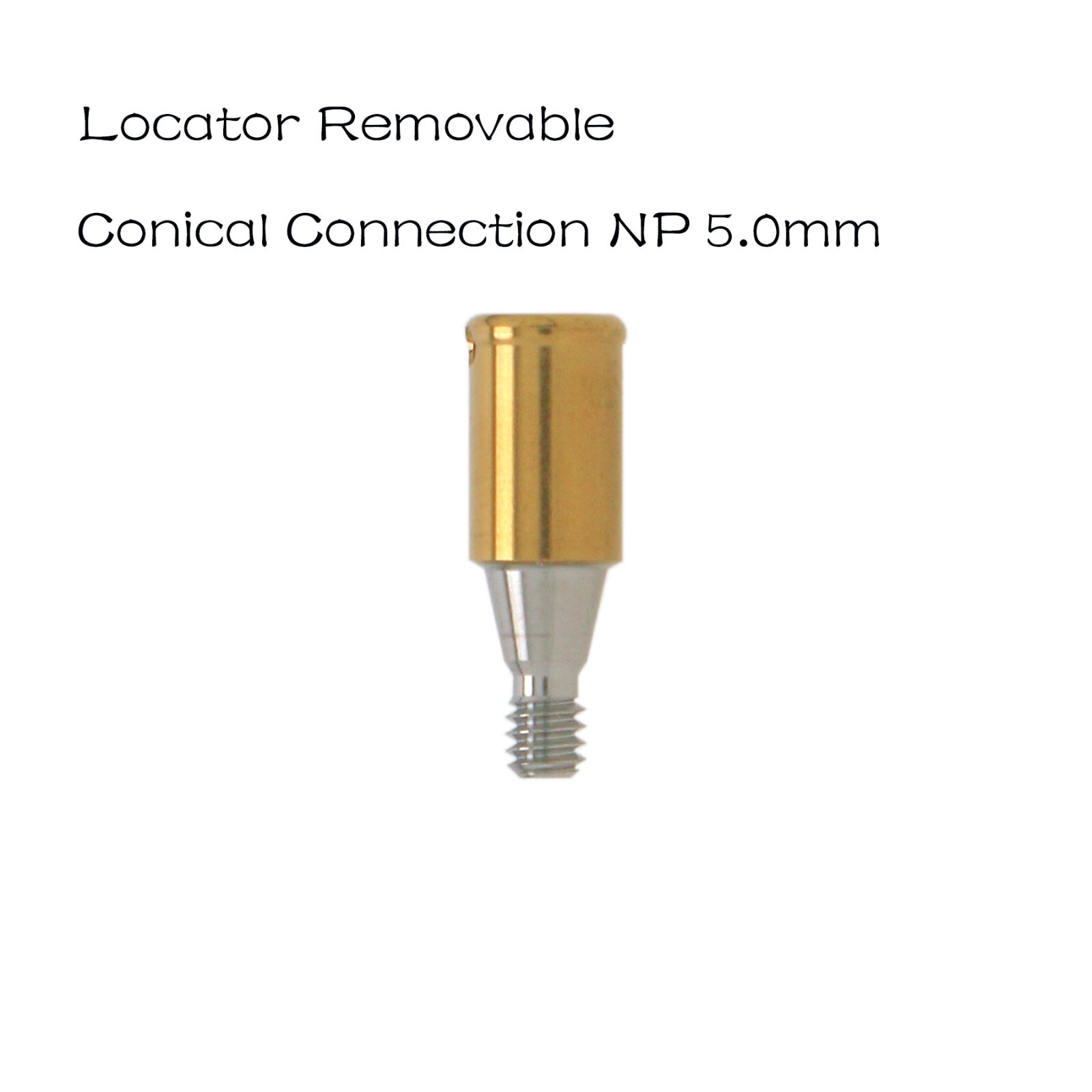

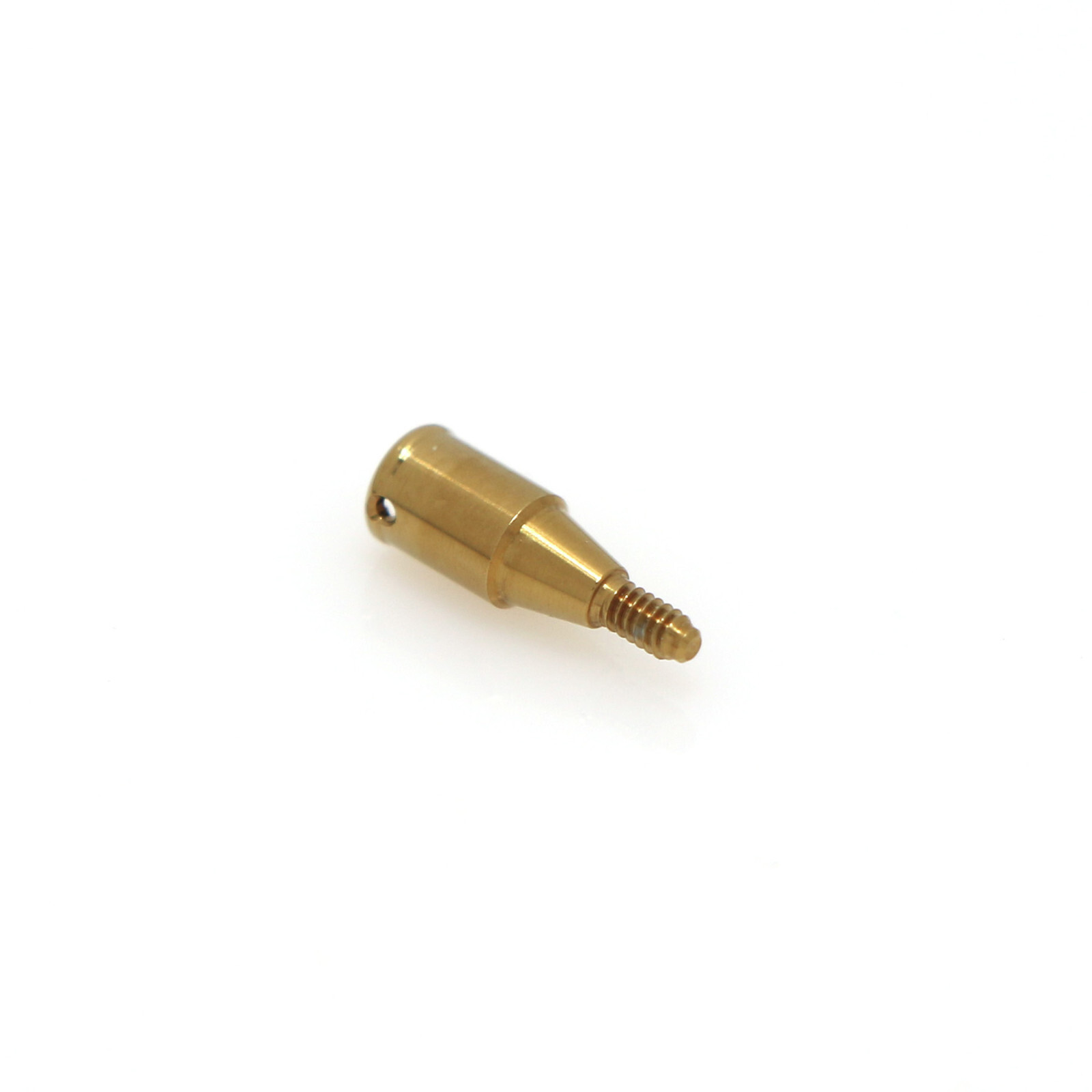

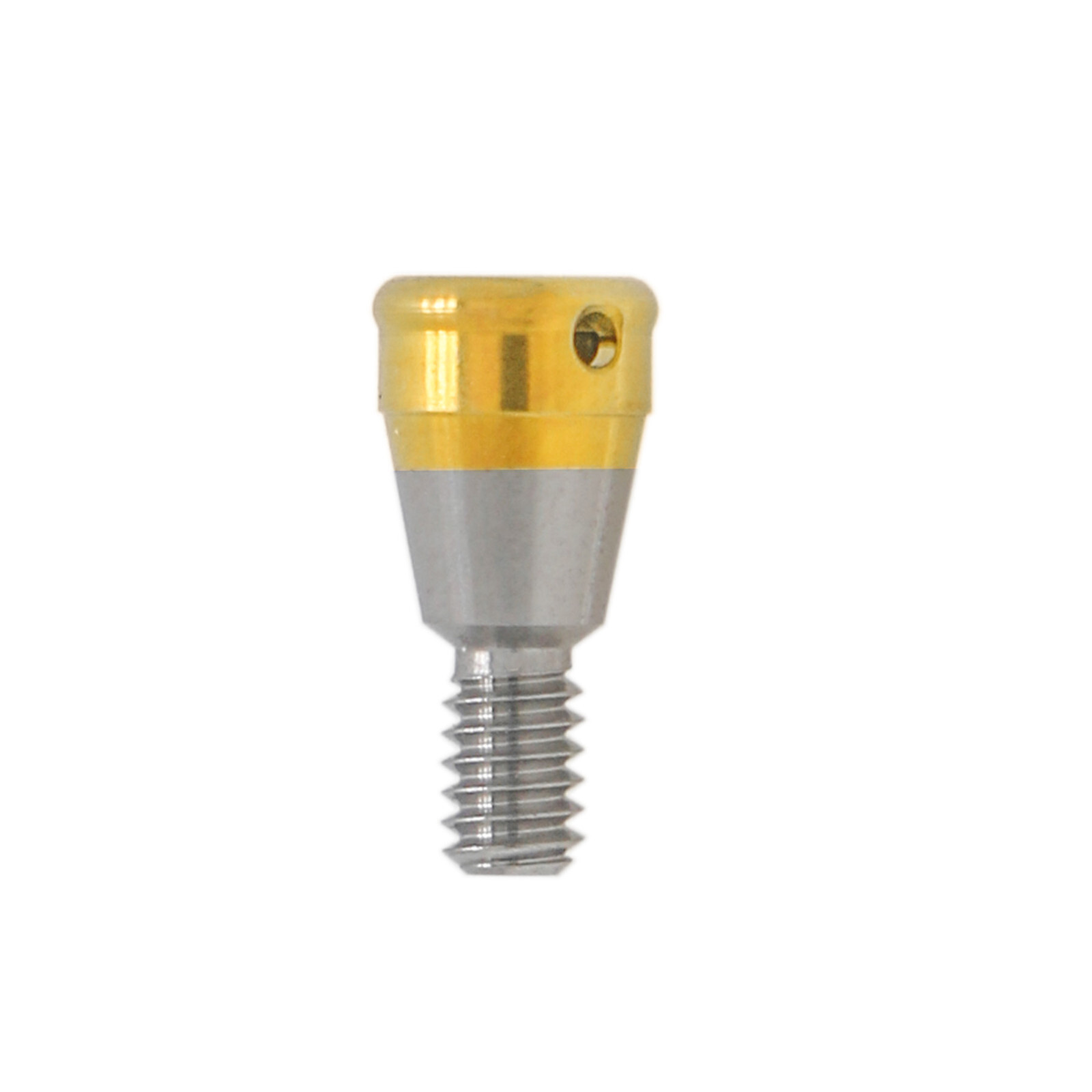

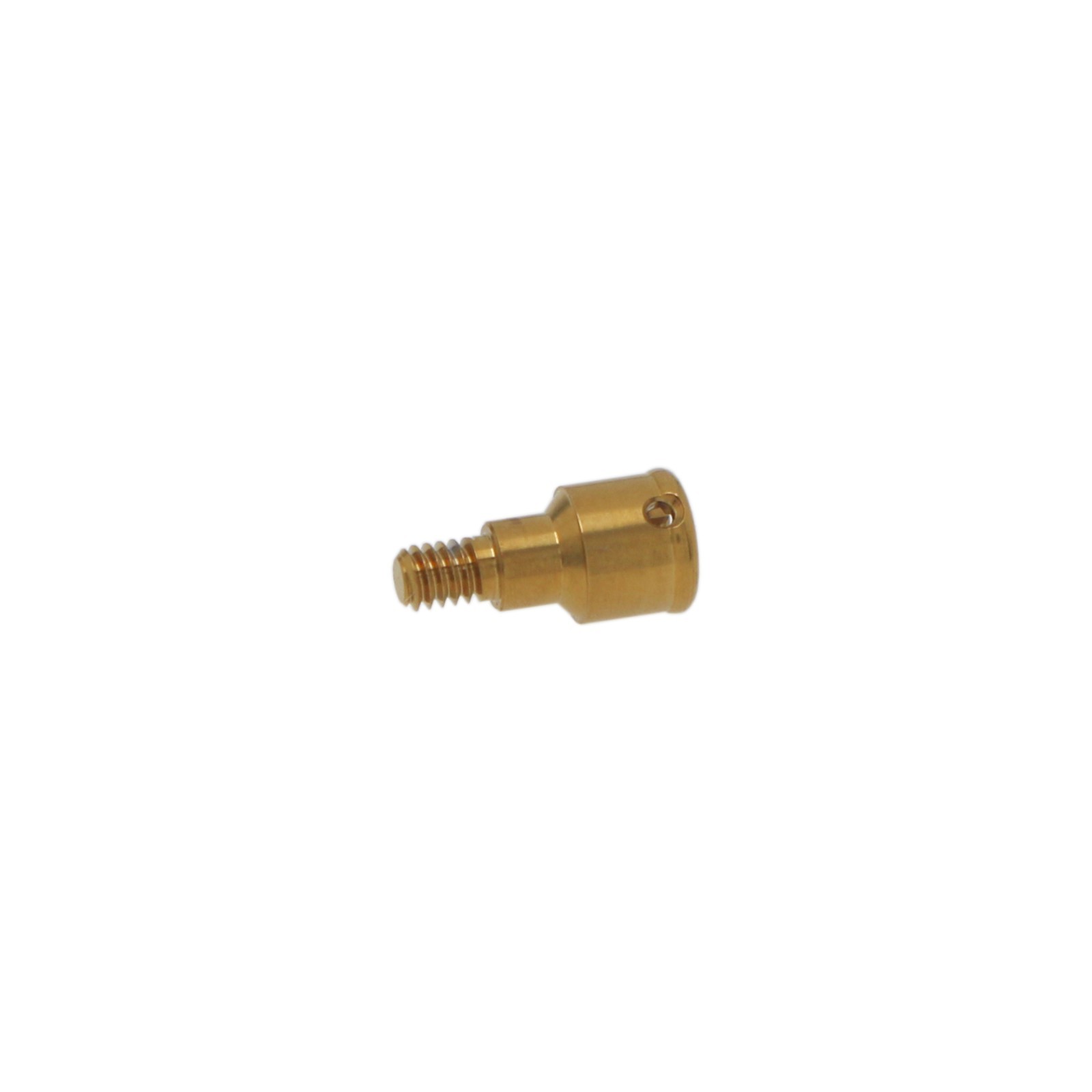

🦷 Locator Abutments (Similar to ZEST Locator)

✔ Compatible With:

Hiossen ET III SA / Osstem TS / NeoBiotech / DIO UF-R / Cowell (INNO) / Zhennuo / CSM / Anker / Snucone, etc.
Suitable for Regular & Narrow (Mini) platform.

---

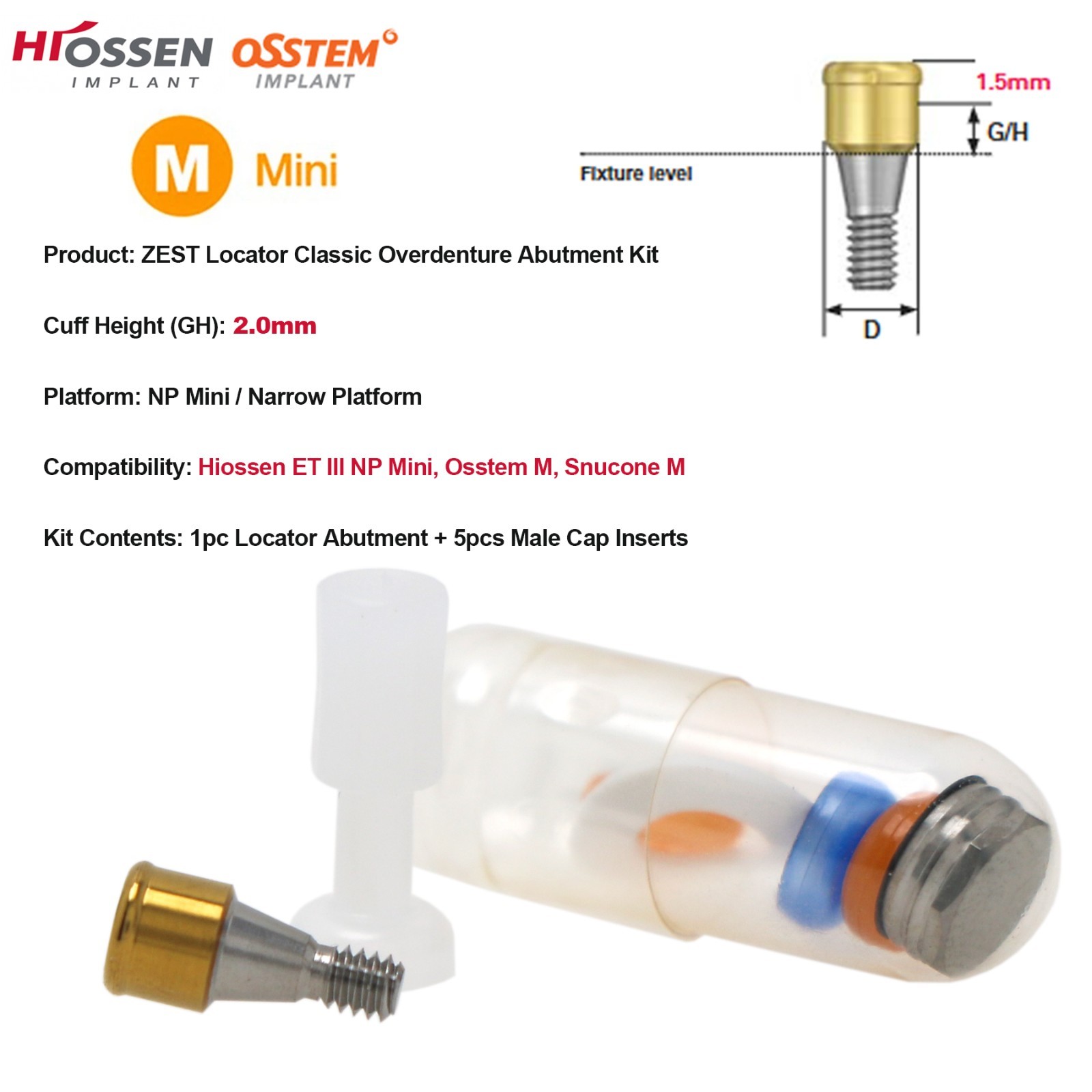

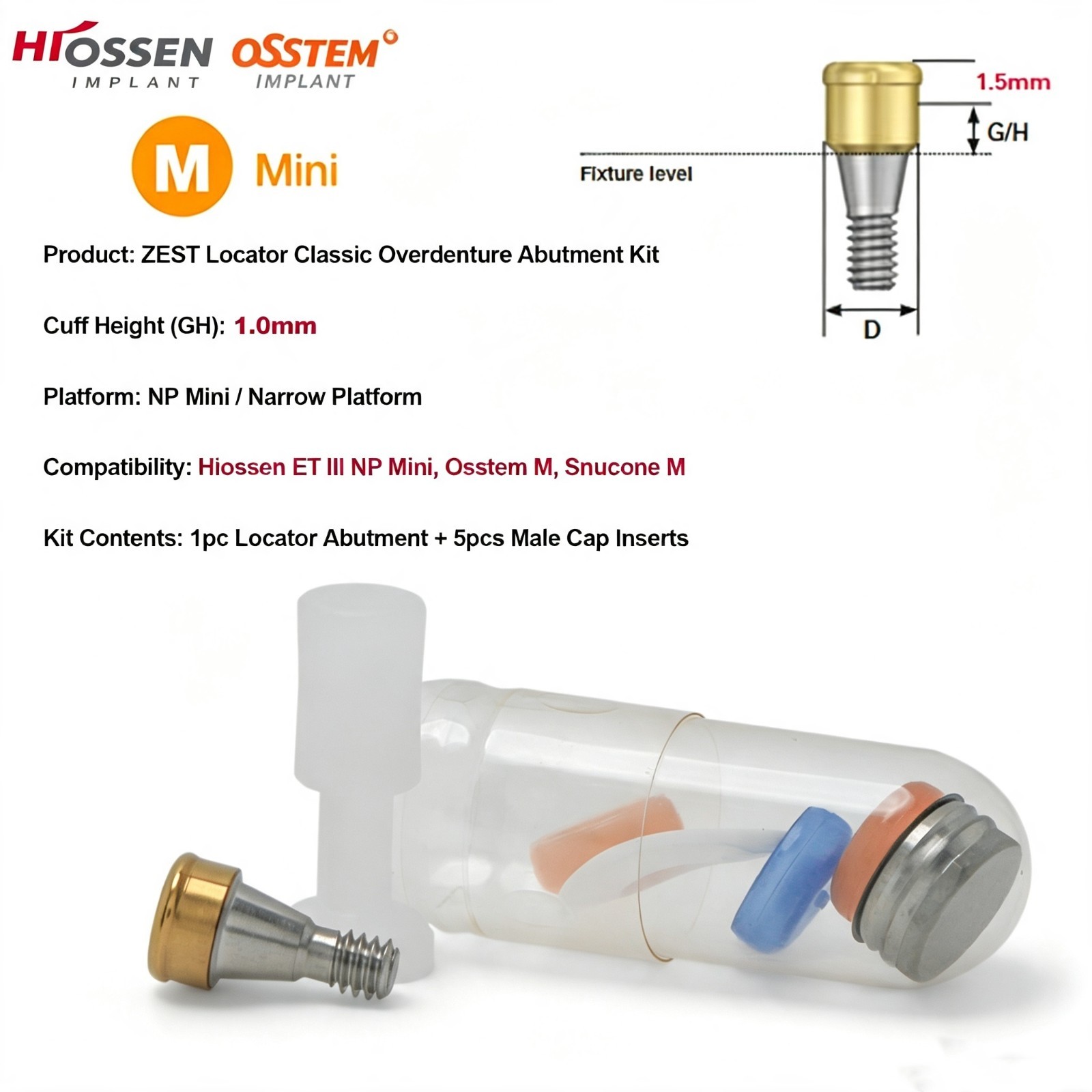

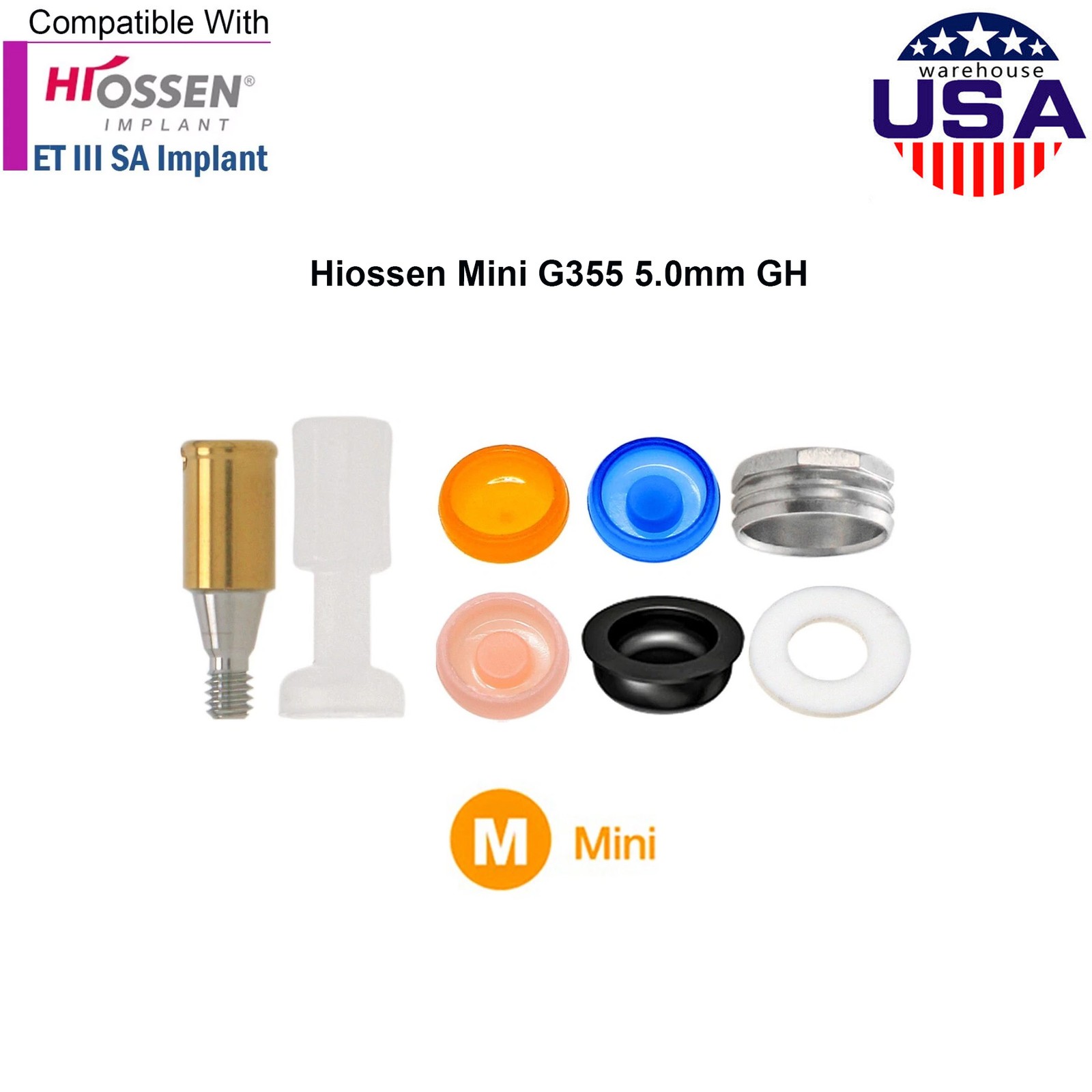

🔹 A. Hiossen Narrow (Mini) Locator Abutment

• G351 – 1.0mm

• G352 – 2.0mm

• G353 – 3.0mm

• G354 – 4.0mm

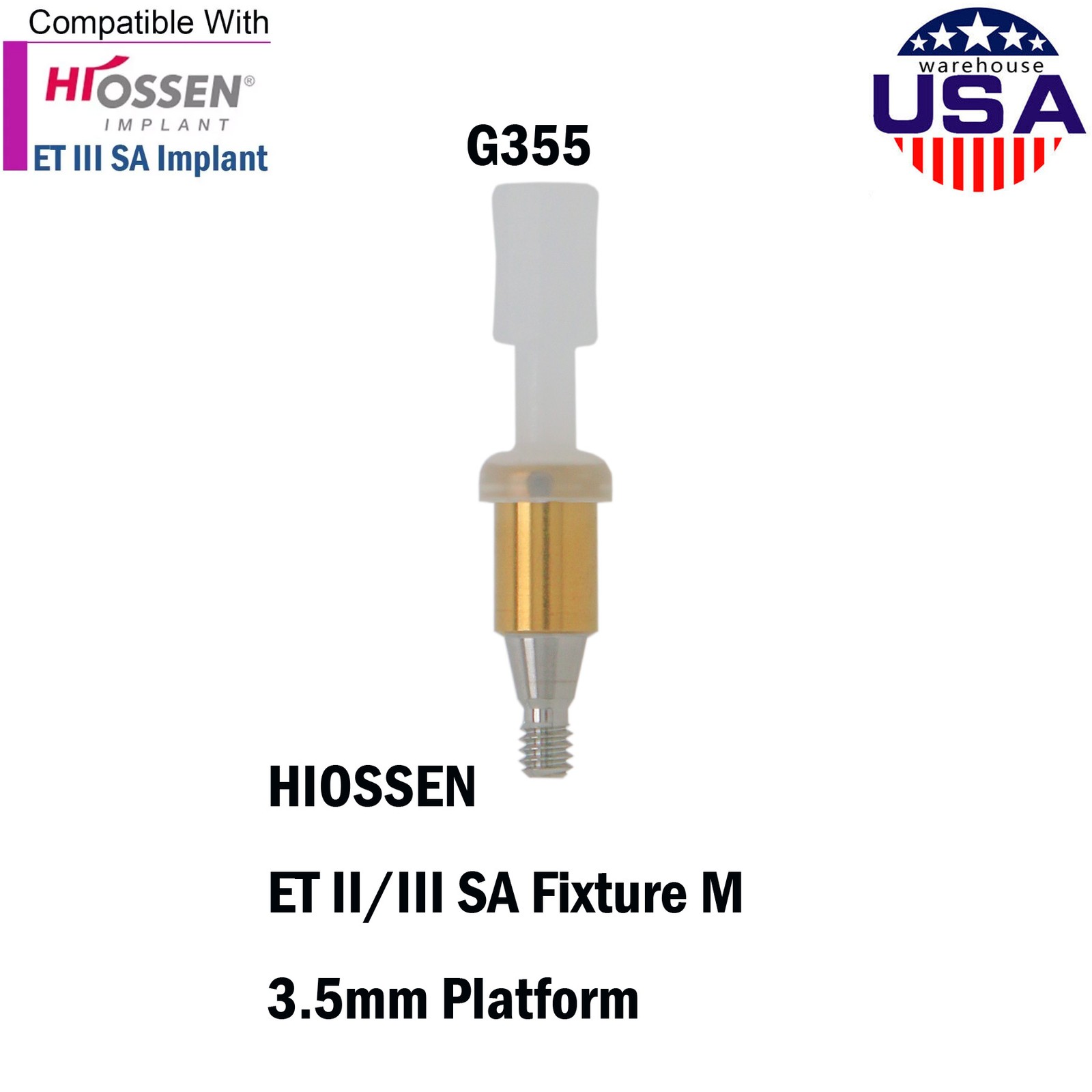

• G355 – 5.0mm

• G356 – 6.0mm

---

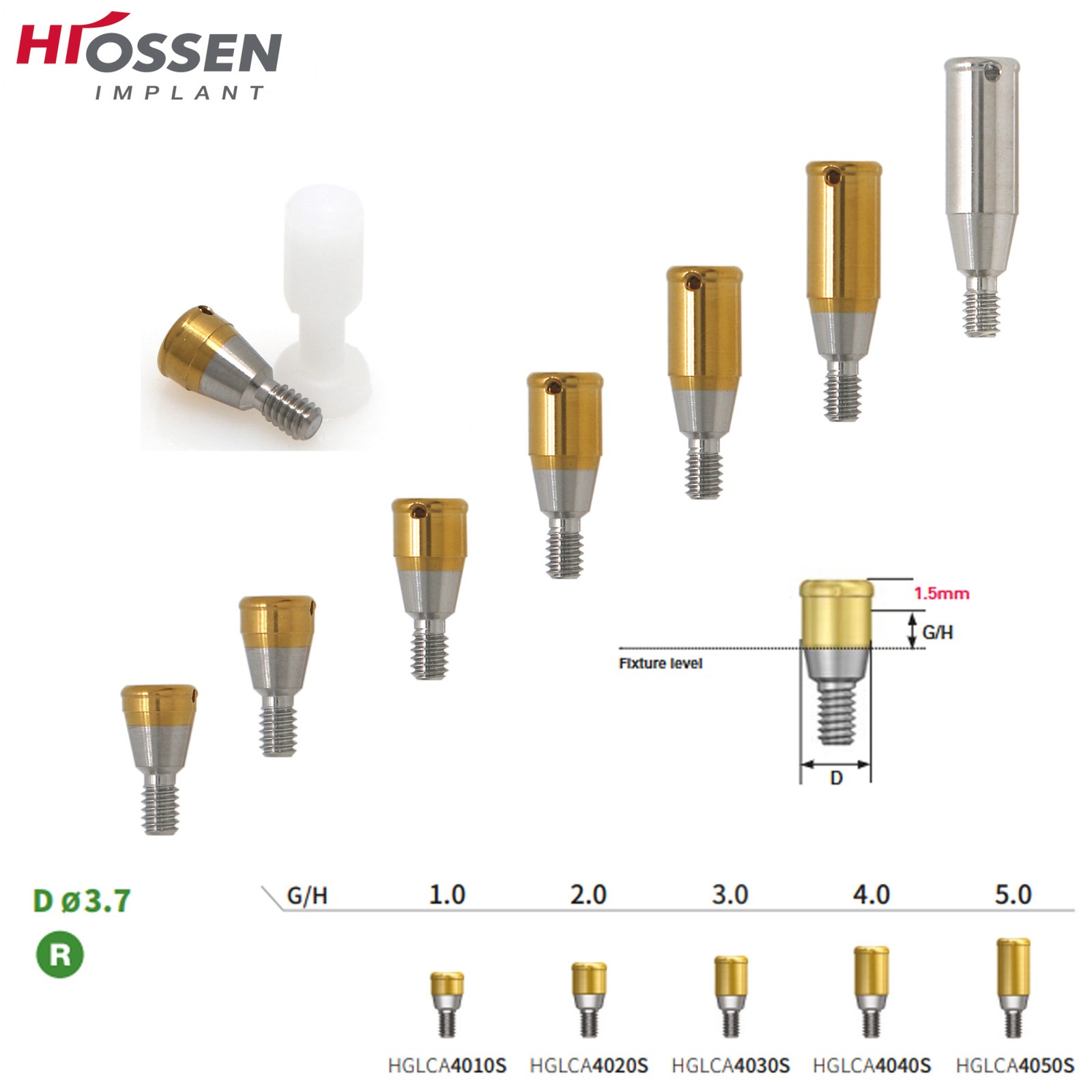

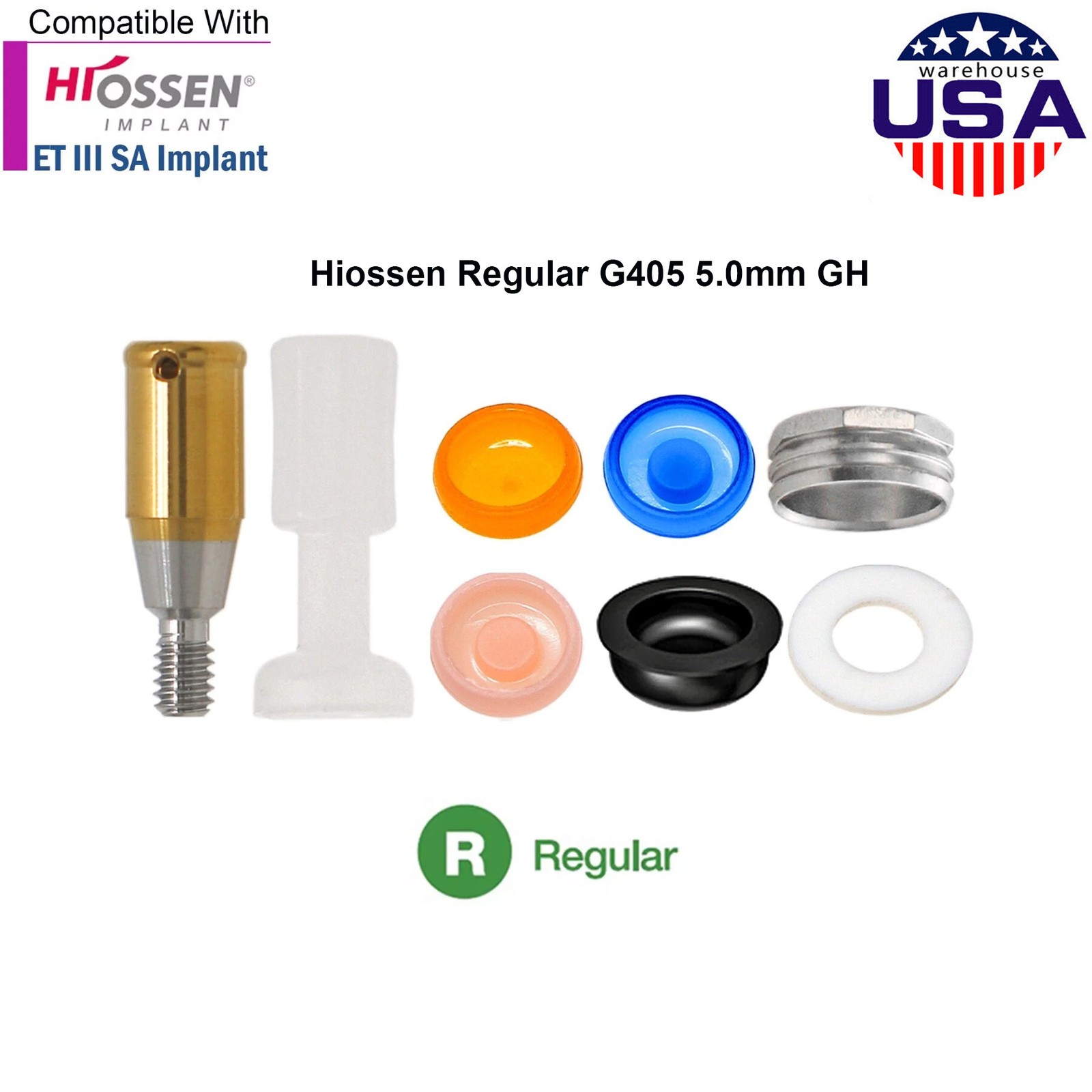

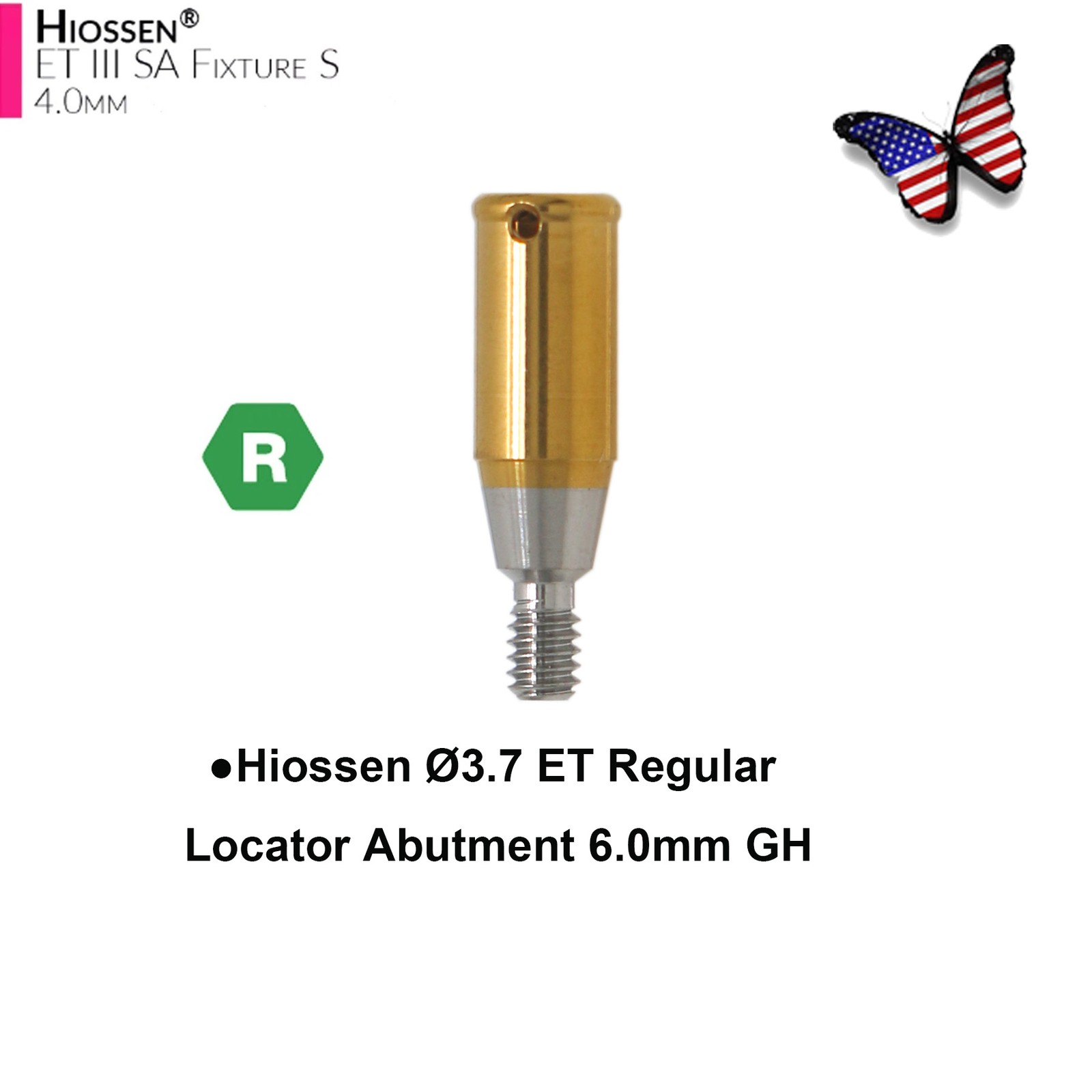

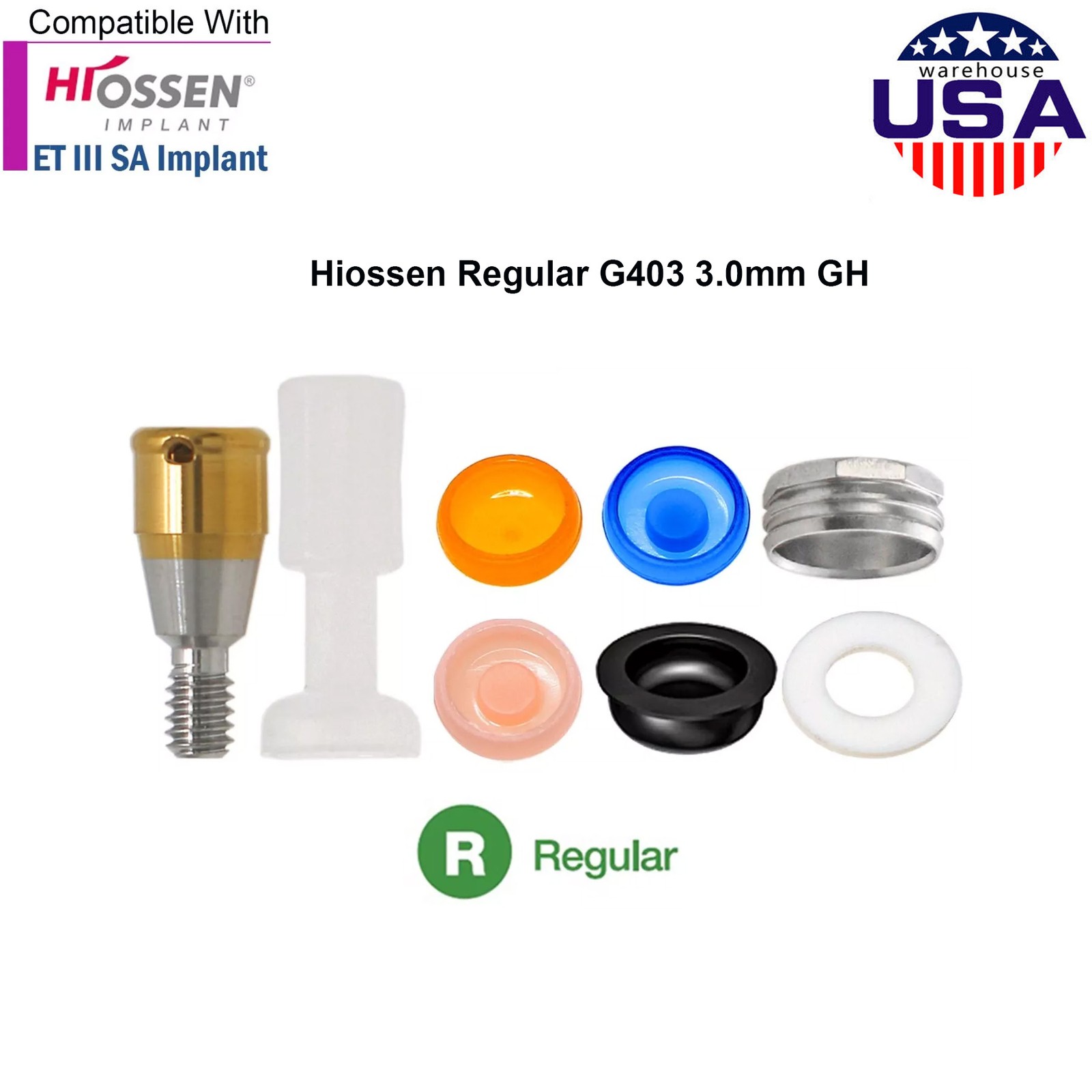

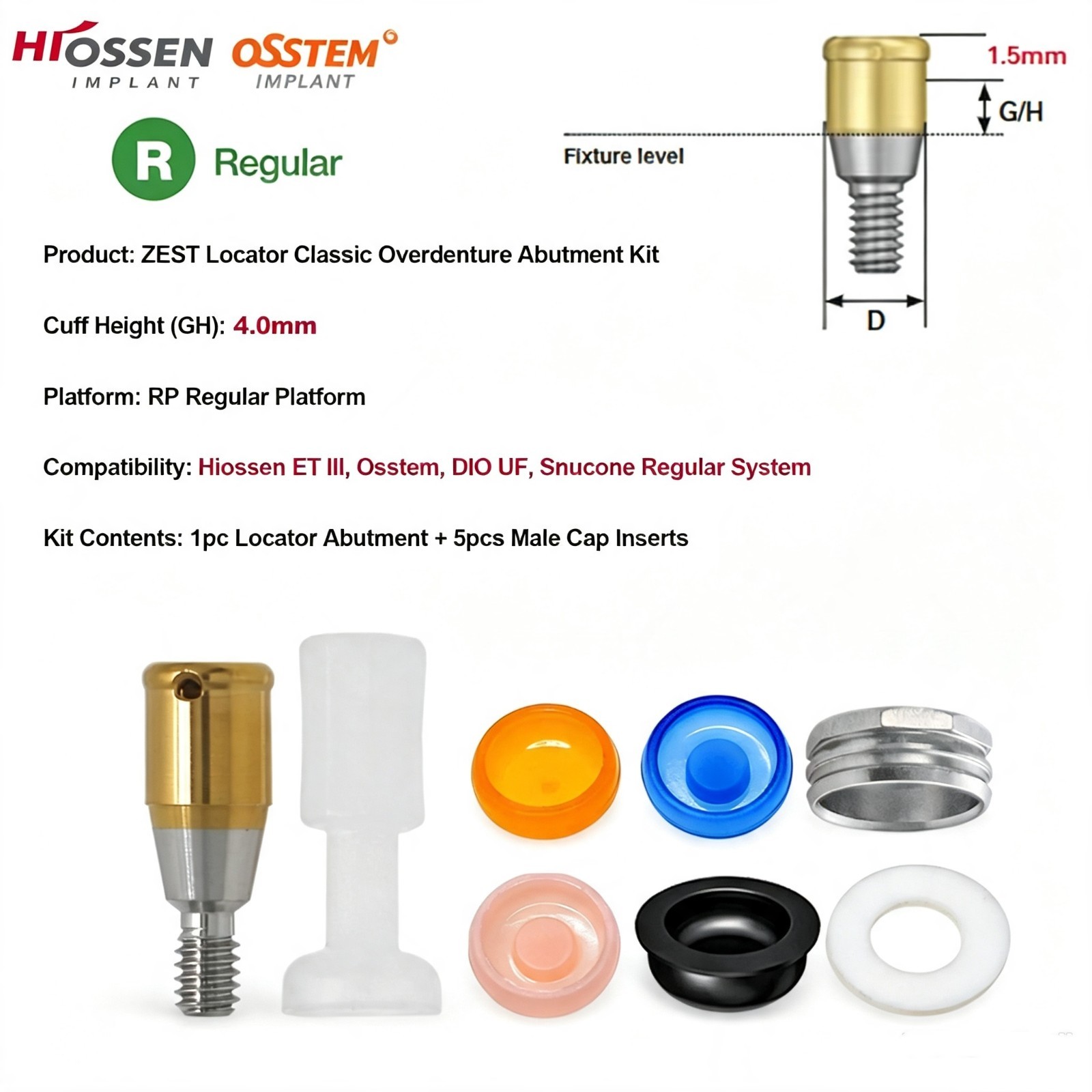

🔹 B. Hiossen Regular Locator Abutment

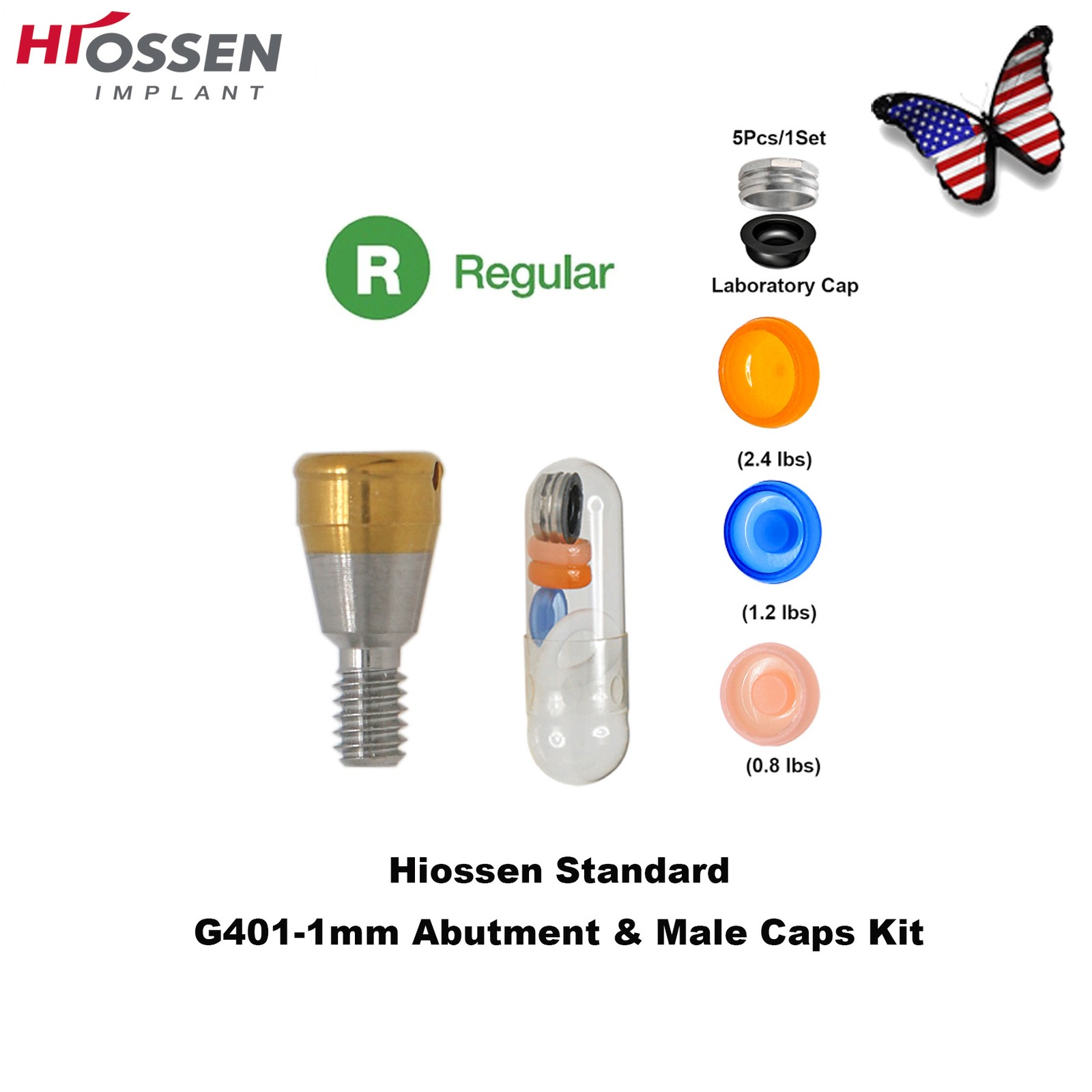

• G401 – 1.0mm

• G402 – 2.0mm

• G404 – 4.0mm

• G405 – 5.0mm

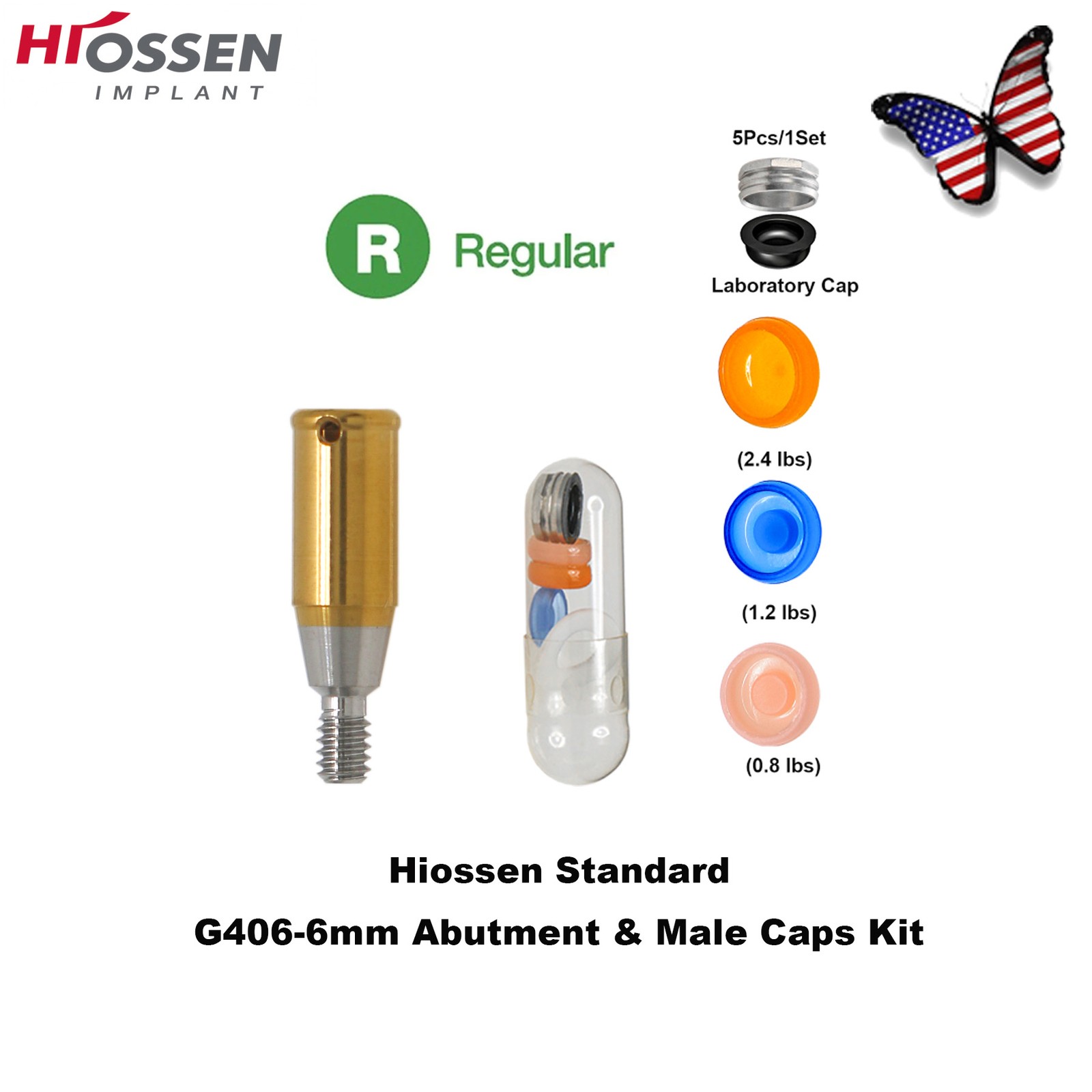

• G406 – 6.0mm

• G407 – 7.0mm

---

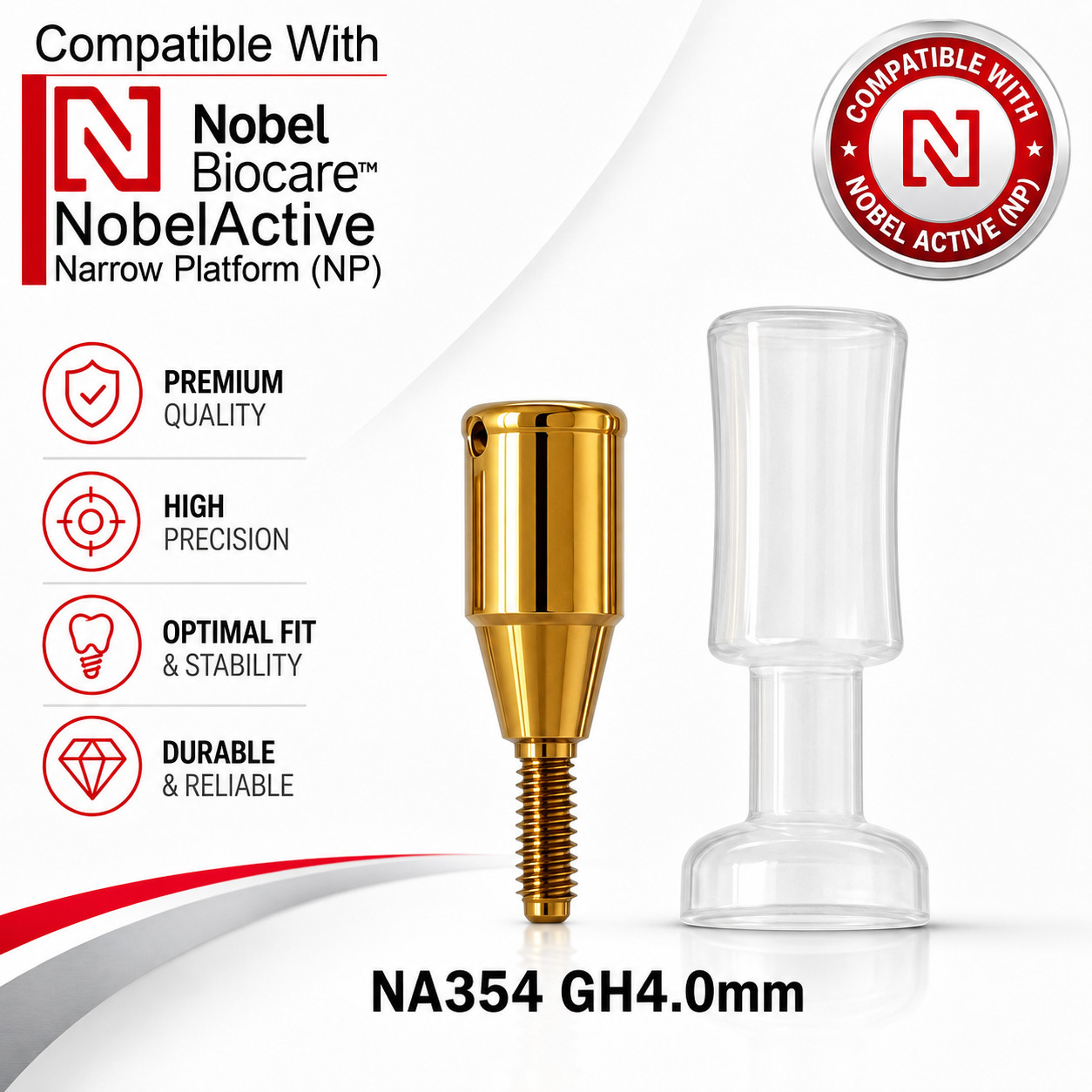

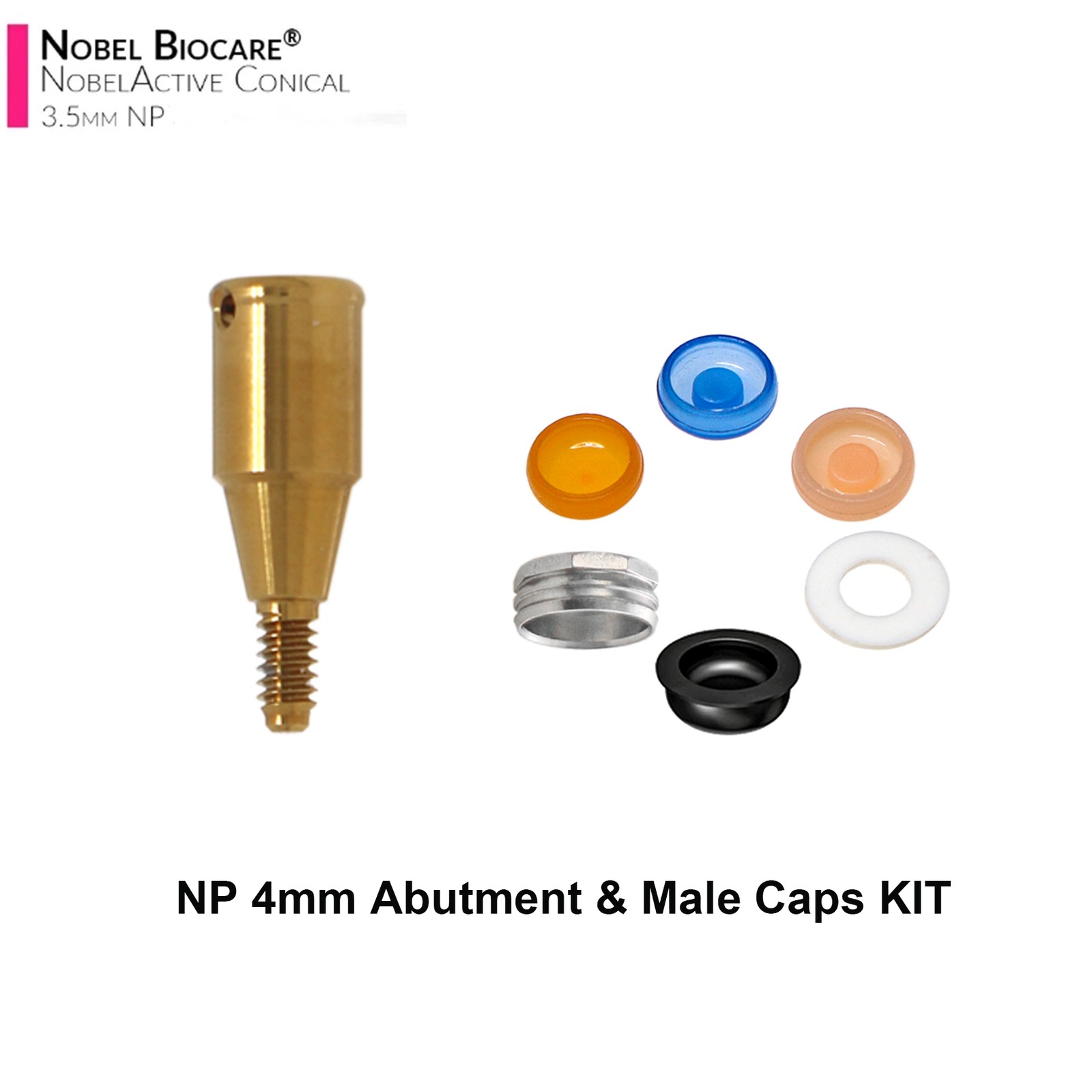

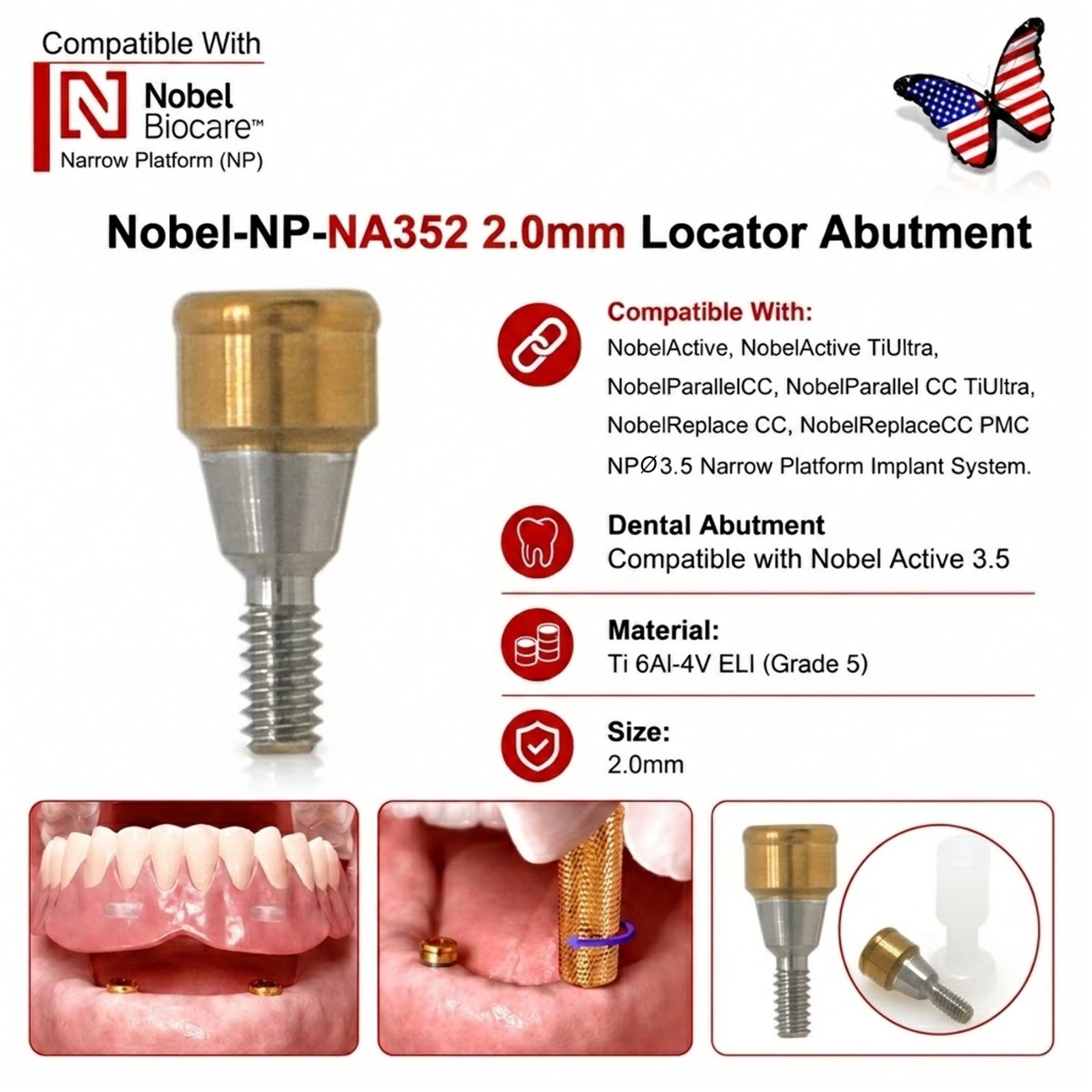

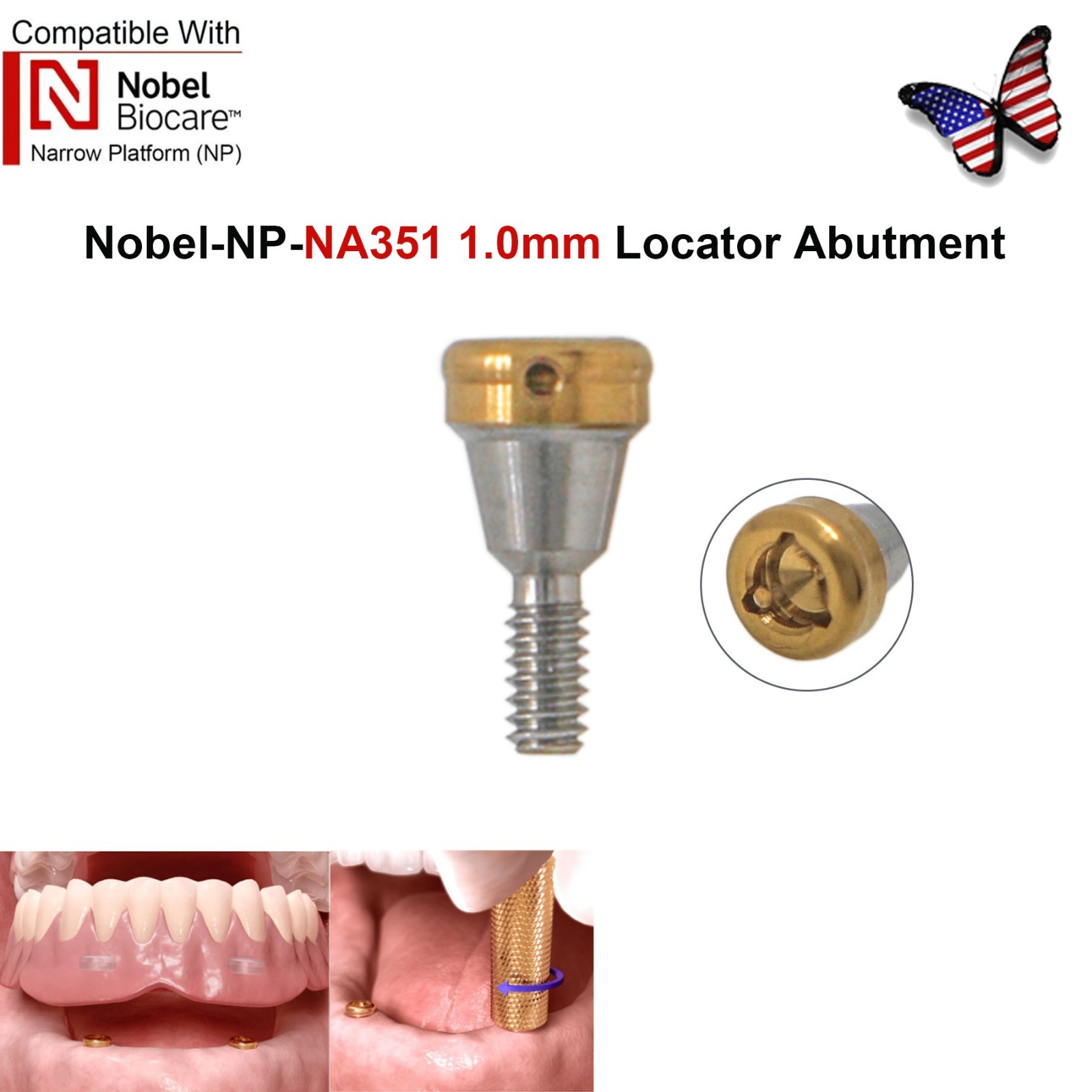

🔹 C. Nobel Biocare Active (NP/RP Platform)

Compatible with NobelActive / NobelActive TiUltra / NobelParallel CC / NobelReplace CC etc.

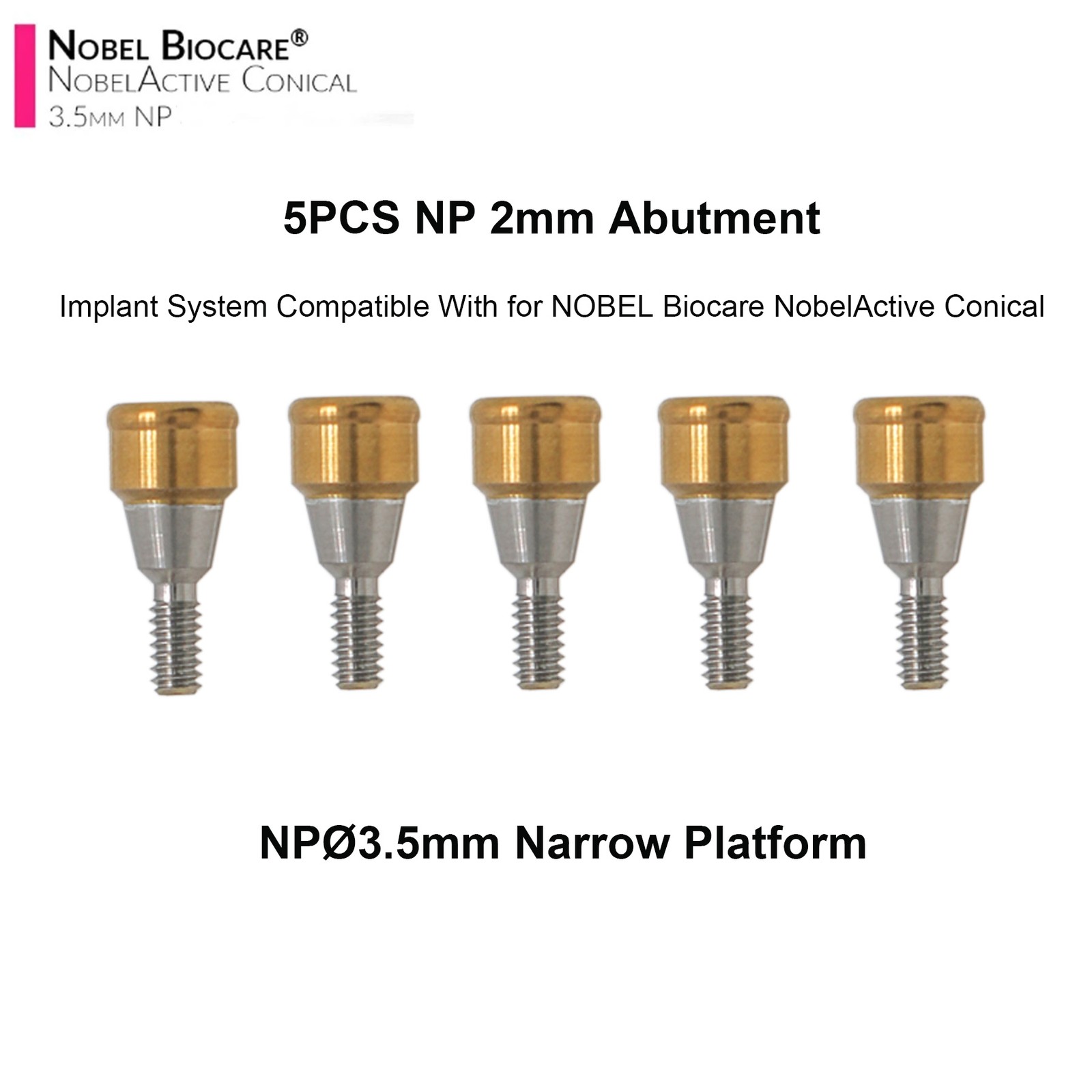

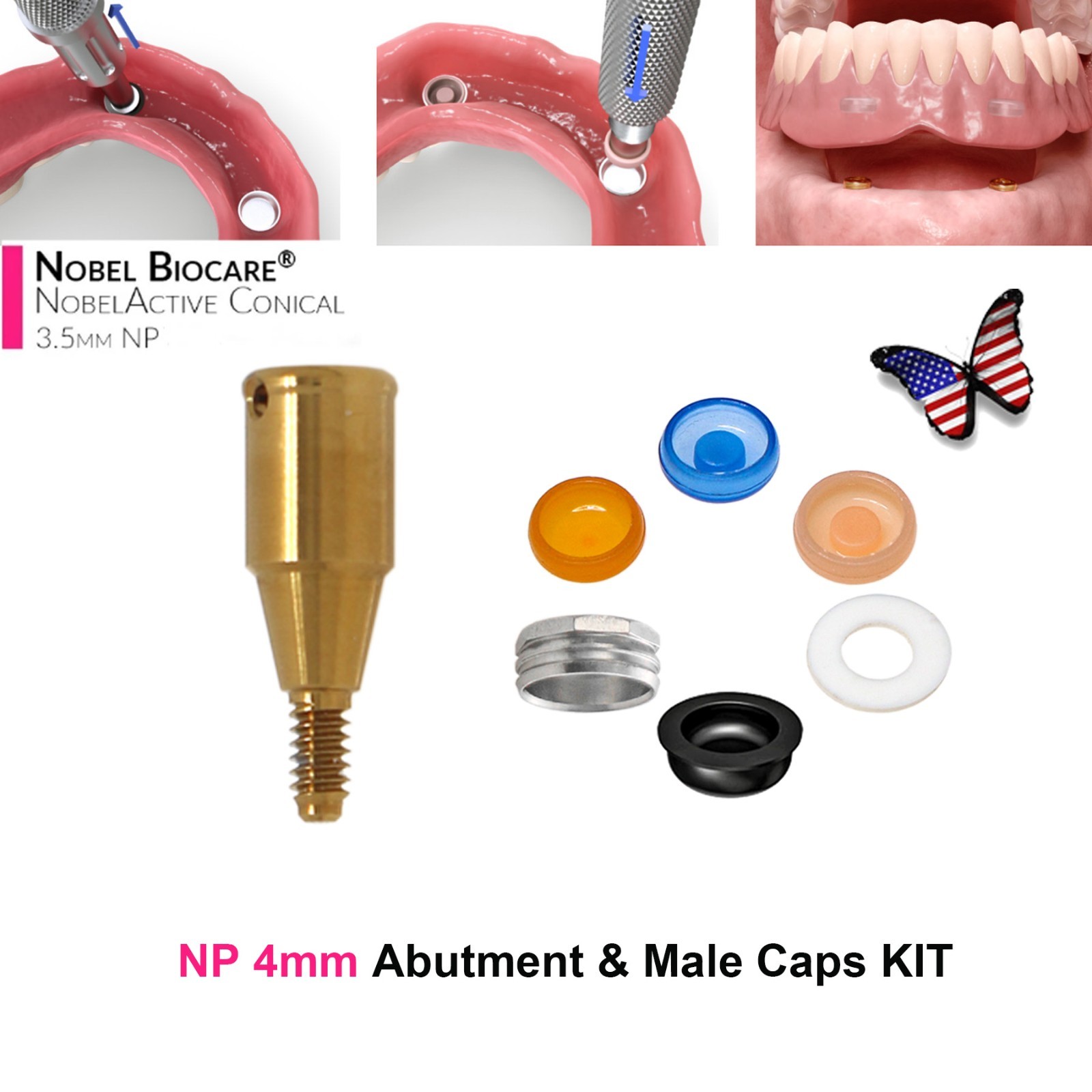

Nobel Narrow Platform (3.5mm Dia)

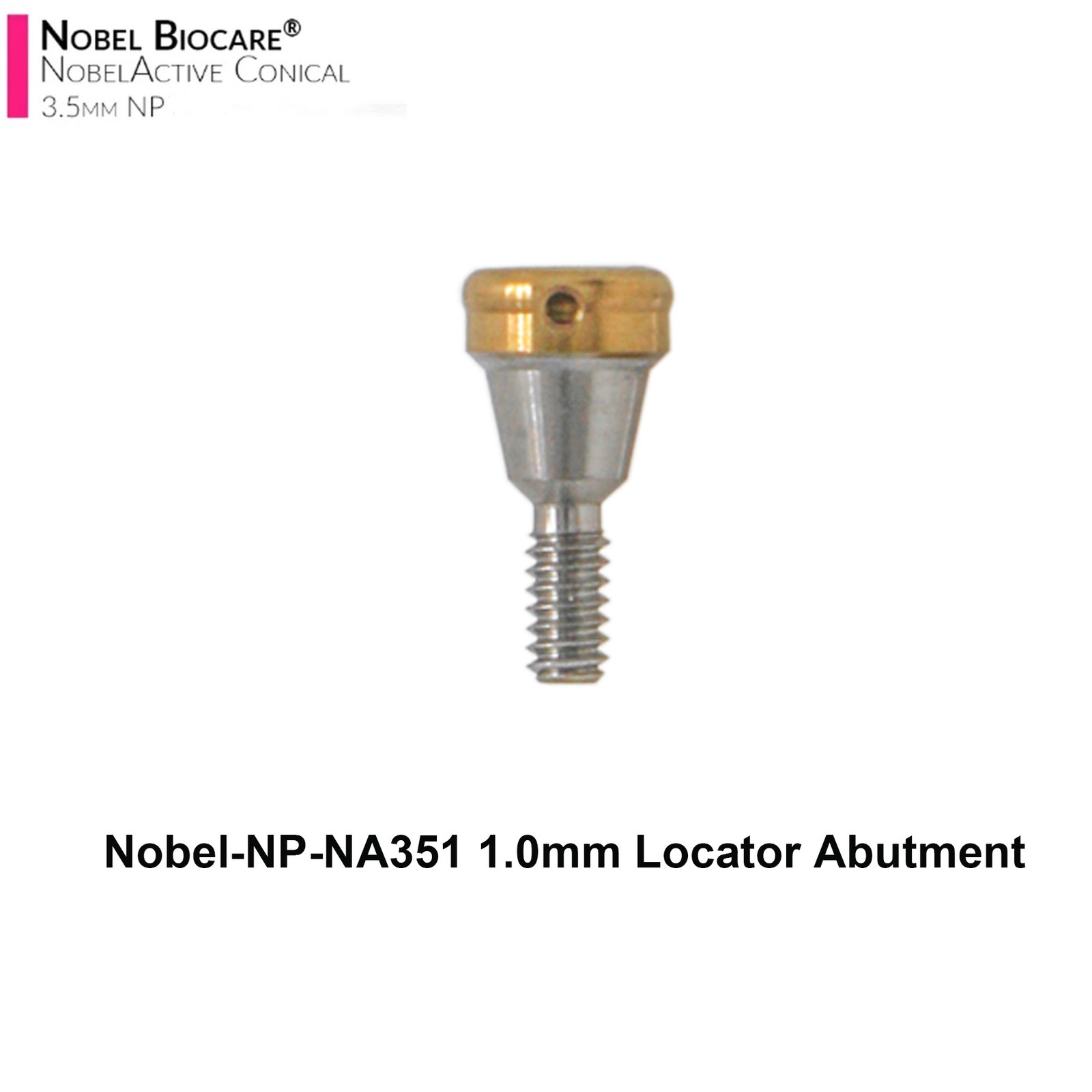

• NA351 – 1.0mm

• NA352 – 2.0mm

• NA353 – 3.0mm

• NA354 – 4.0mm

• NA355 – 5.0mm

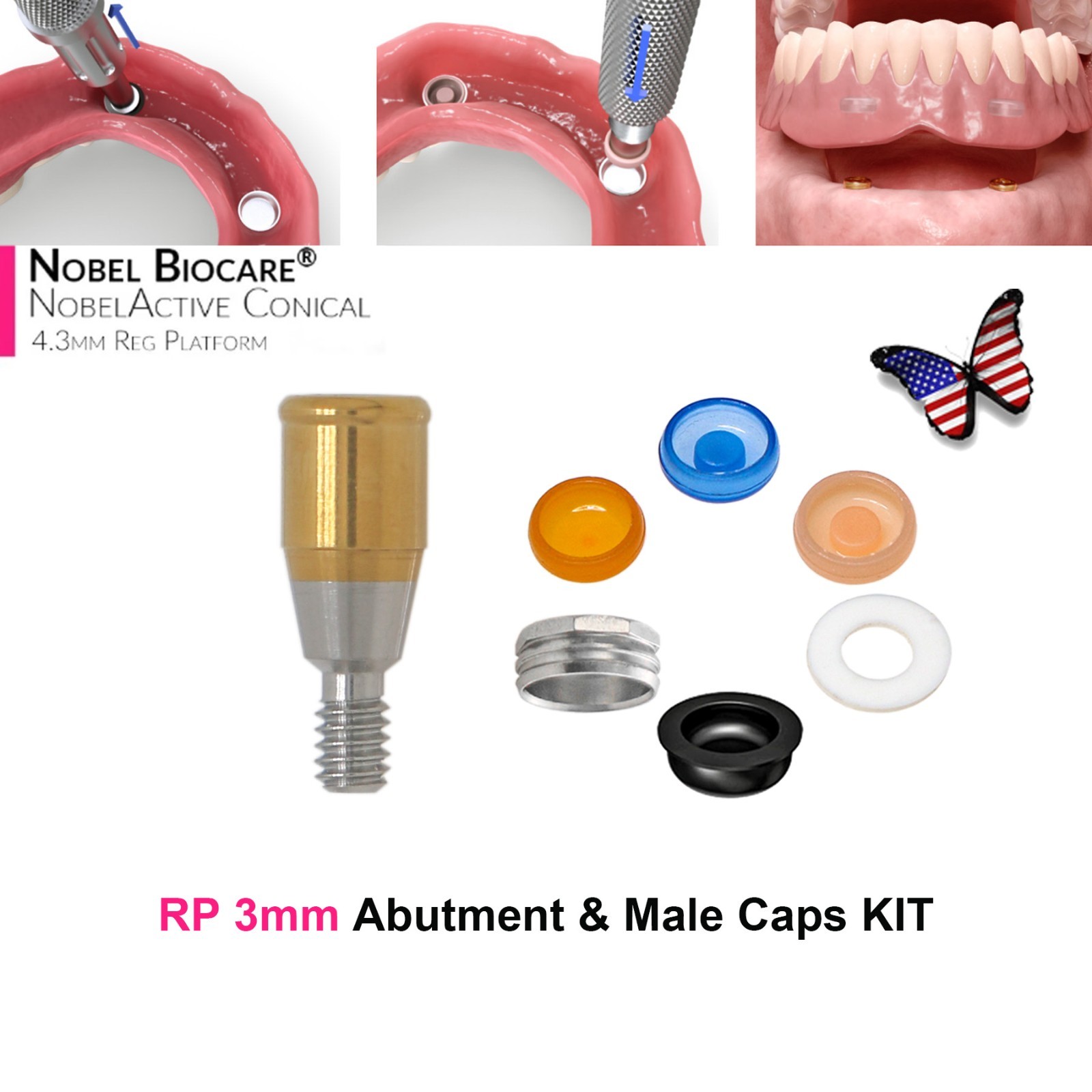

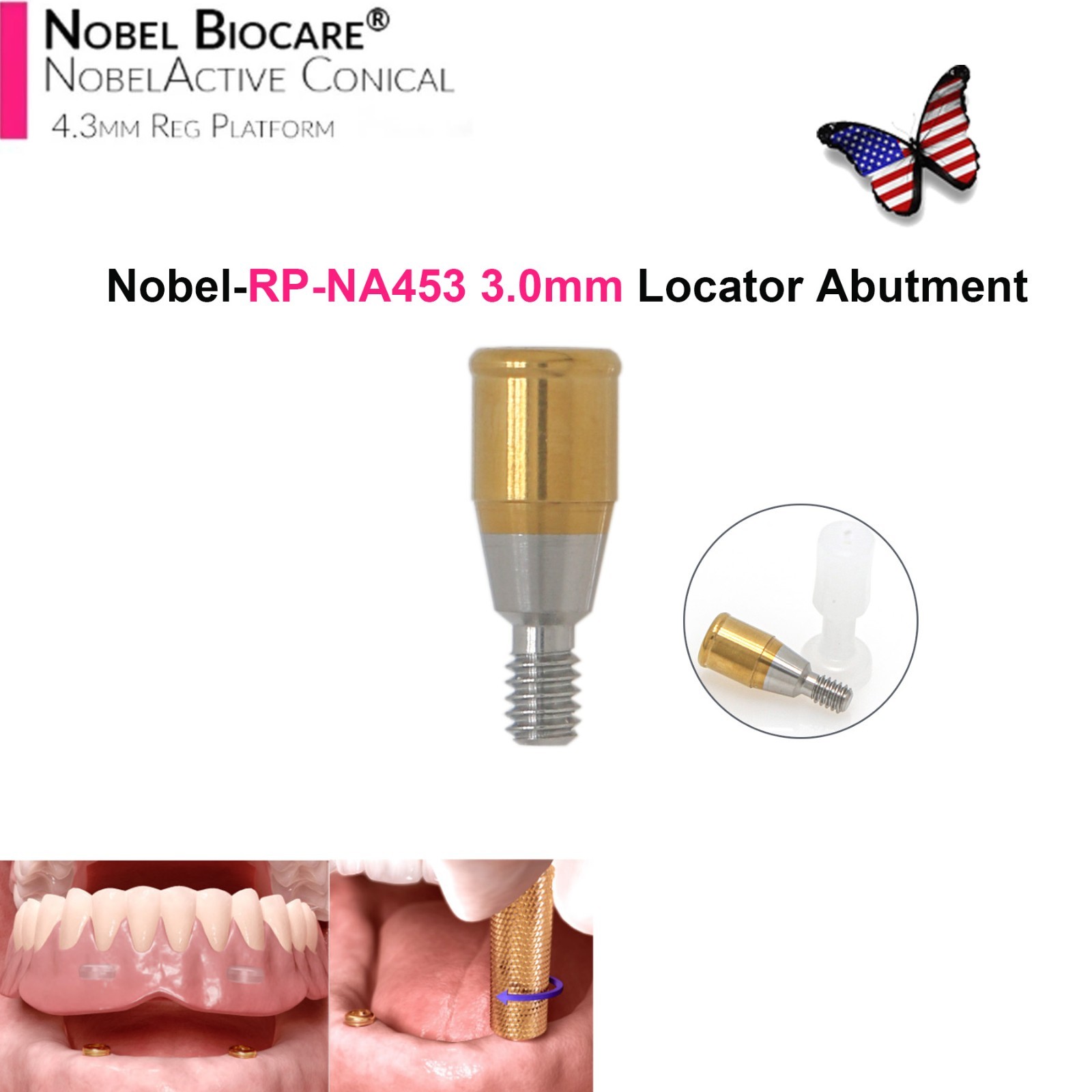

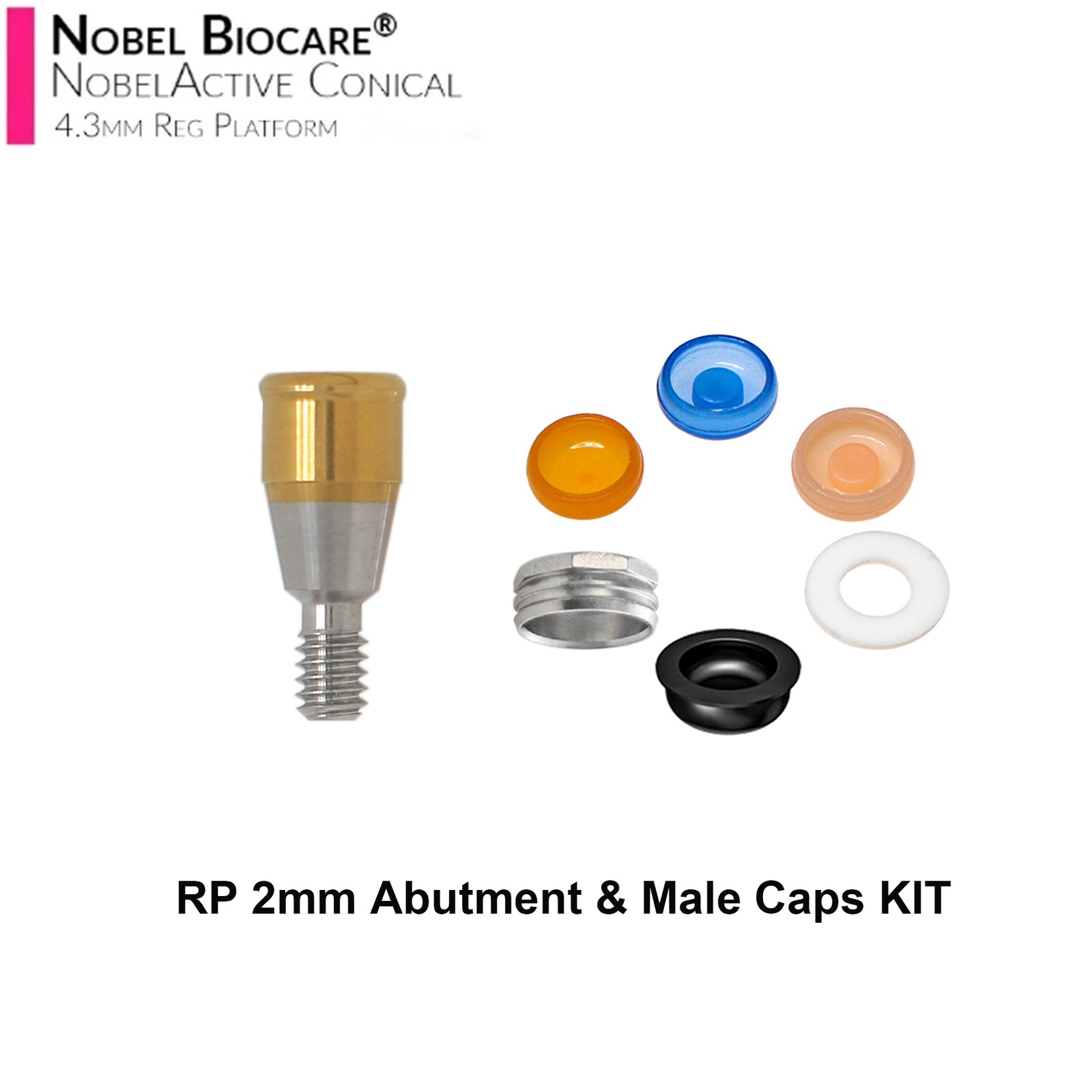

Nobel Regular Platform (4.3mm Dia)

• NA451 – 1.0mm

• NA452 – 2.0mm

• NA453 – 3.0mm

• NA454 – 4.0mm

• NA455 – 5.0mm

---

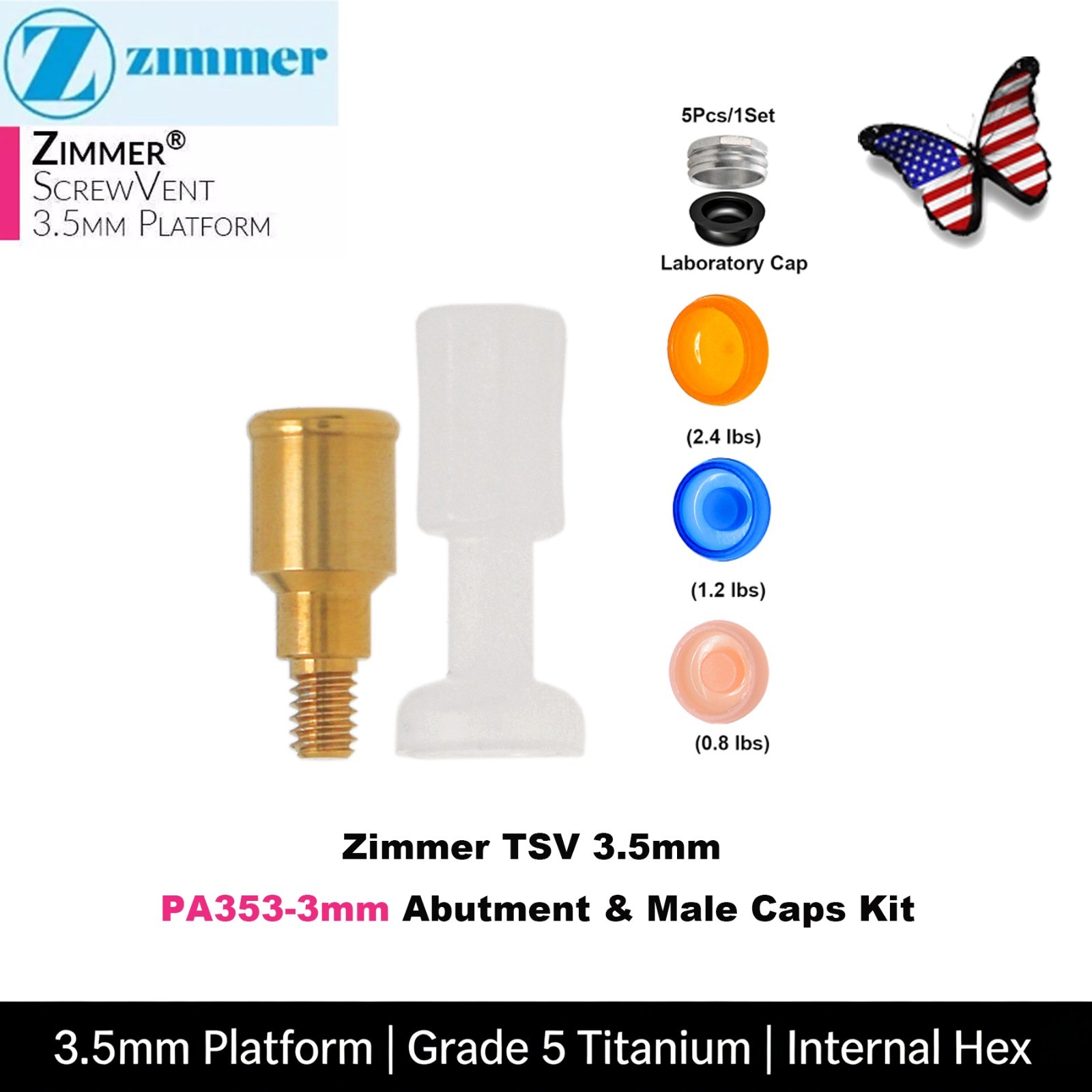

🔹 D. Zimmer Screw Vent 3.5

Compatible with Zimmer Screw Vent 3.5 / BEGO / MIS / Cortex / Adin

• PA351 – 1.0mm

• PA352 – 2.0mm

• PA353 – 3.0mm

• PA354 – 4.0mm

• PA355 – 5.0mm

---

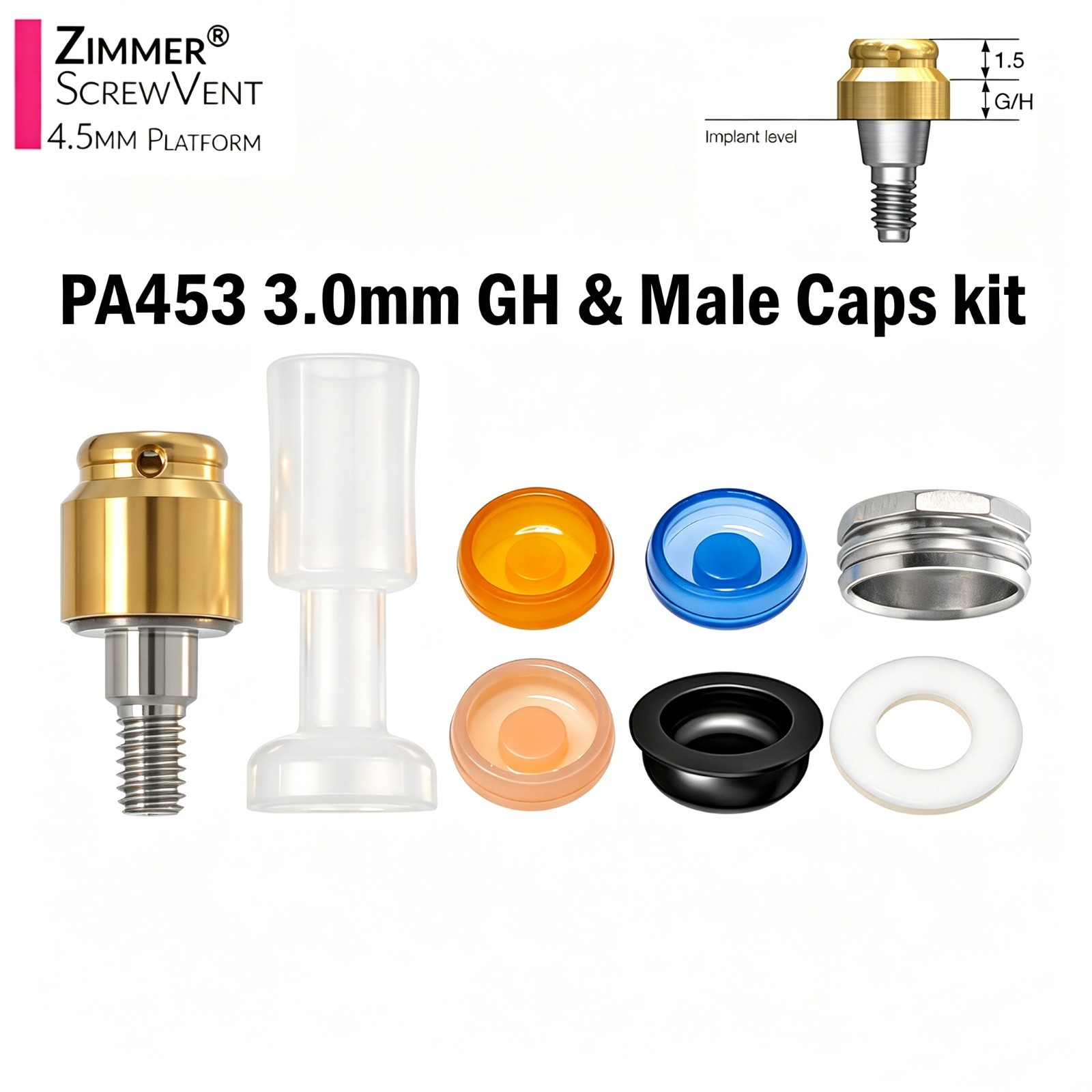

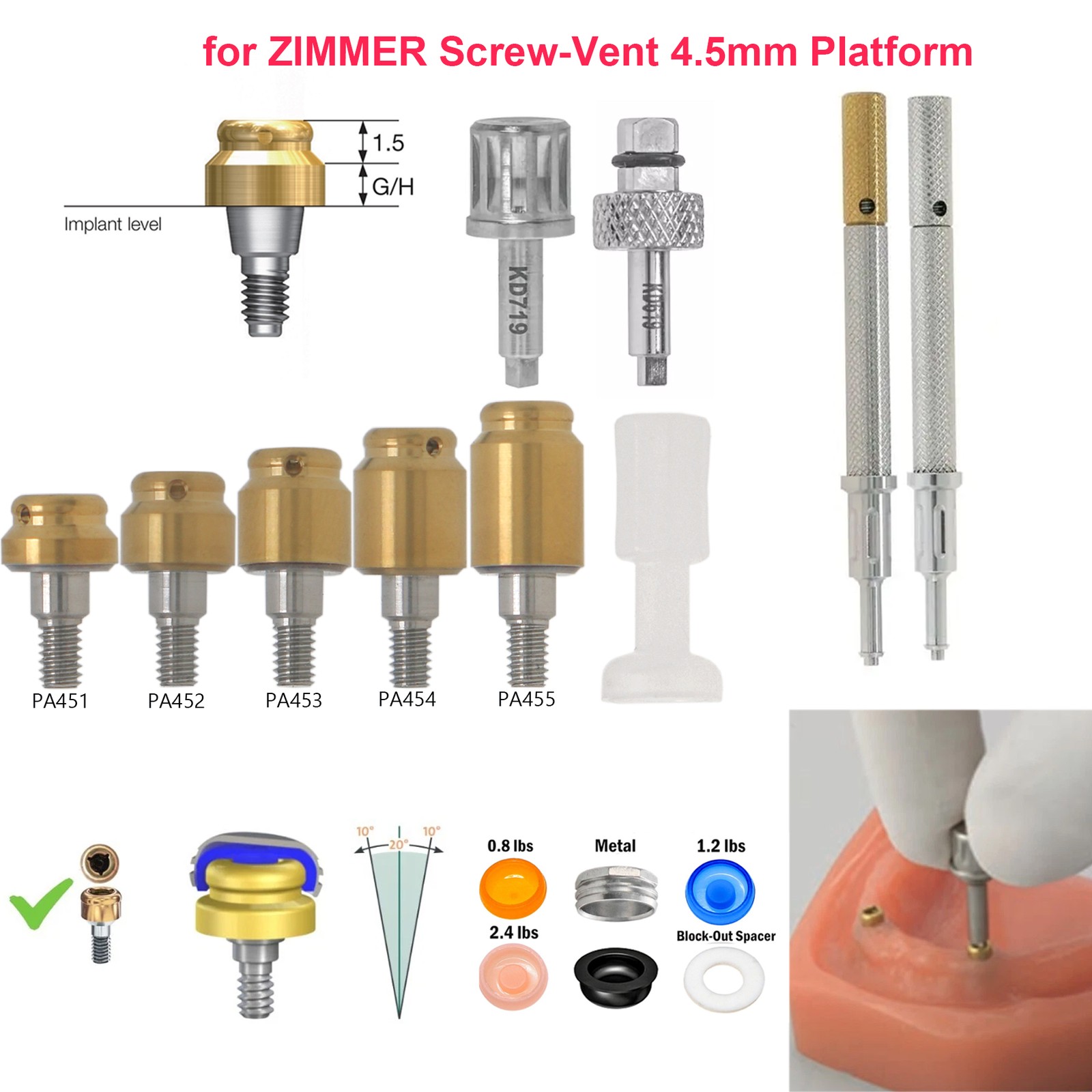

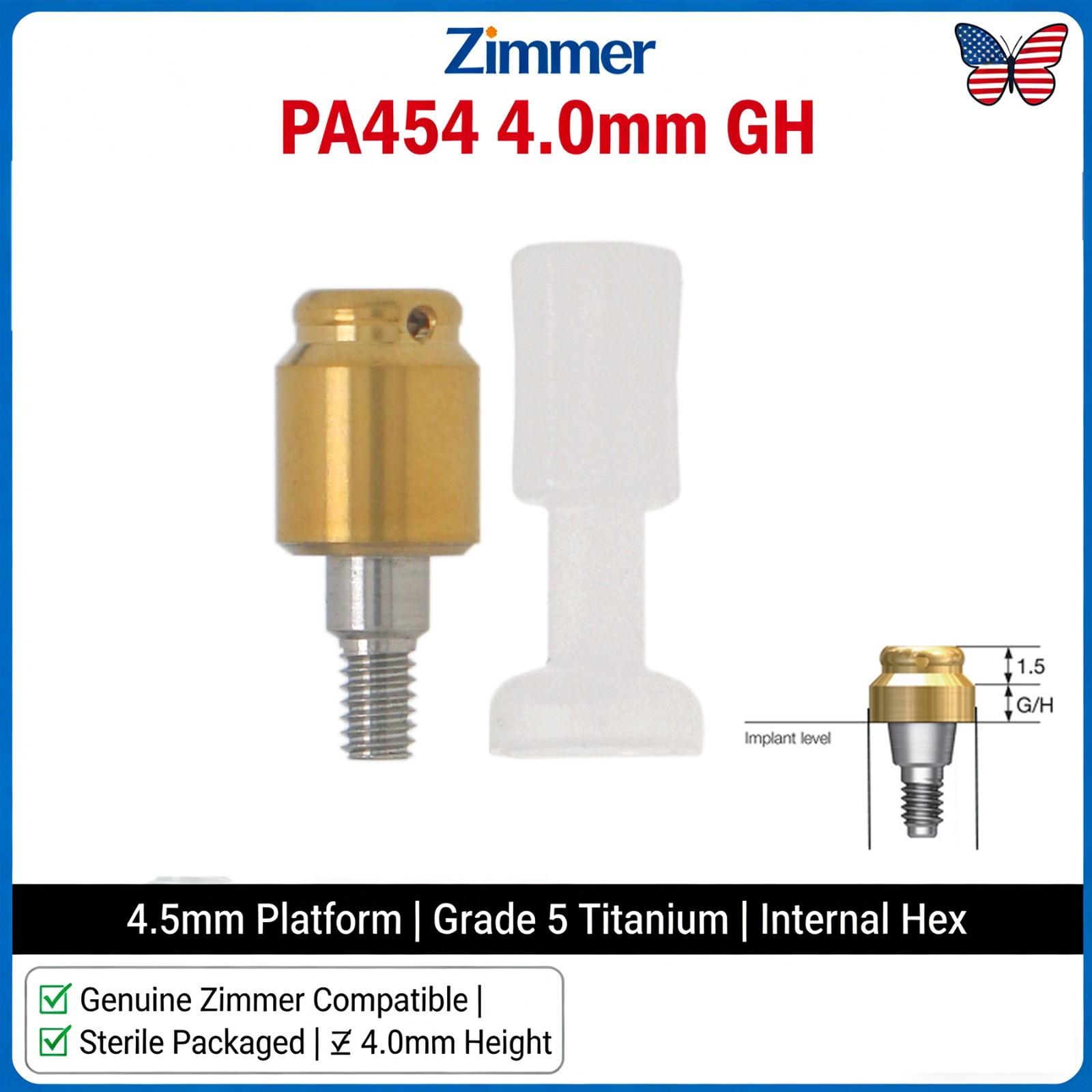

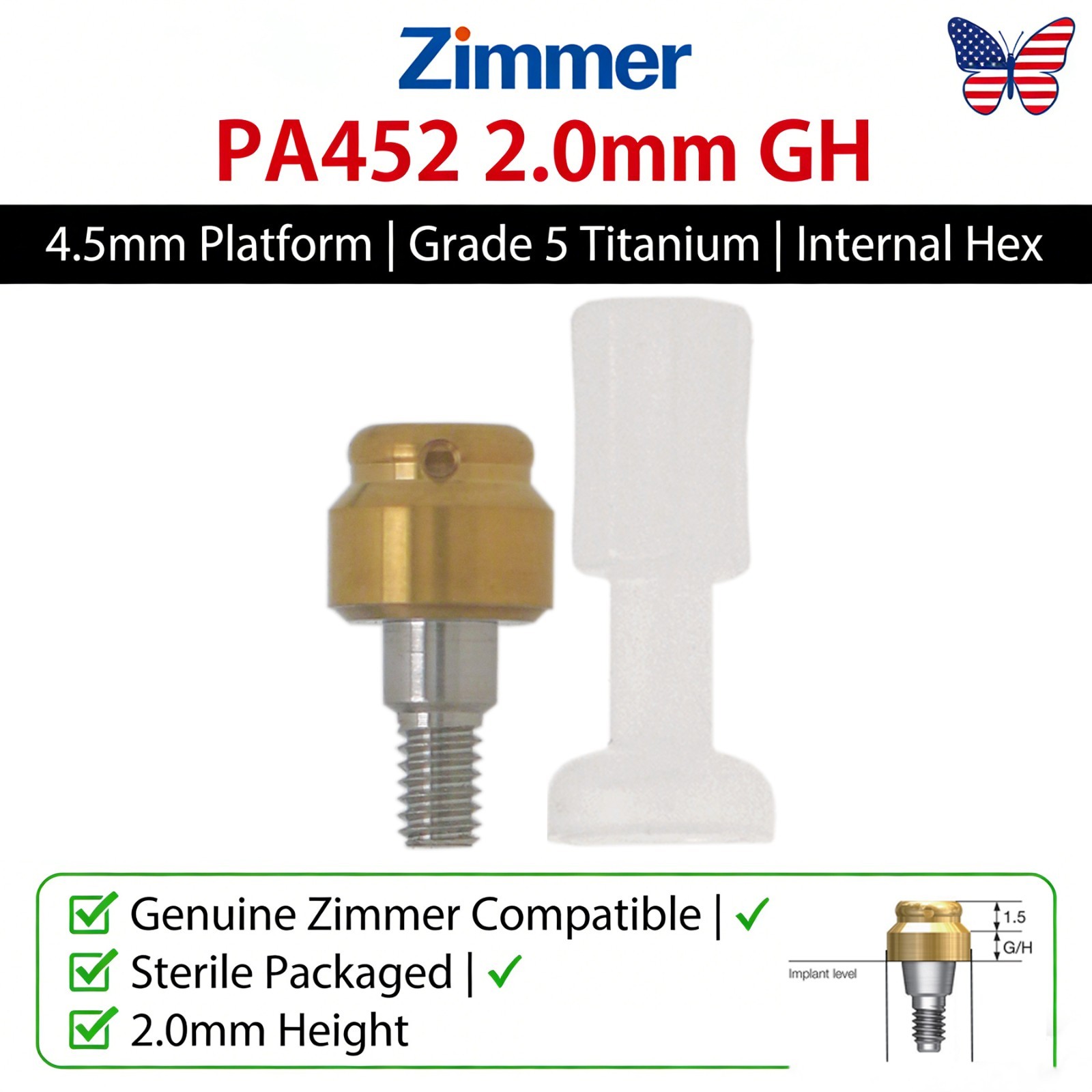

🔹 E. Zimmer Screw Vent 4.5

Compatible with Zimmer Screw Vent 4.5

• PA451 – 1.0mm

• PA452 – 2.0mm

• PA453 – 3.0mm

• PA454 – 4.0mm

• PA455 – 5.0mm

---

🔧 Product Introduction

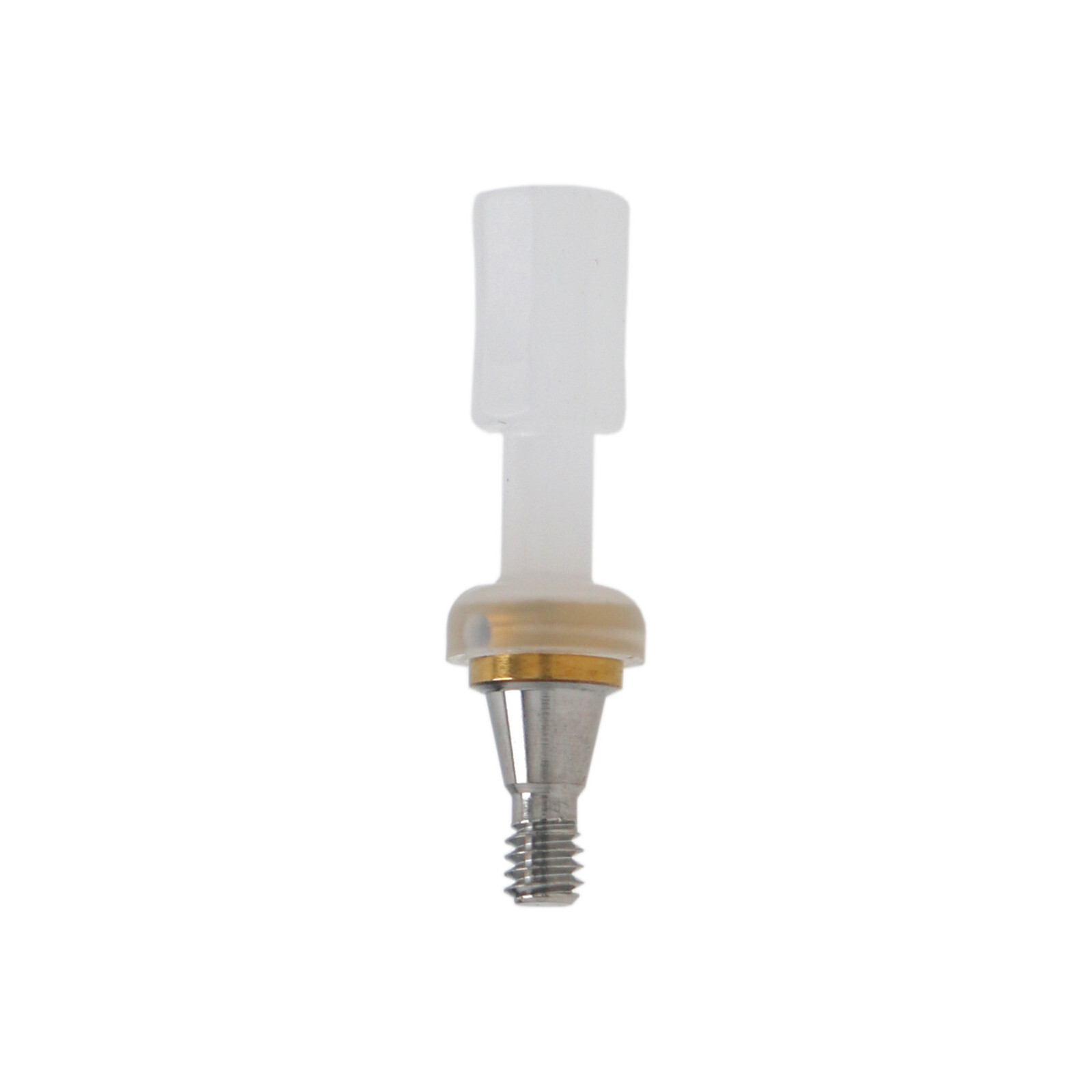

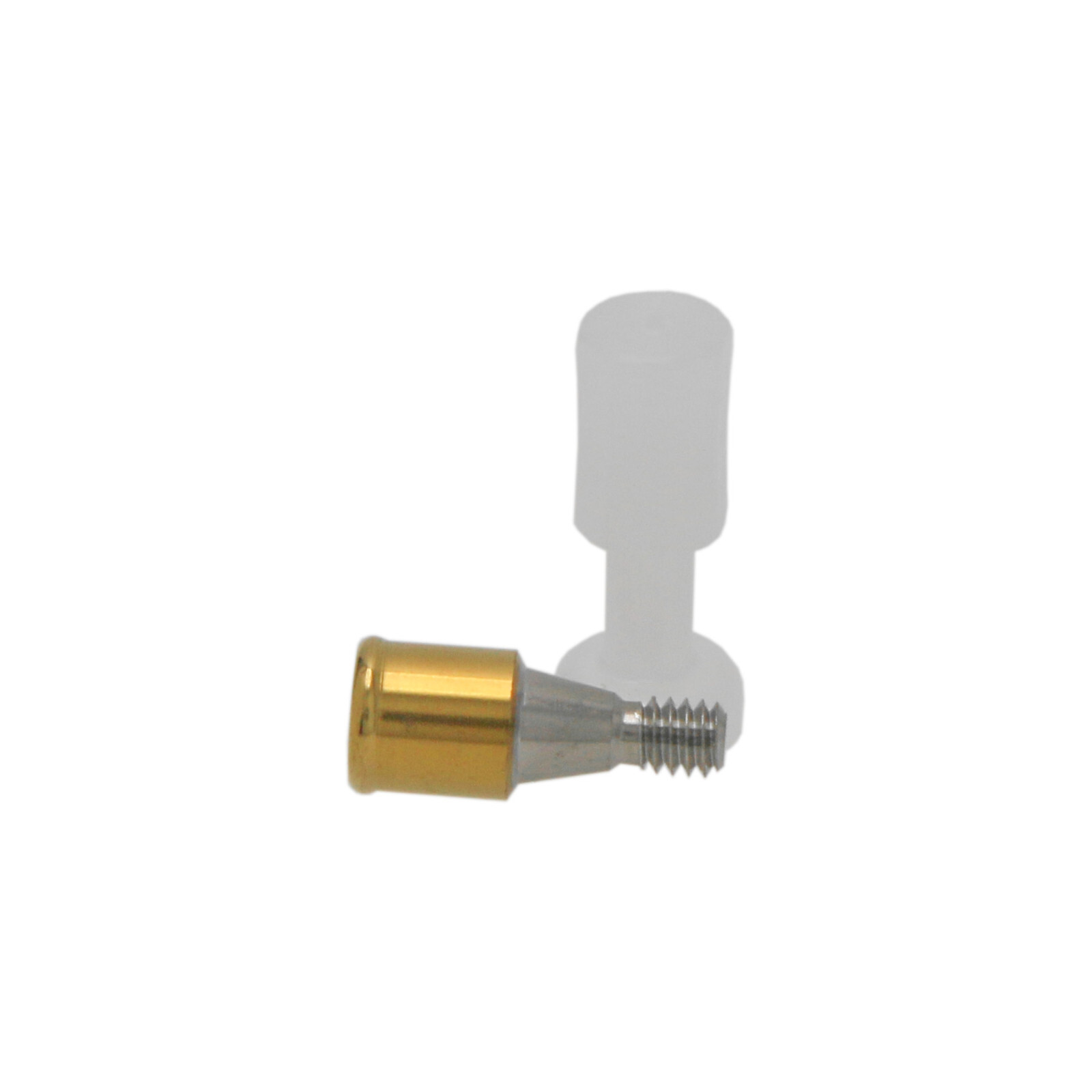

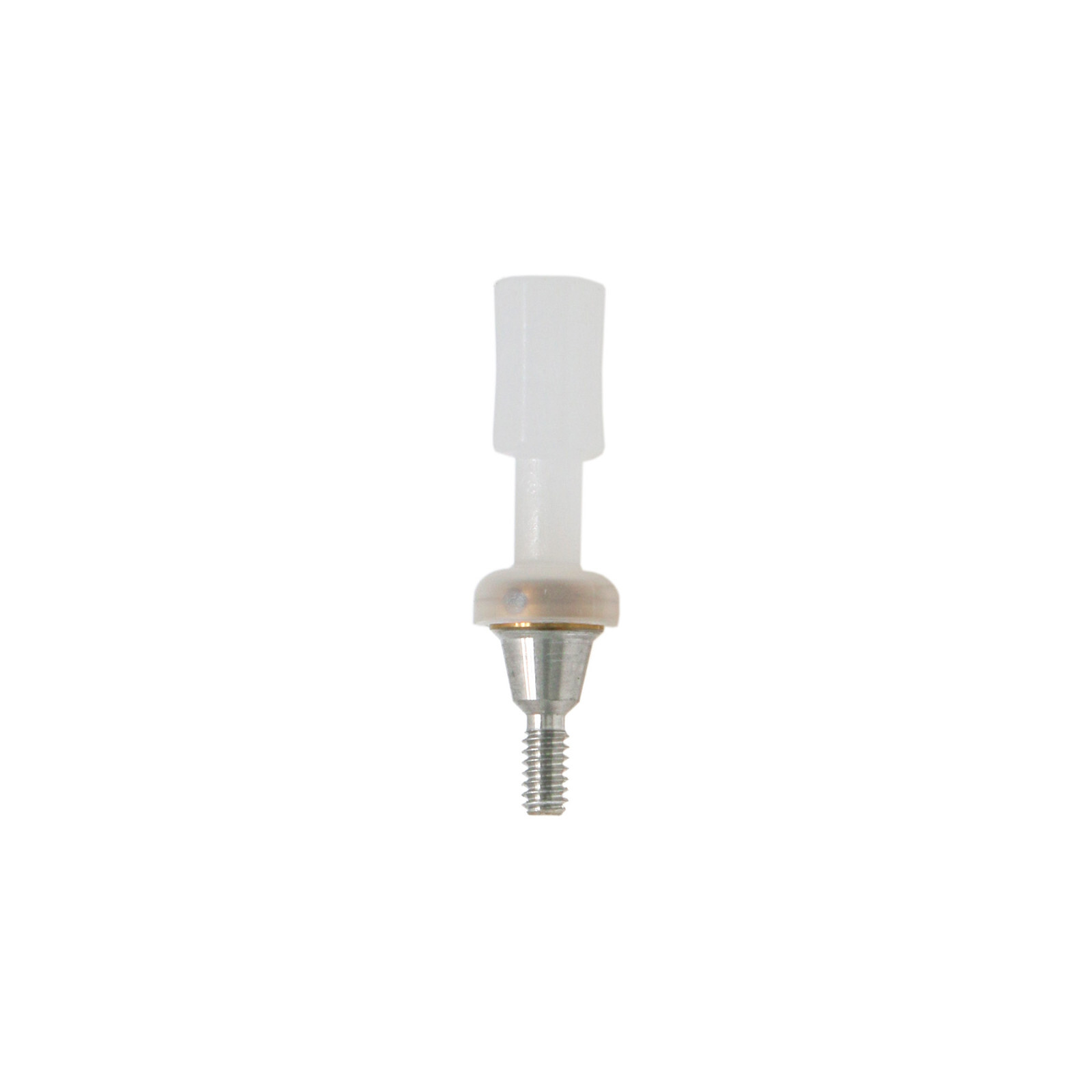

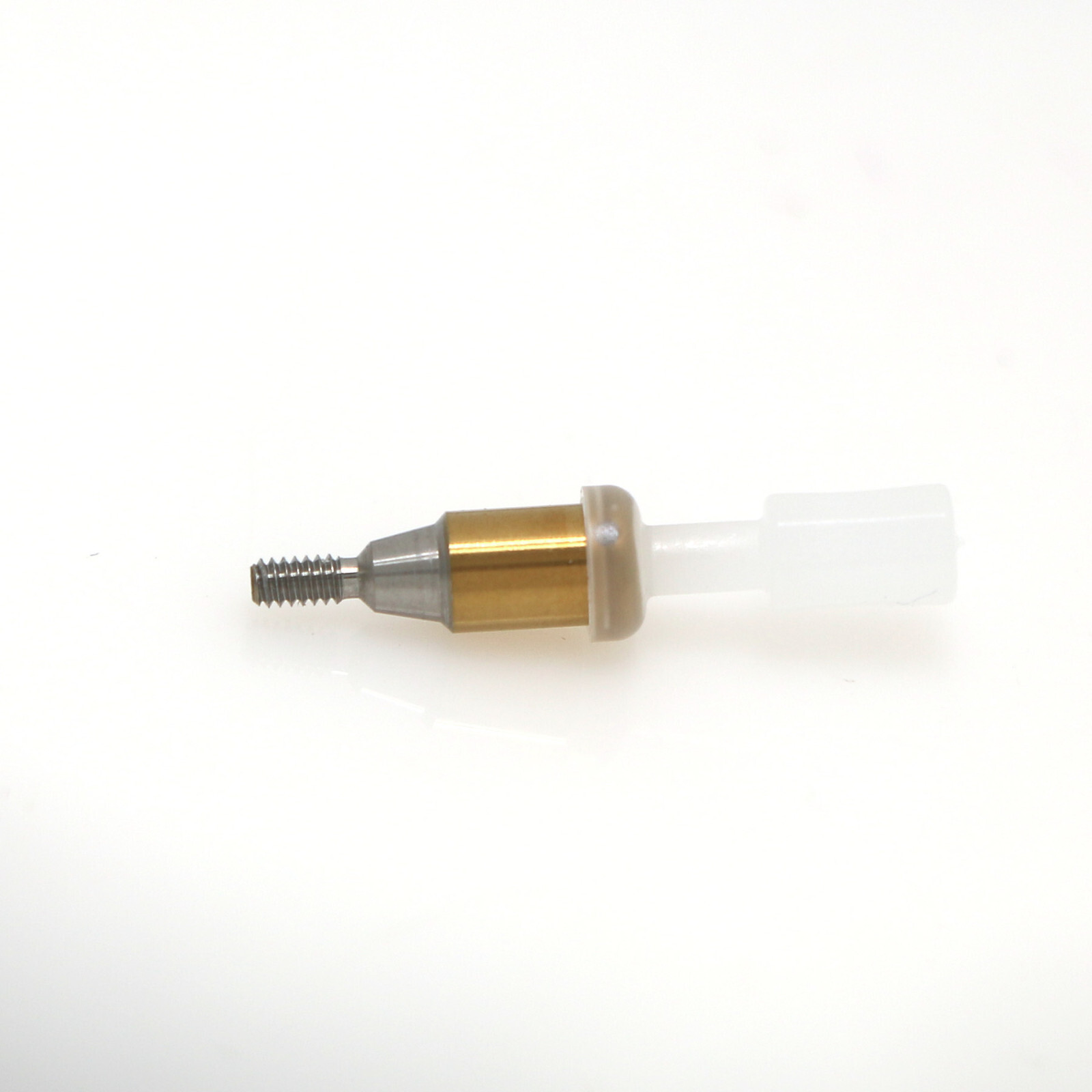

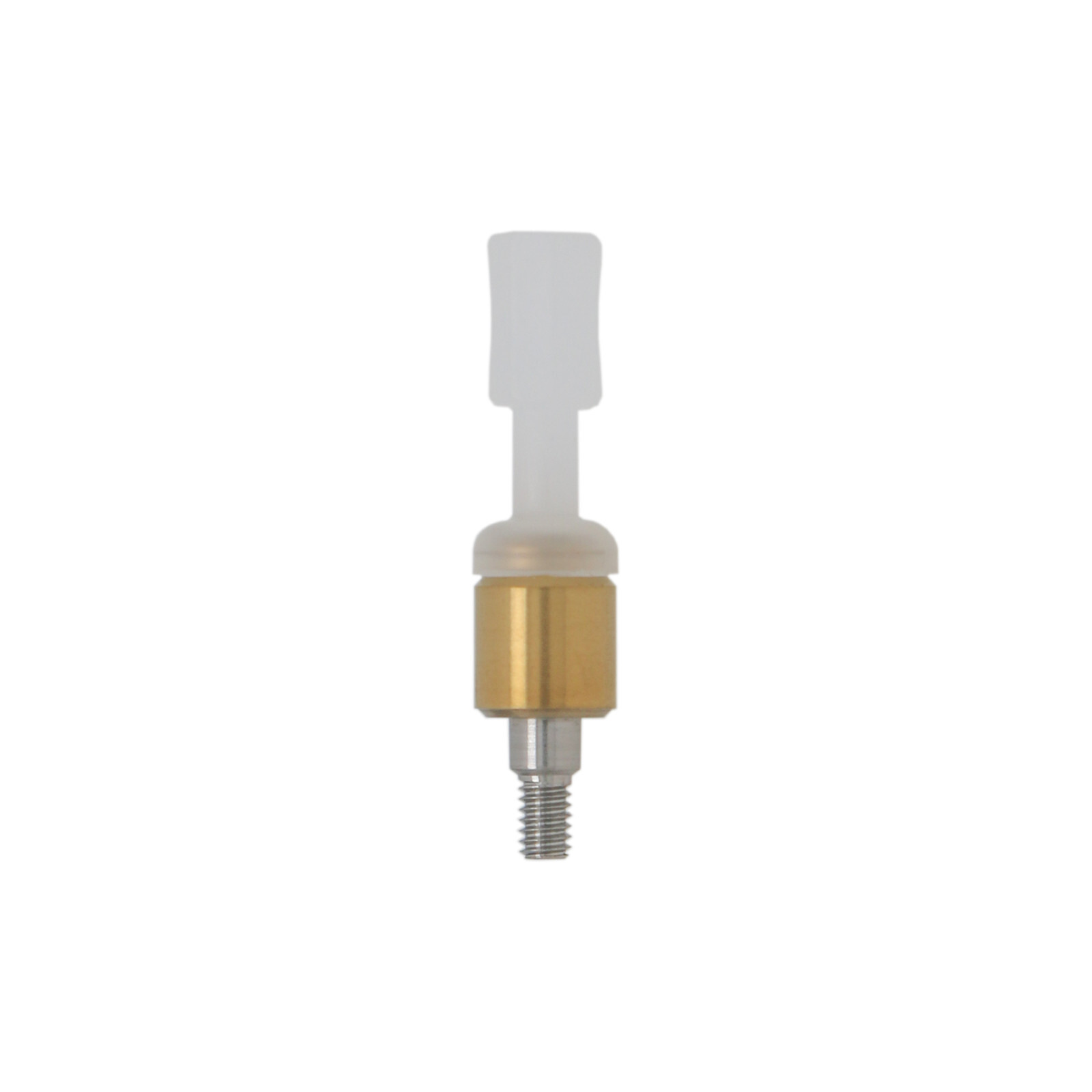

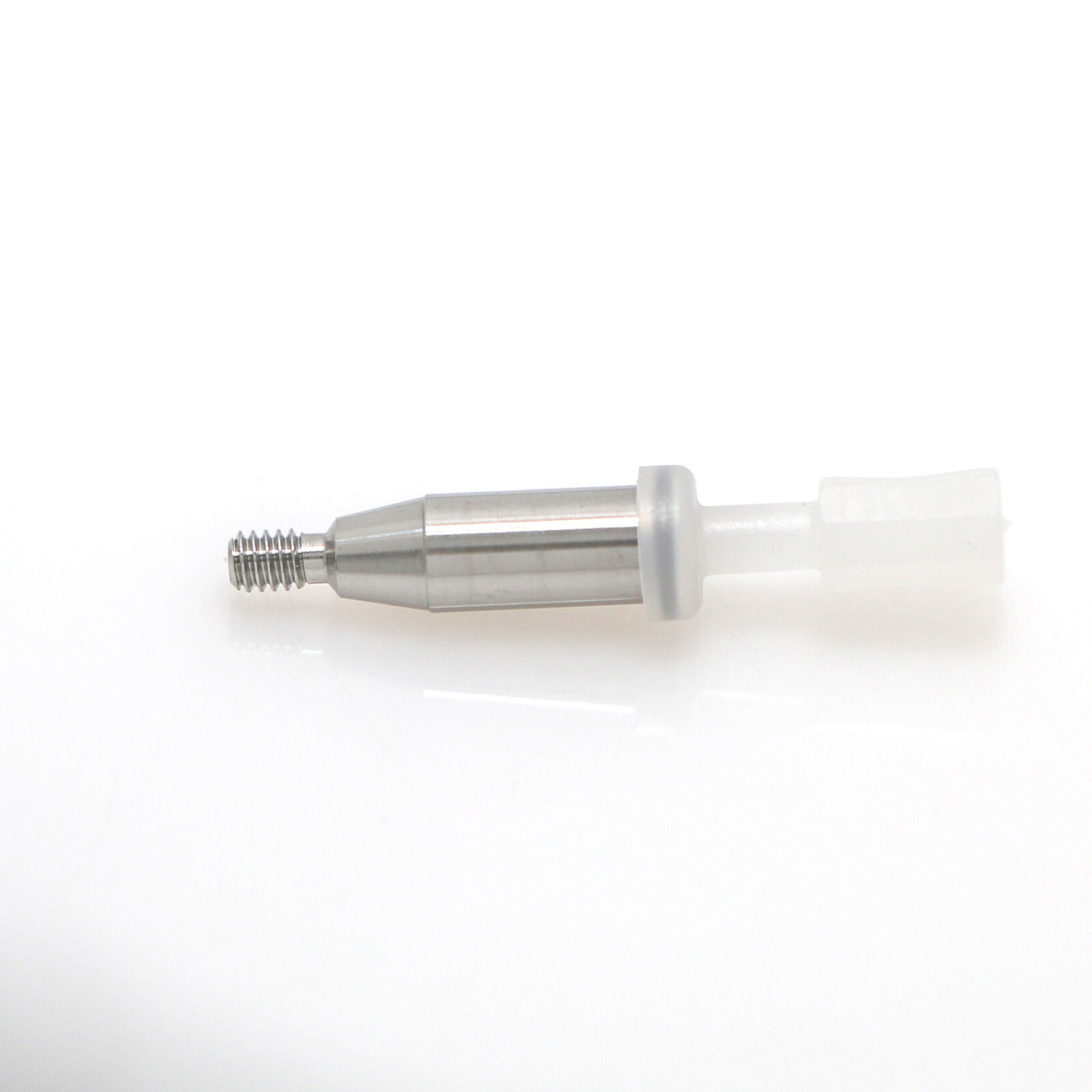

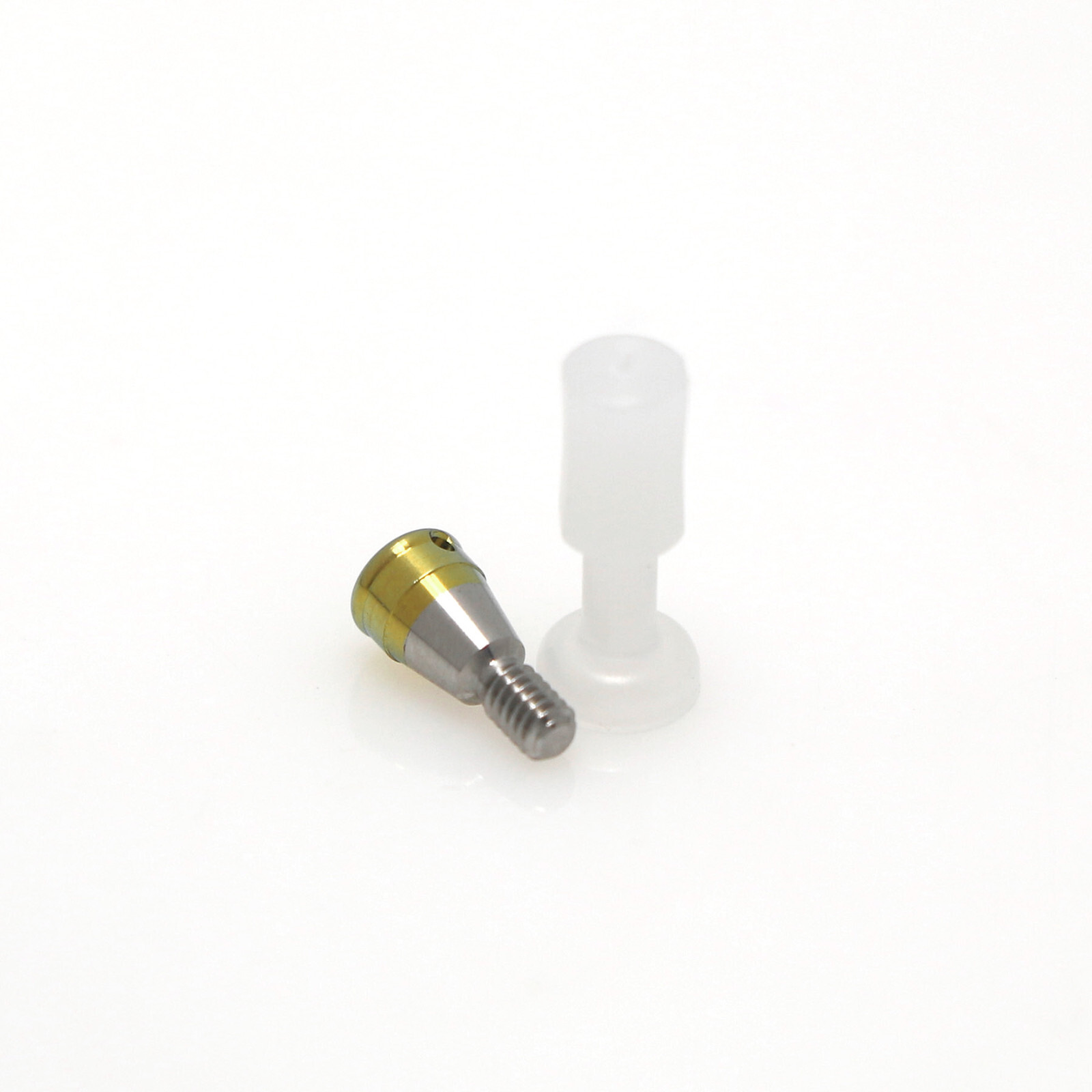

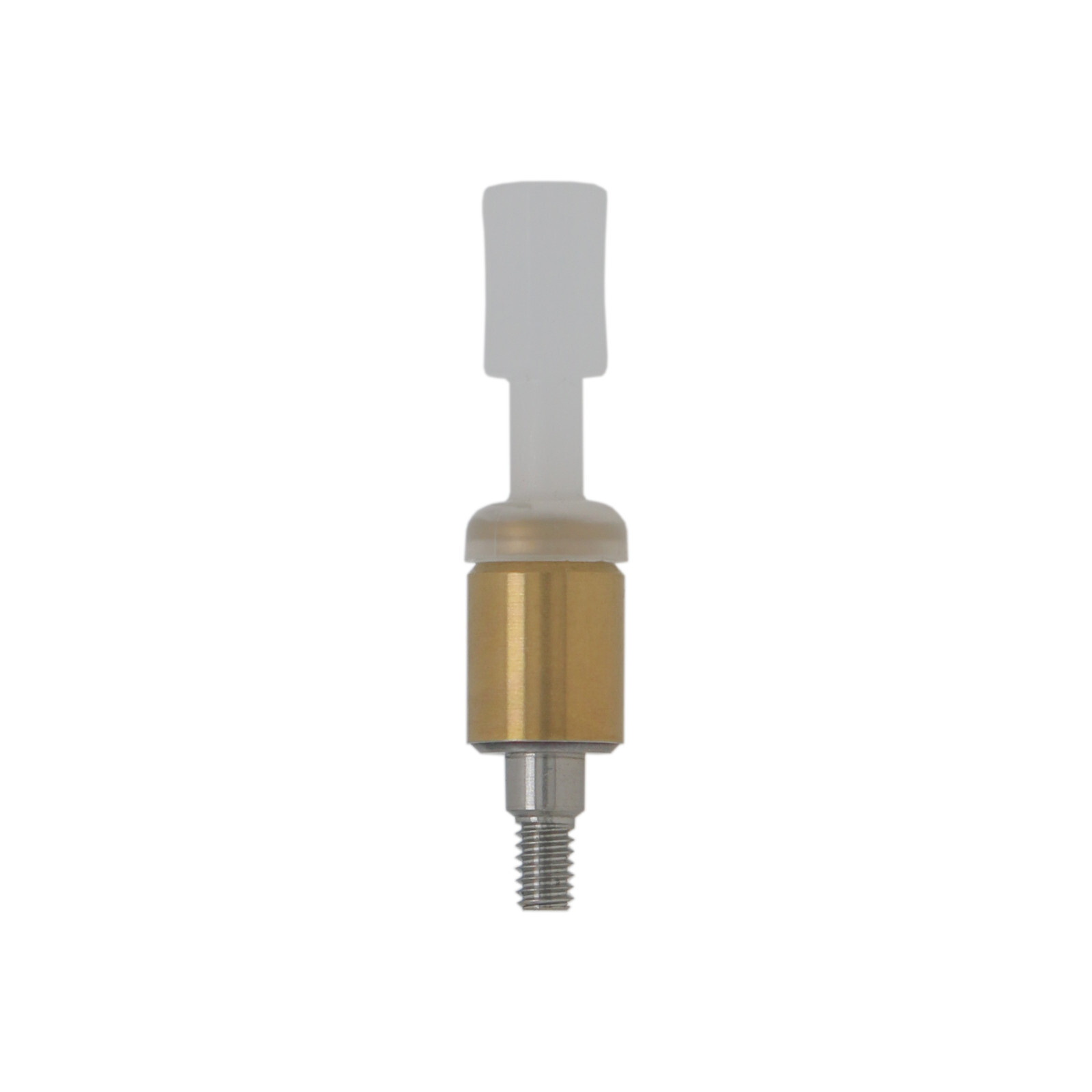

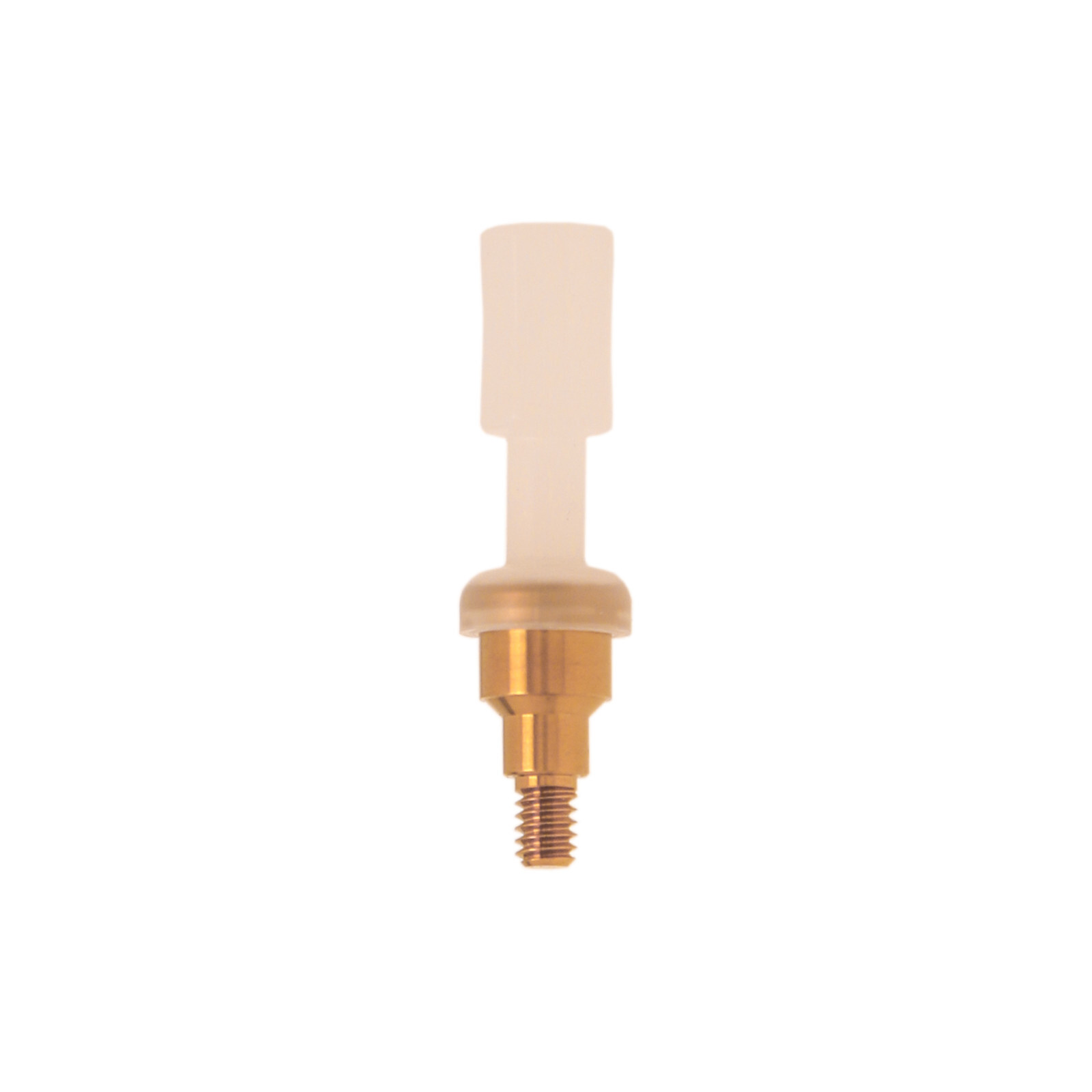

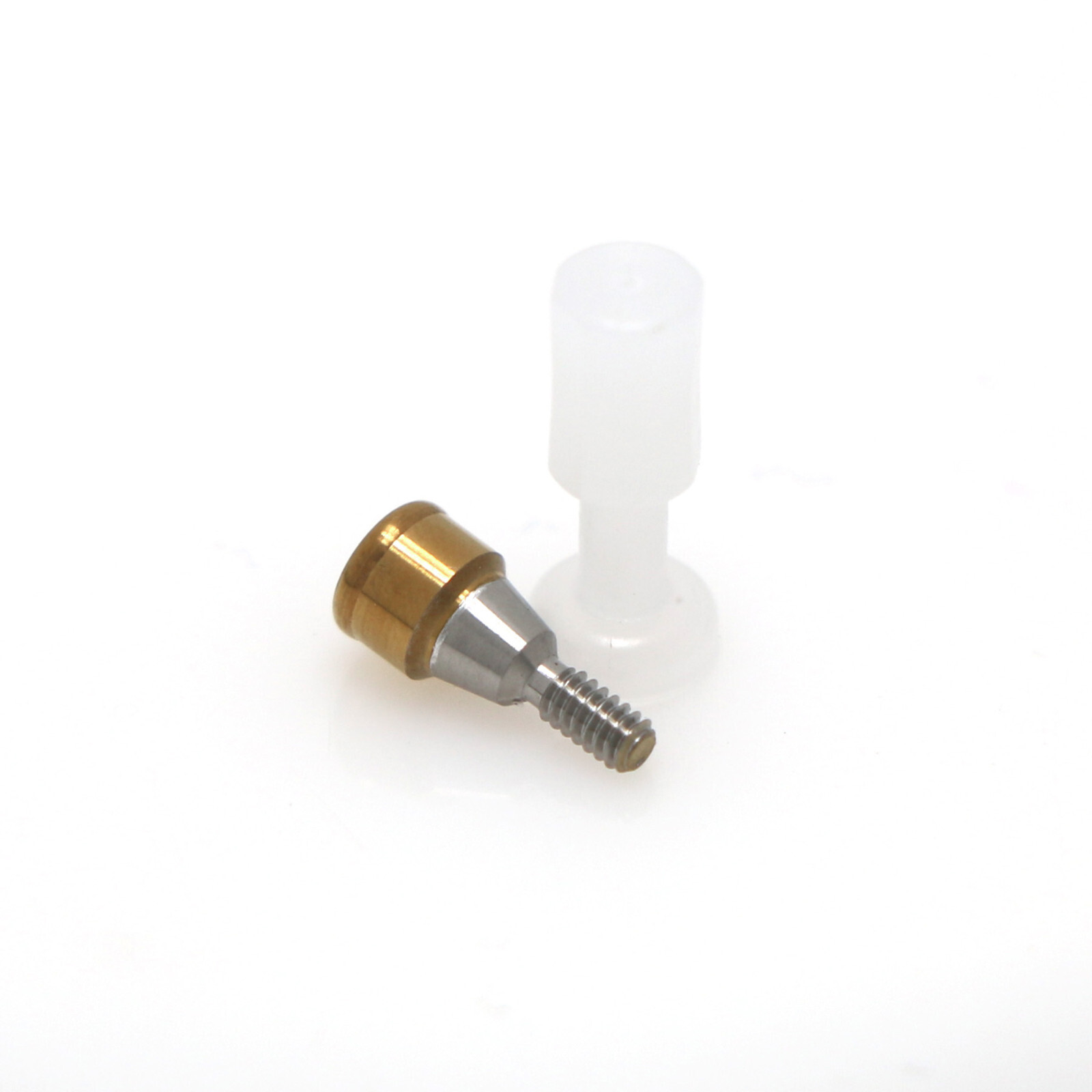

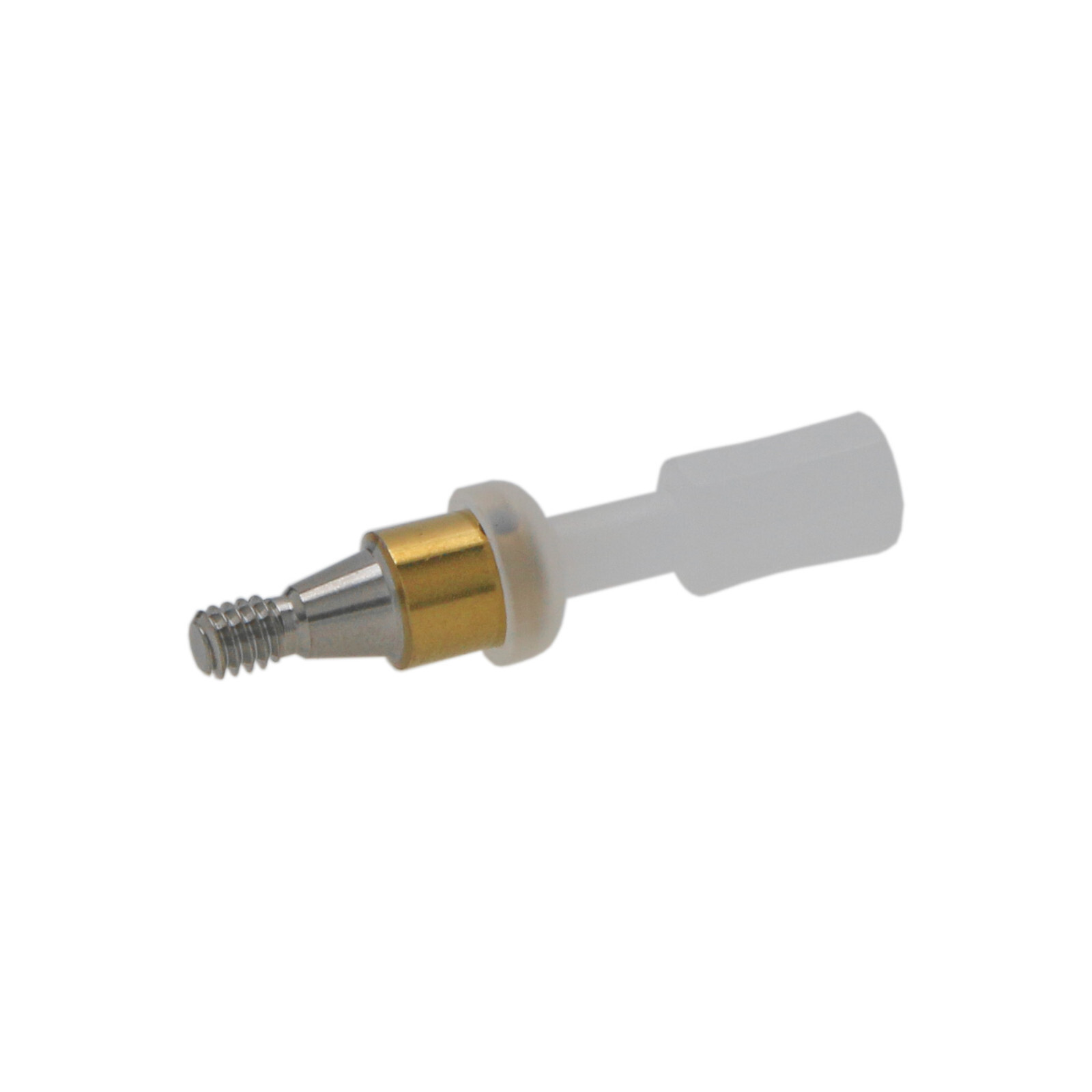

• All overdenture abutments come pre-mounted with a placement tool for easy installation.

• Angle compensation up to 40°

• 1.5mm low profile for stable retention

• Recommended tightening torque: 30 Ncm

• Classic housing cap & retention insert design

• Made from 5-grade titanium, softer and more aesthetic gold color

• Note: Different batches may have different abutment colors

---

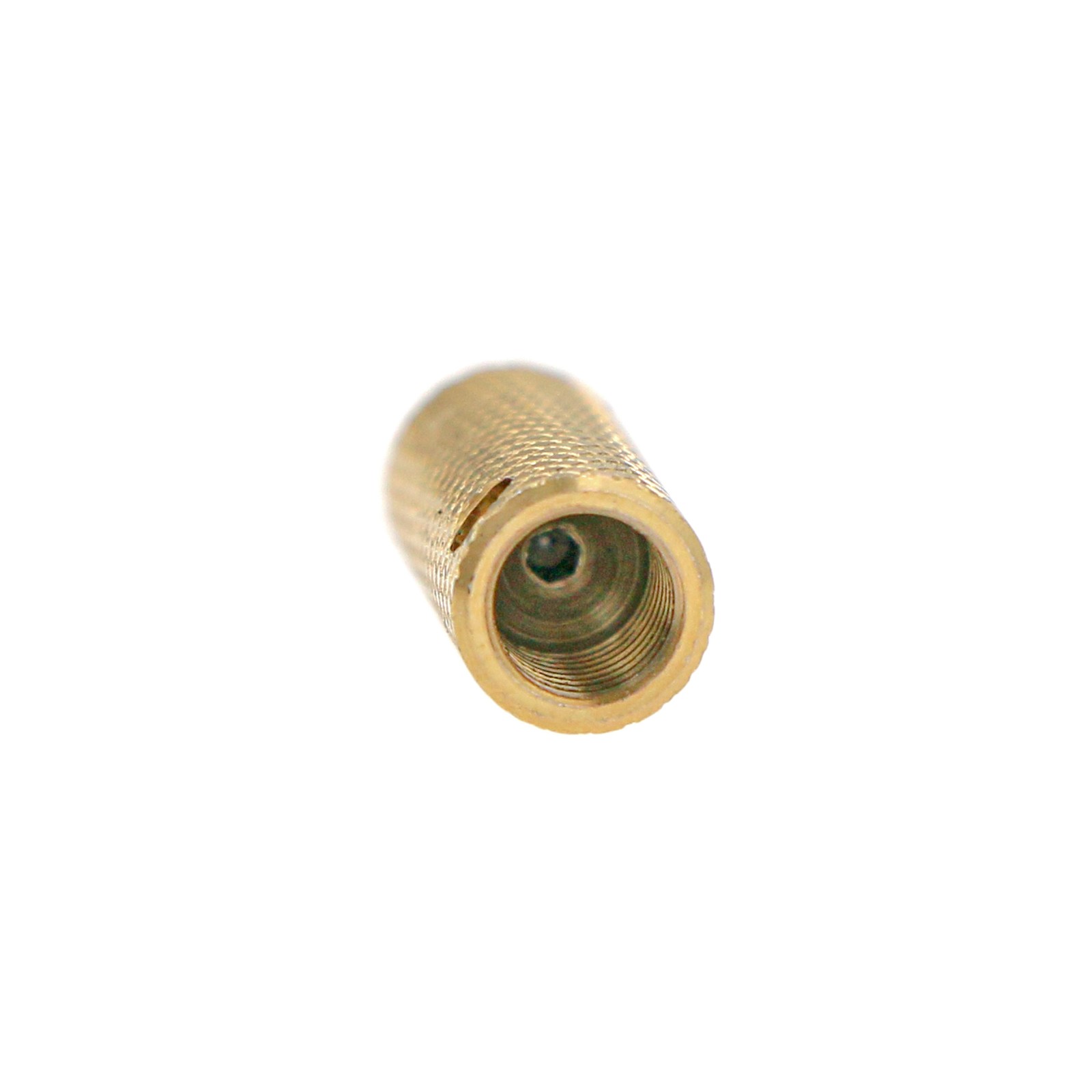

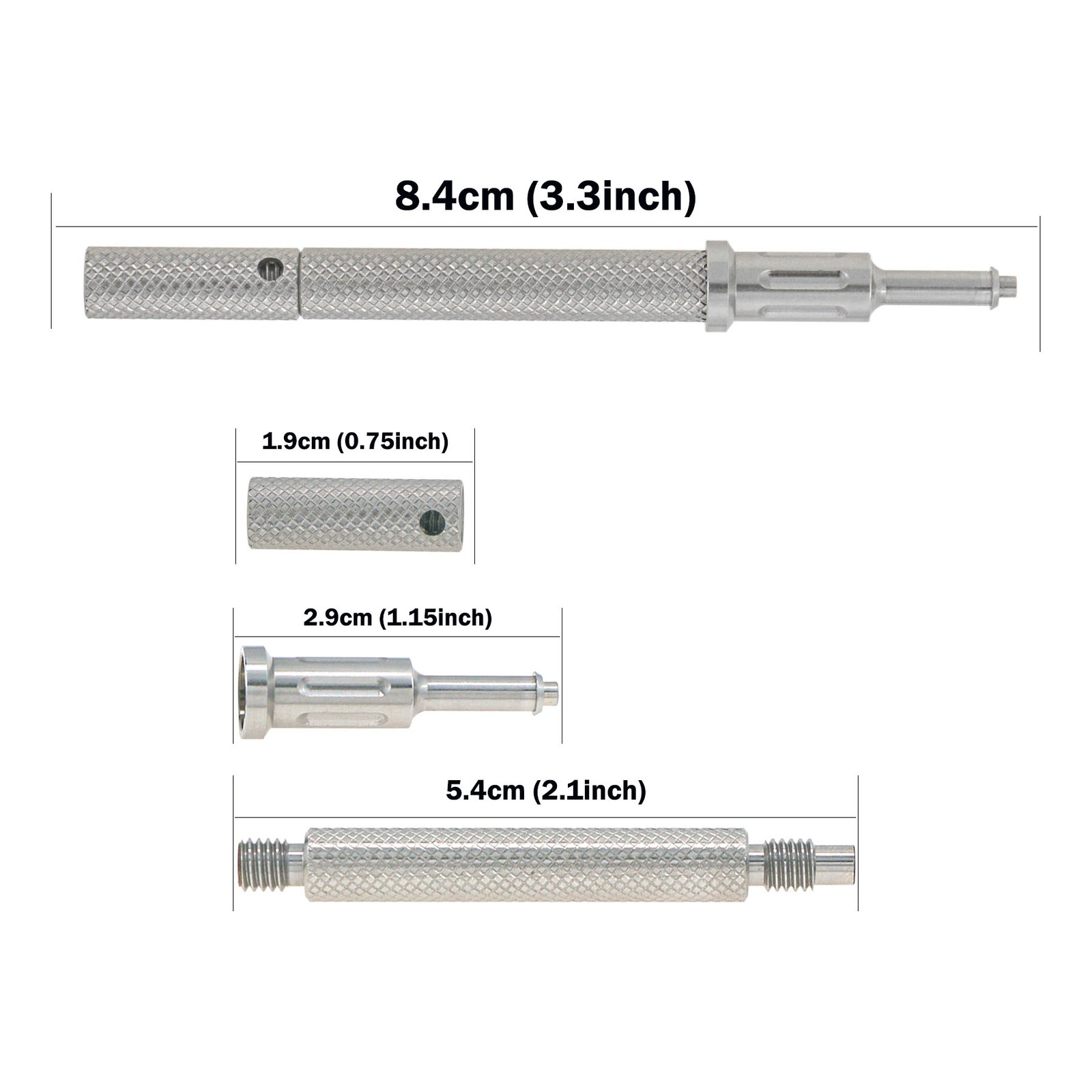

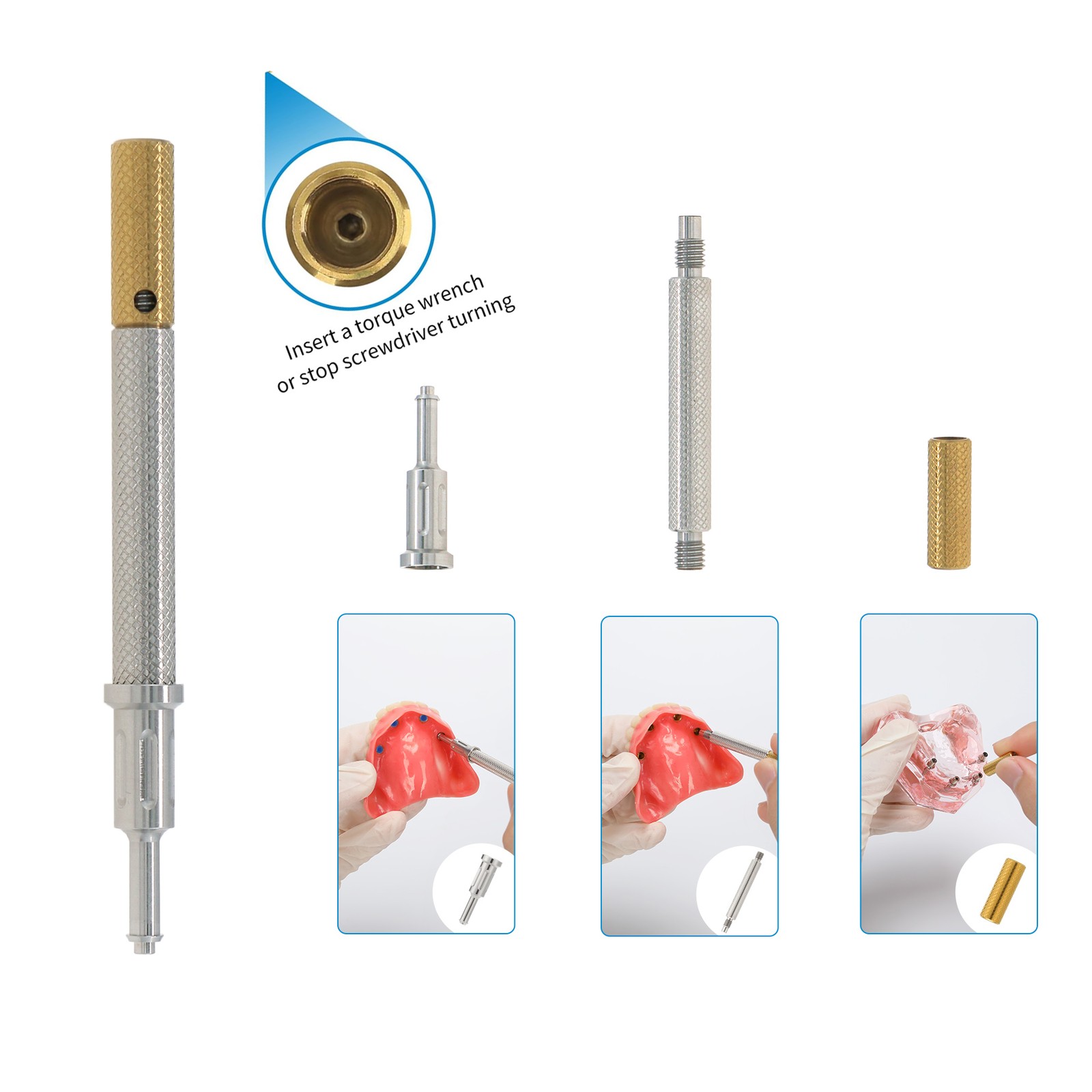

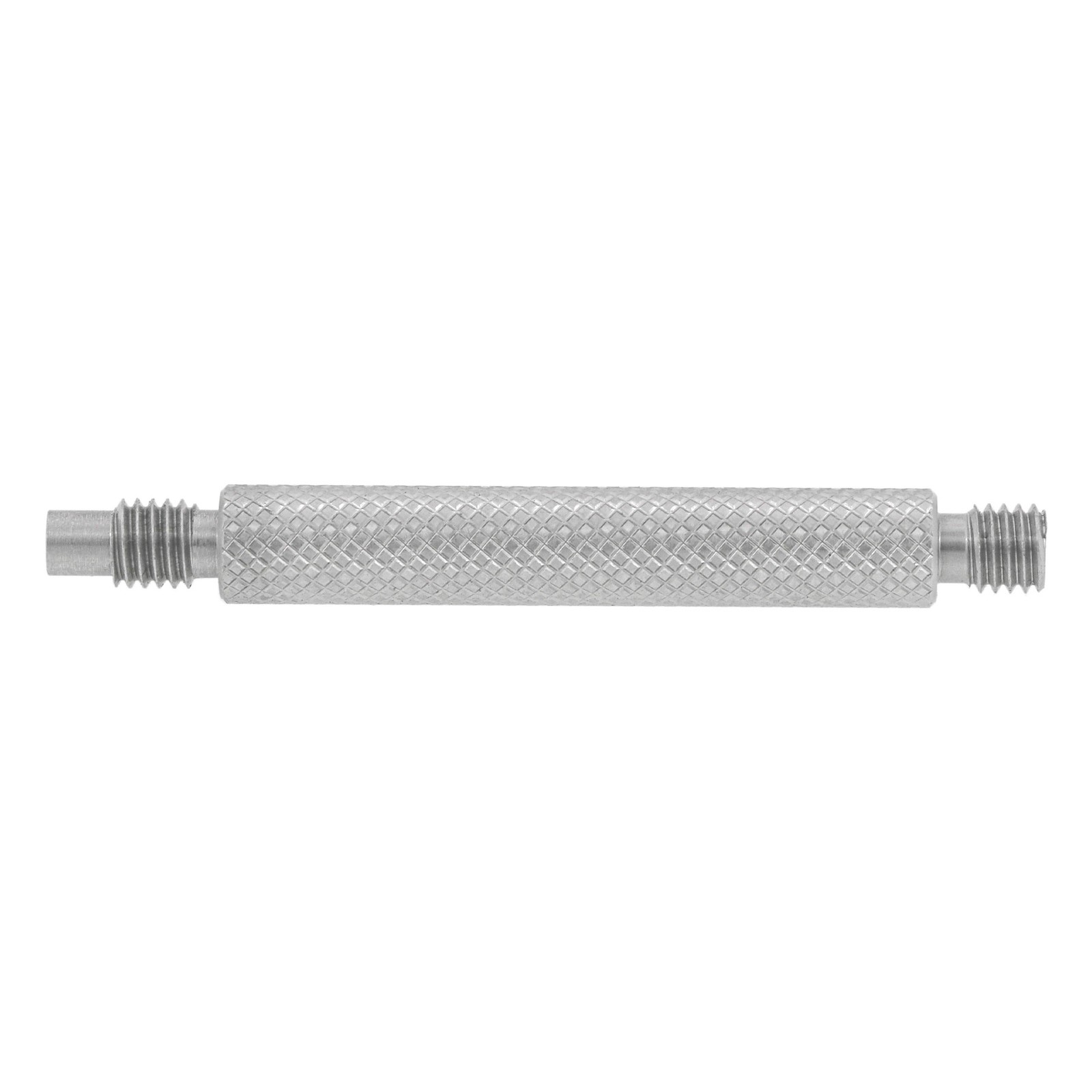

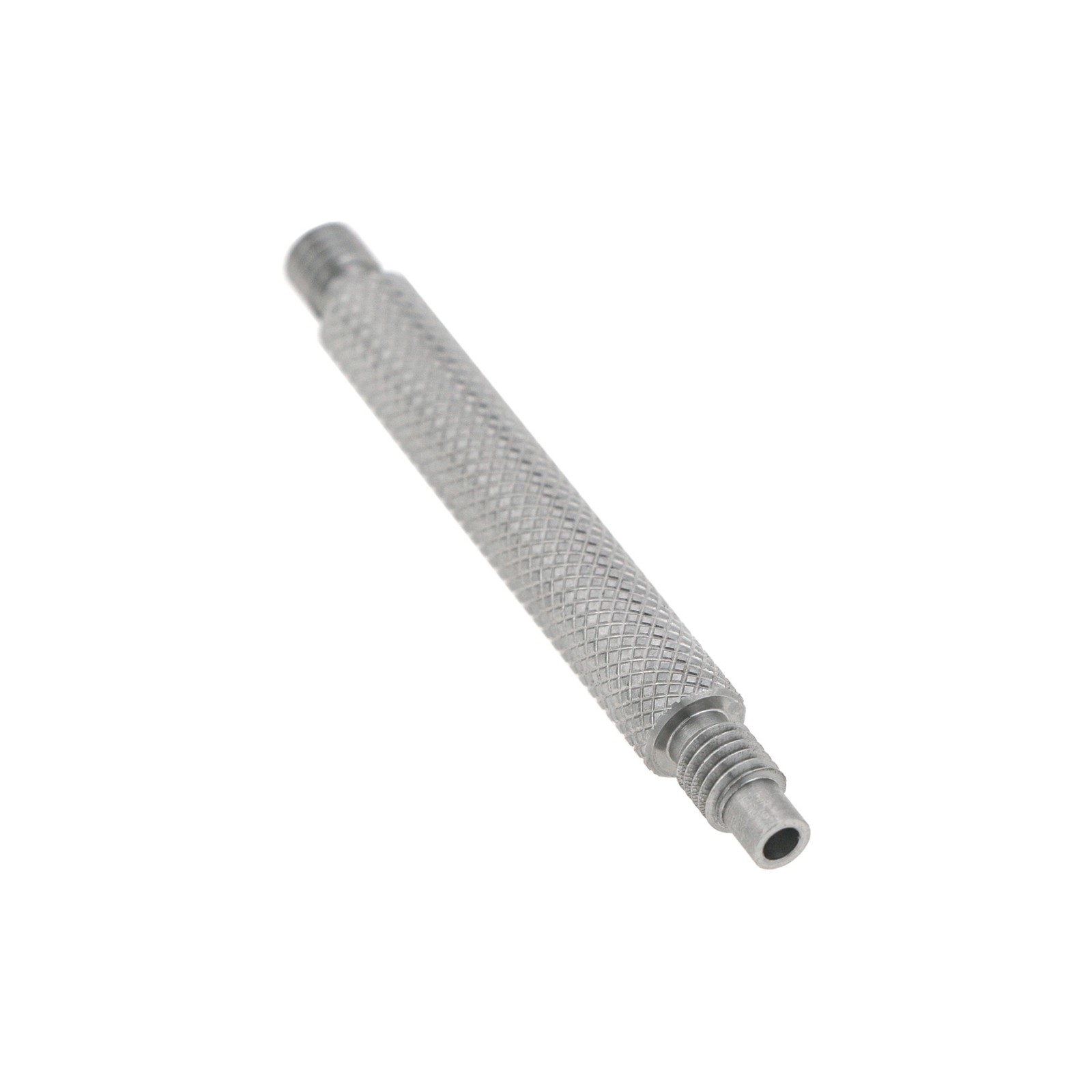

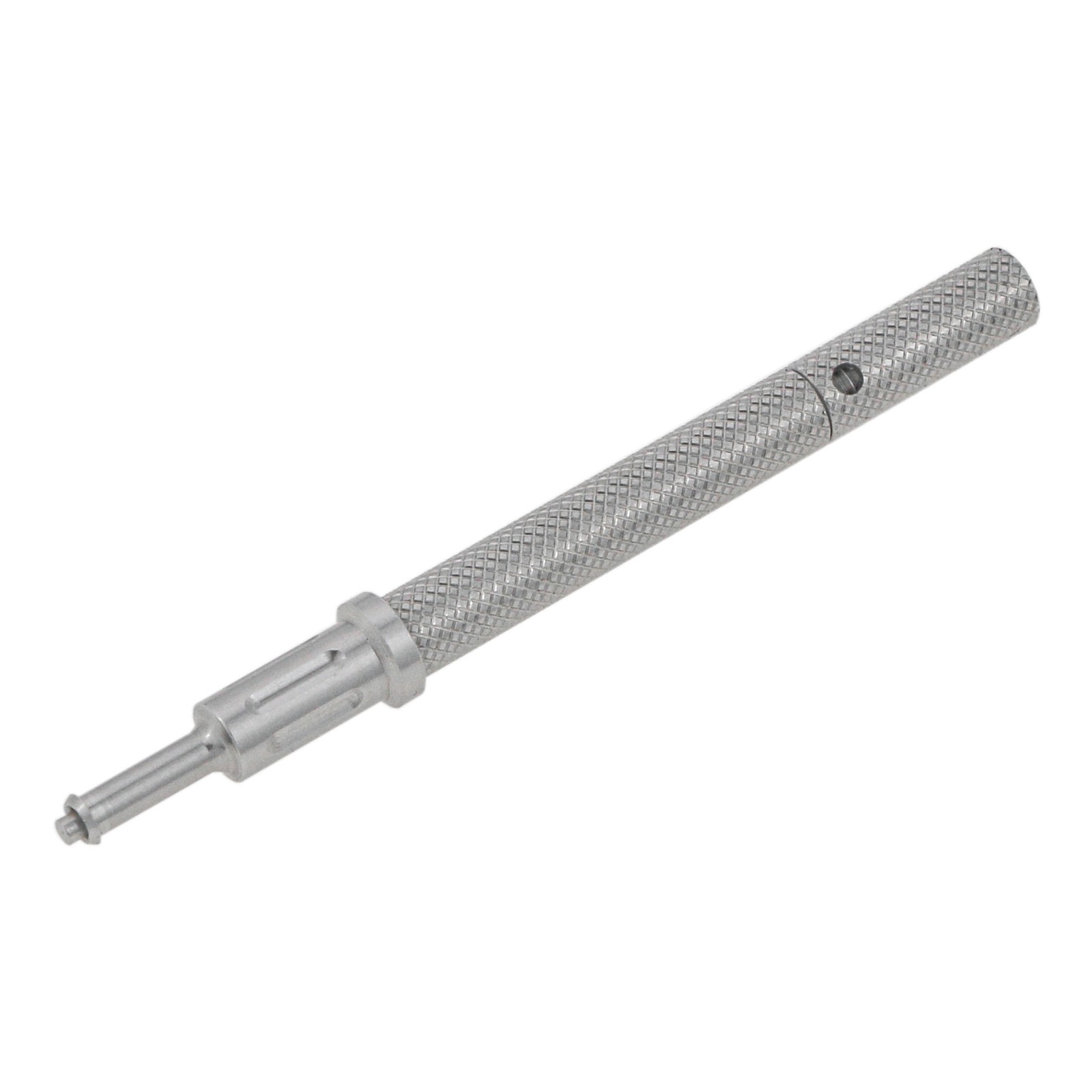

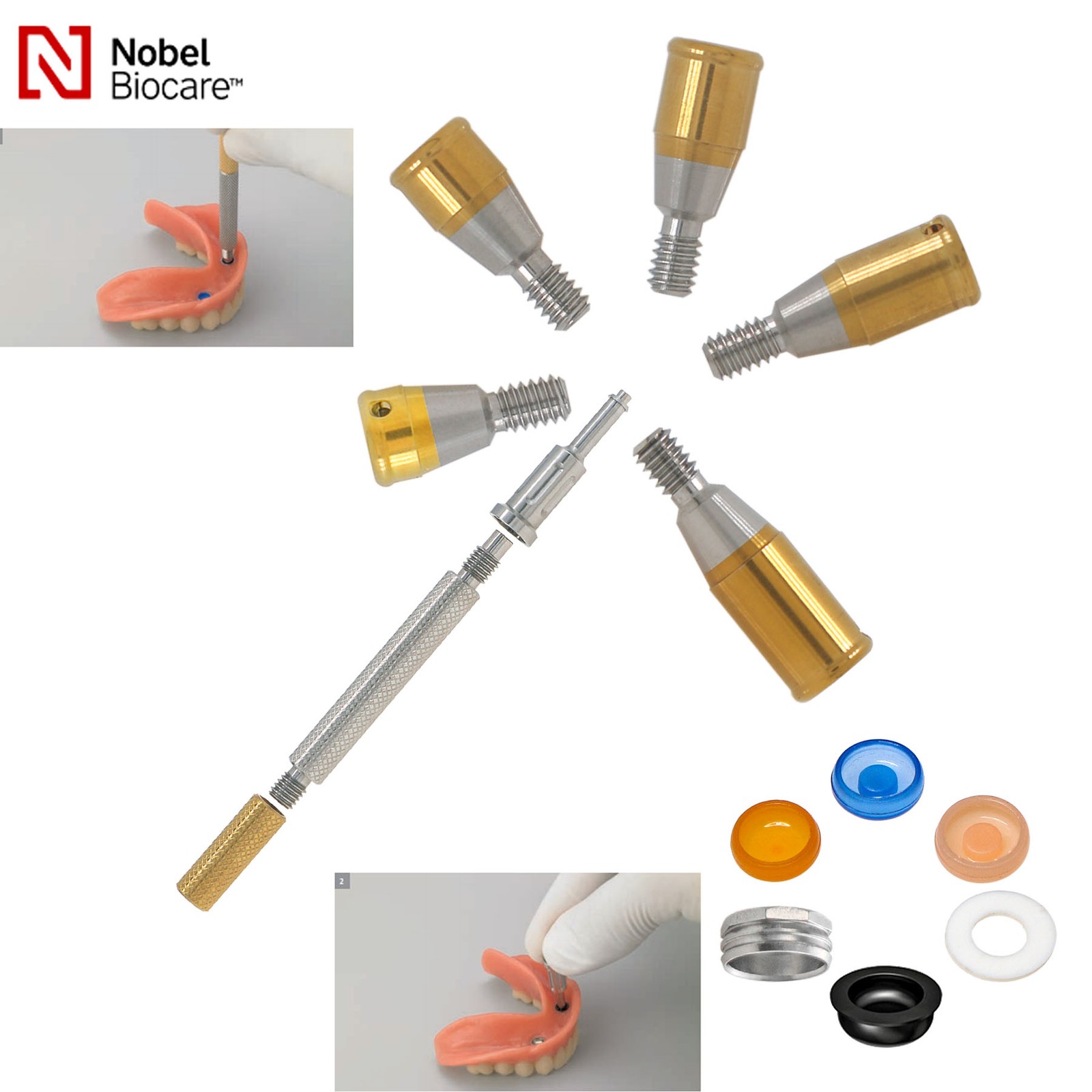

🛠️ Locator Core Tool

This tool includes 3 tools in 1, used for:

• Carrying & placing the locator abutment

• Removing locator male

• Inserting male into denture cap

Torque: up to 30 Ncm

How to use:

1. Loosen removal end → visible gap appears

2. Insert removal tip into denture assembly

3. Grip & pull out male cap

4. Tighten removal tool to disengage male

5. Use seating tool to place new male into denture cap
