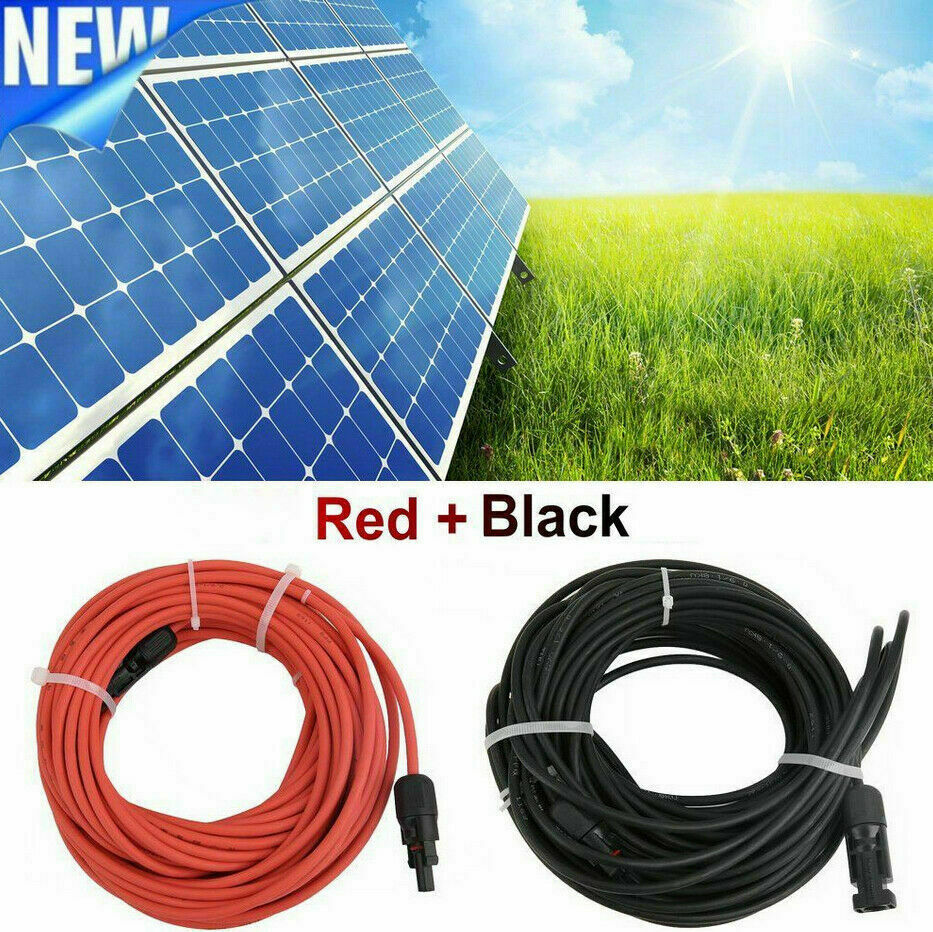

Solar Panel Cable Wire Pair Black + Red Fits MC4 Connectors 8 / 10 / 12 / 14 AWG

• Safe - Protecting against short circuits and ground leakages. Suitable for use inside and connected to insulated equipment.
• High Performance - High current carrying capacity with low losses over length.
• High Quality - Resistance against UV, water, ozone, fluids, oil, salt and general weathering.
• Wide Use - Hard plastic connectors at each end. Suitable for using in solar panels, DC circuits, inverter wiring.
• Long Life - Engineered for long life and outdoor applications. Good abrasion resistance, excellent softness and stripping performance.

• Authentic - Unlike competitors we use completely 100% authentic copper of the highest quality.(Some vendors give you aluminum wire and call it copper.)
• Made In USA - Wires are manufactured and assembled in the USA.

Connectors:

10 / 12 / 14 AWG

Test voltage: 6 kV (50 Hz)
Operating temperature: -40°C ~ 85°C
Approvals: IP 67 protecting grade, safety class ii, flame class UL94-V0
Contact resistance: ≤5mΩ
Insertion / withdrawal force: ≤50N / ≥50N
Locking system: Snap in

Fits Standard MC4 Type
Imported from China

8 AWG Connectors


Rated Current :50A(10.0 mm² )
Connector System: φ10mm
Withstanding Voltage: TUV 6000V AC(1 Min)/UL 2200V DC(1 Min)
Protection Class: Class II
Suitable Cable Lines: 8 AWG
Protection Degree: IP67, mated
Insulation Material: PC + PA
Contact Material: Messing verzinnt Copper Alloy, tin plated
Flame Class: UL94-V0
Pollution Degree: 2
Ambient Temperature Range: -40 ℃ to +90 ℃
Upper Limiting Temperature: +110℃
Contact Resistance of Plug Connectors:0.5mΩ
Insertion Force: less than 50N
Withdrawal Force: over 50N
Locking System:Snap-in
Flame Class:UL-94-V0
Salt Mist Spray Test Degree of Severity:IEC 60068-2-52


Wire:

Diameter: 2.082mm²/3.307mm²/5.26mm²/8.37mm² (stated on the wire itself)

Max. amps per conductor: 15A/20A/30A/50A (rated for continuous use)
Max. voltage: 600 V
Temperature rating: -40°C to 90°C / 75°C
 (Approved for up to 600V and is listed by Underwriters Laboratory (UL), as rated for 90° C (194° F) in dry and 75° C (167° F) in wet environments.)

Made In USA

Specification:

Color: Black & Red

Connectors insulation material: PC/PA
Connectors contact material: Copper, Silver-Plated
Wire conductor material: Authentic Stranded Bare Copper
Wire insulation material: PVC (polyvinyl chloride)

UL Listed

Heat Resistant

Moisture Resistant

UV Rating (35)
Quantity: 1 Pair (Black + Red) (red color may be orange tint)

Package Includes:

1 Pair Solar Panel Extension Cable

(Red color may be Orange tint due to availability. Please specify in order if you need orange or red only.)

Notes:
If you also need Solar Charge Controller Cable Wire Fits MC4 Connectors then check out Kali-Deals other ebay listing: https://www.ebay.com/itm/293726562976
Please allow 1-5cm error due to manual measurement and make sure you do not mind before ordering.
The color of the actual items may slightly vary from the above images due to different computer screens and/or wire availability, red wire may have orange appearance, if you need only red or orange wire strictly please advise BEFORE or quickly after ordering. Thanks for your understanding. Free First Class Shipping USA Only! Larger orders automatically upgraded to Priority Mail for Free!
