PX-VOY (HP-15C/16C Emulator) KIT

PX-VOY

A Modern Tribute to the Legendary HP Voyager Series of calculators.

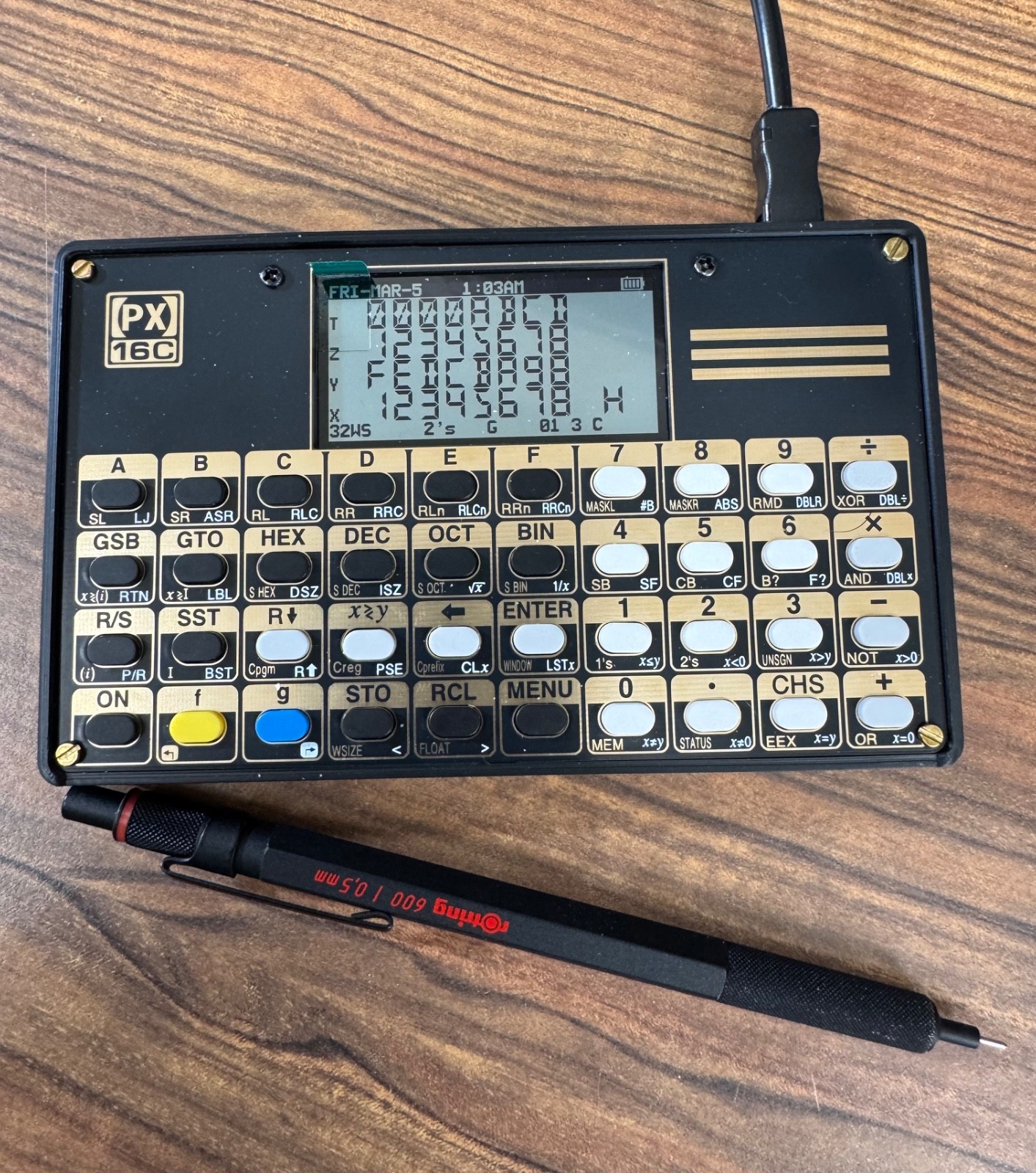

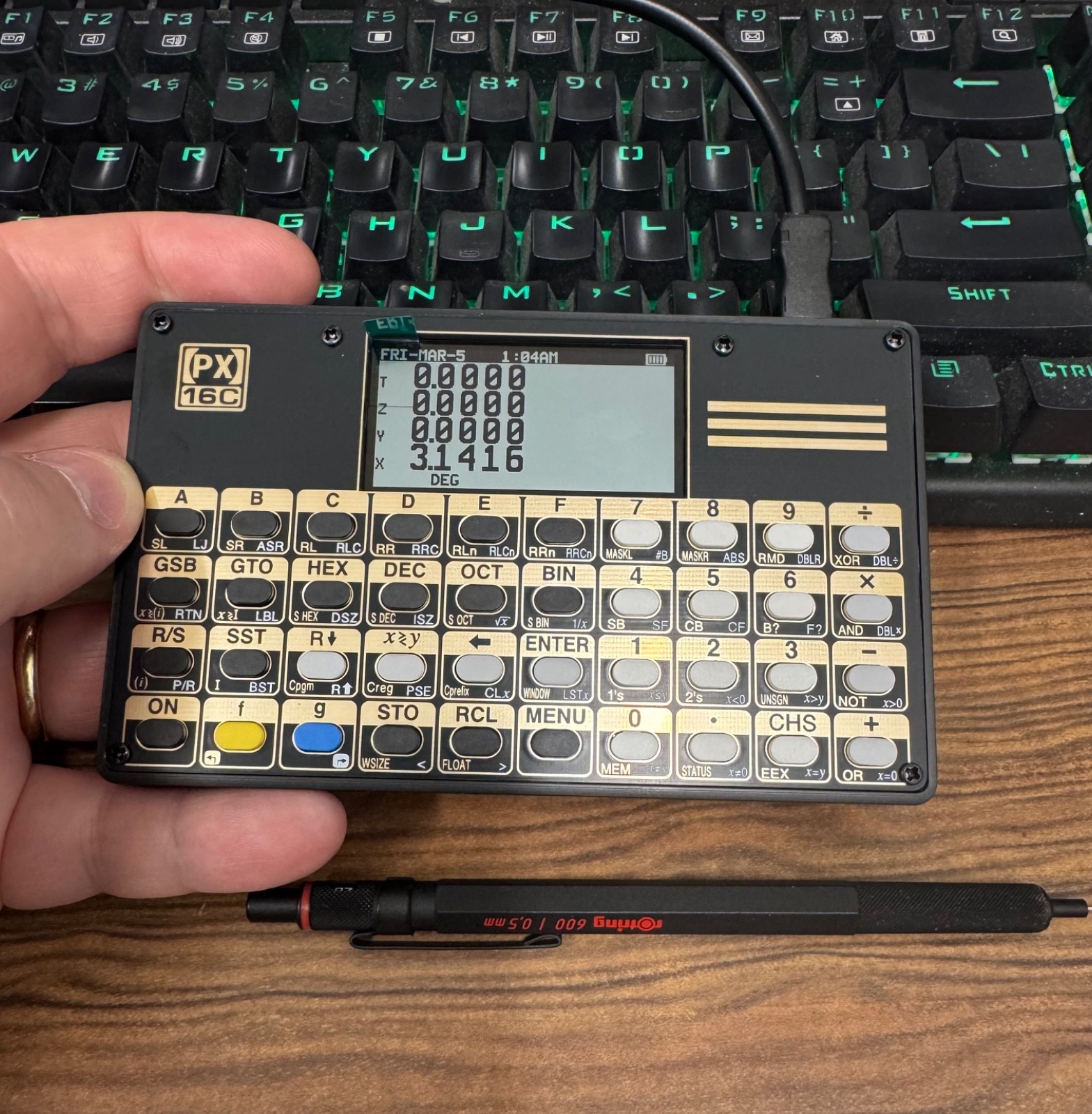

The PX-VOY is an Educational DIY calculator kit that faithfully emulates the iconic HP-15C and HP-16C (software selectable). Both top and bottom panels are reversible: one side labeled for the 15C, the other for the 16C.

Embark on a fun and educational experience by building your own calculator. Ideal for electronics enthusiasts and fans of classic HP calculators, the PX-VOY offers both a rewarding project and a powerful tool.

Features:

• Dual Emulator: Switch between HP-15C and HP-16C emulation.
• Reversible Panels: Top and bottom overlays are flippable. Lables are ENIG-plated (Electroless Nickel Immersion Gold).

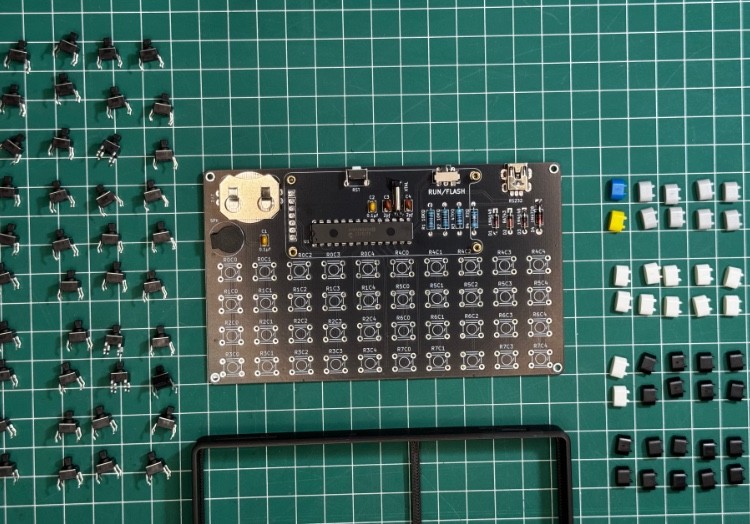

• Ease of Assembly: All through-hole parts for easy handling and soldering.
• Increased Speed: Runs much much faster than the originals.
• Extended memory: 15C emulator runs faster than the original.
• Continuous memory: retention, even when the calculator is turned off.
• Auto Power Off: Automatically powers off to save battery life.
• New Microcontroller: Powered by a single AVR128DA 8-bit microcontroller, with selectable speeds from 8MHz to 32MHz.
• Audible Feedback: Equipped with a speaker for audible keypress feedback.
• High-Contrast Display: Features an ultra-low power monochrome reflective LCD with a resolution of 250x122 pixels (no backlight).
• Real Time Clock: Includes a real-time clock using a 32.768KHz crystal.
• Power: Operates on a single CR2032 3V battery or can be powered via USB cable.
• Low Power Consumption: around <35µA when ideal, <8µA when powered down.
• Preprogrammed Microcontroller: The microcontroller comes preprogrammed.
• Connectivity: Supports Serial RS232 connectivity for flashing and data transfer, using a USB to serial cable.
• Tactile Switches: Features tactile switches with a force of 70gf.
• Color Keycaps: Includes color keycaps for easy identification.

What's Included:

All parts required to assemble a fully functional calculator — battery not included.

Optional Accessories:

• USB to Serial Cable (USB-A to Serial USB-mini b)
• Protective Case

For more about the original HP calculators, visit the HP Museum, and follow the PX-VOY’s progress on the HP Museum Forum.

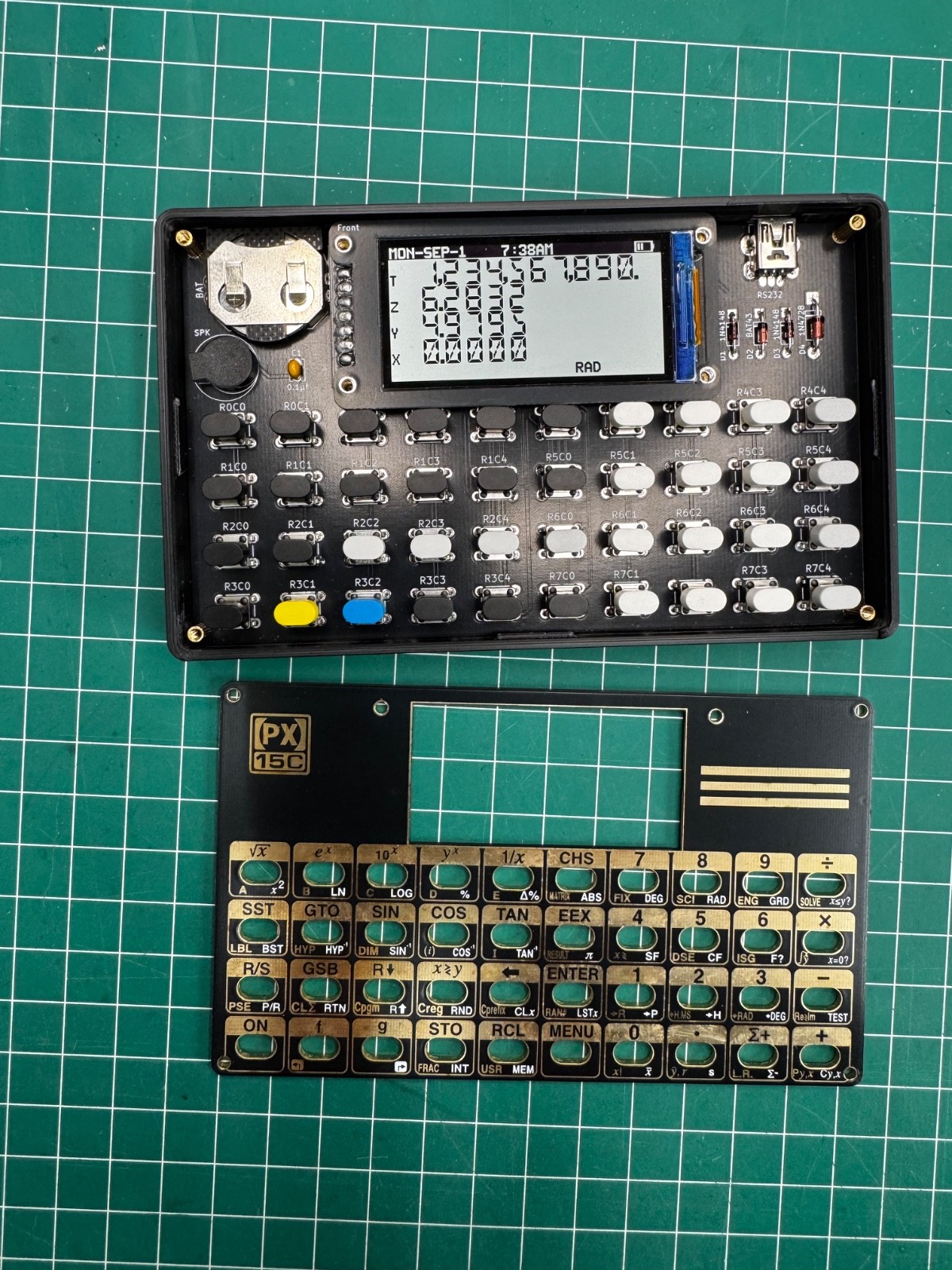

Note: To switch between the 15c and 16c covers, you need to remove the screws and flip the covers.

*ASSEMBLY IS REQUIRED.  You need to solder components.
