Mini Split AC Line Set 16FT 1/4" & 1/2" or 1/4" & 3/8" Pre-Flared Copper Tubing
Estimate for one unit, air shipping. Final total is confirmed at checkout.
Product arrives warehouse Sep 11 - Sep 15. Products ship from our warehouse every Friday. Delivered to you by Sep 29, 2026.
About this item
|
Garvee HVAC Accessories
16FT Mini Split Line Set
Complete Copper Tubing Kit with All Installation Accessories
Available in Two Sizes: 3/8" & 1/4" OR 1/2" & 1/4"
|
|
Section 01
Product Gallery
|

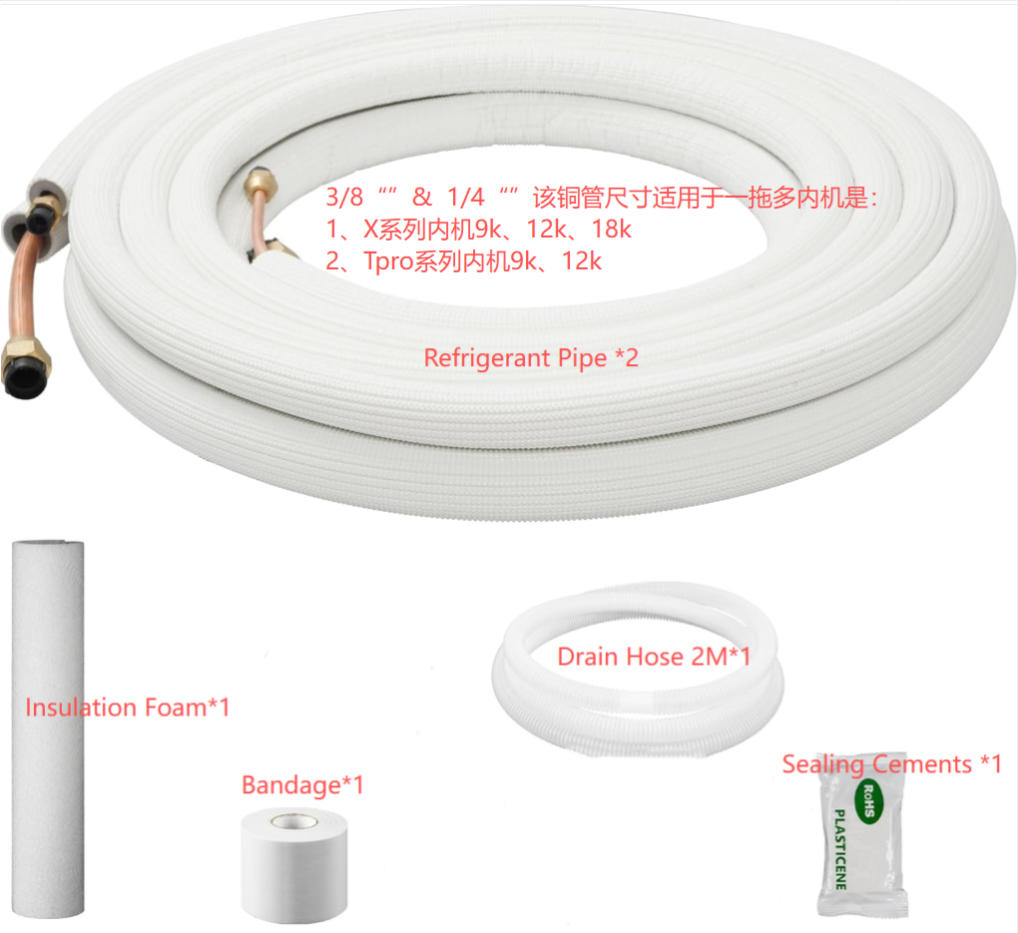

Line Set 3/8" & 1/4"
|

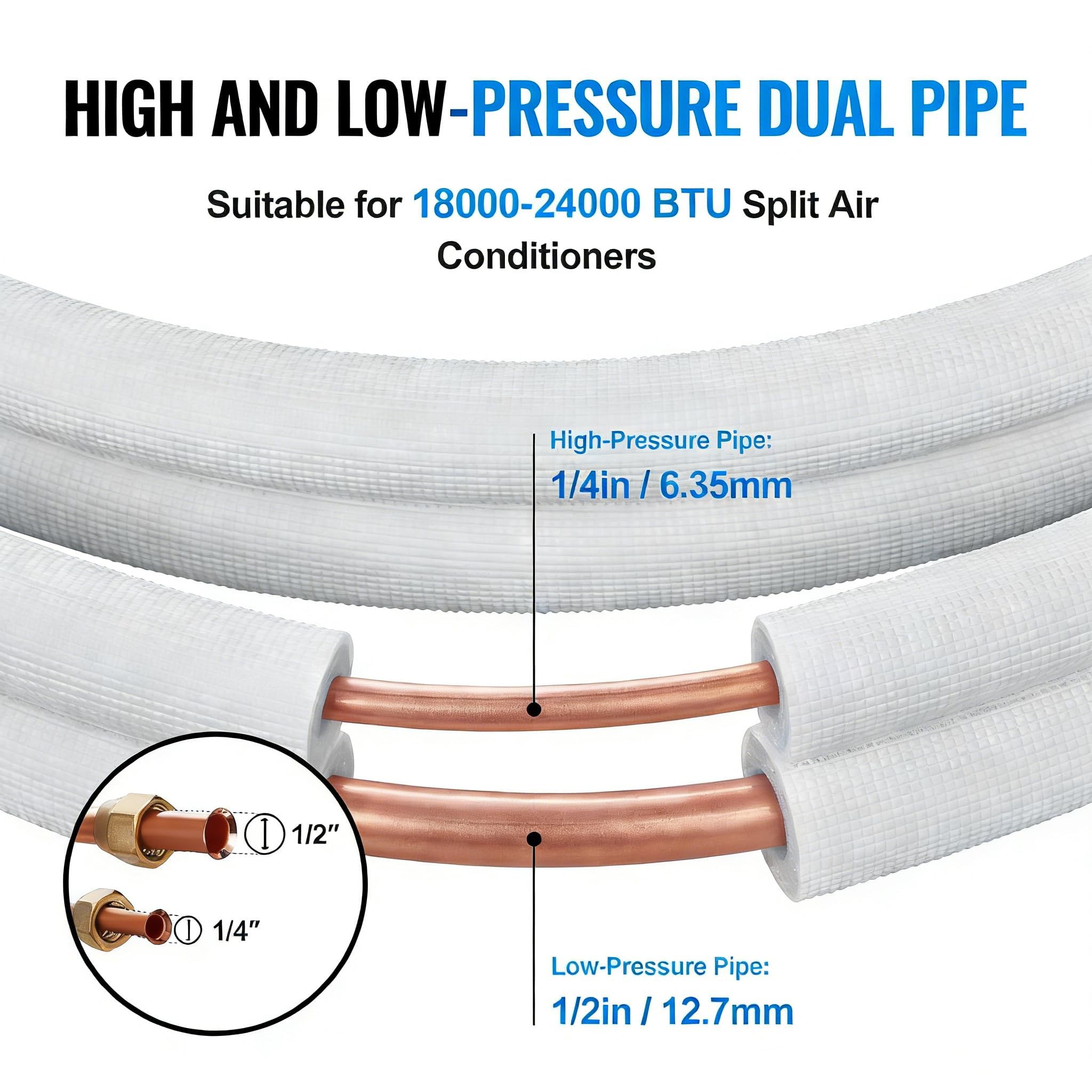

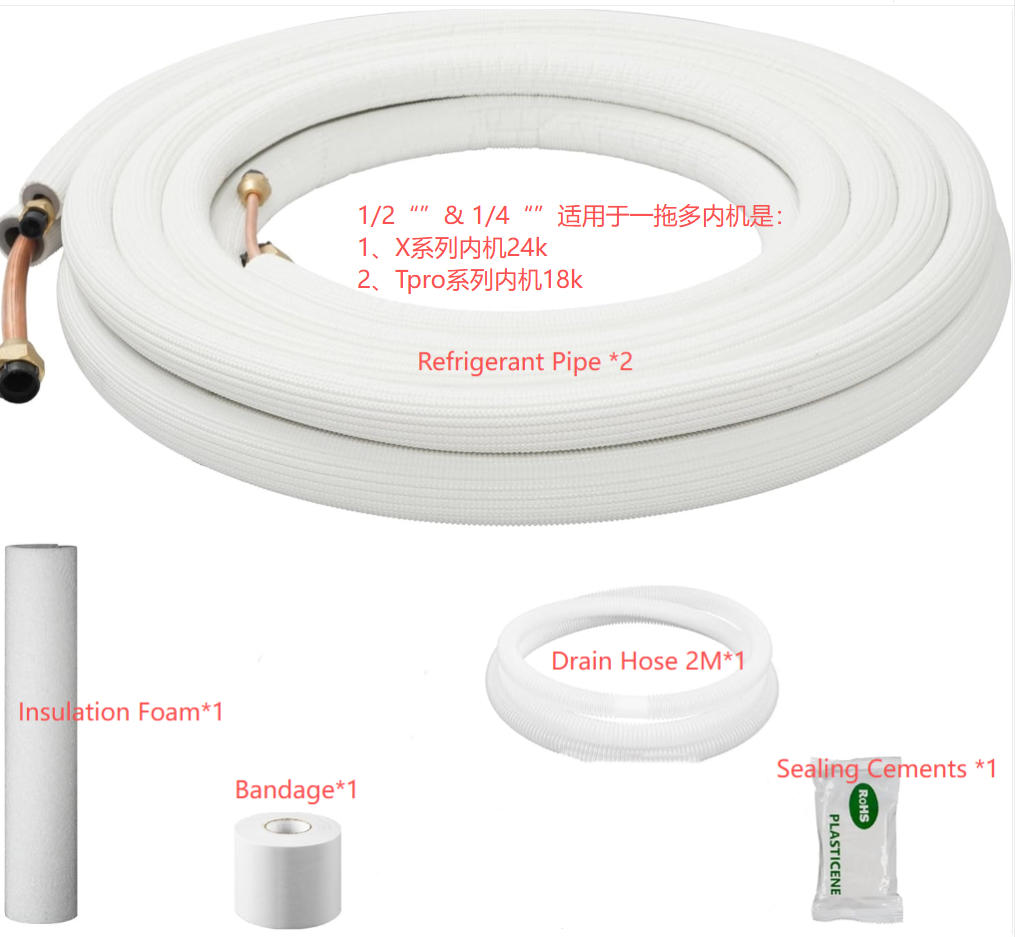

Line Set 1/2" & 1/4"
|

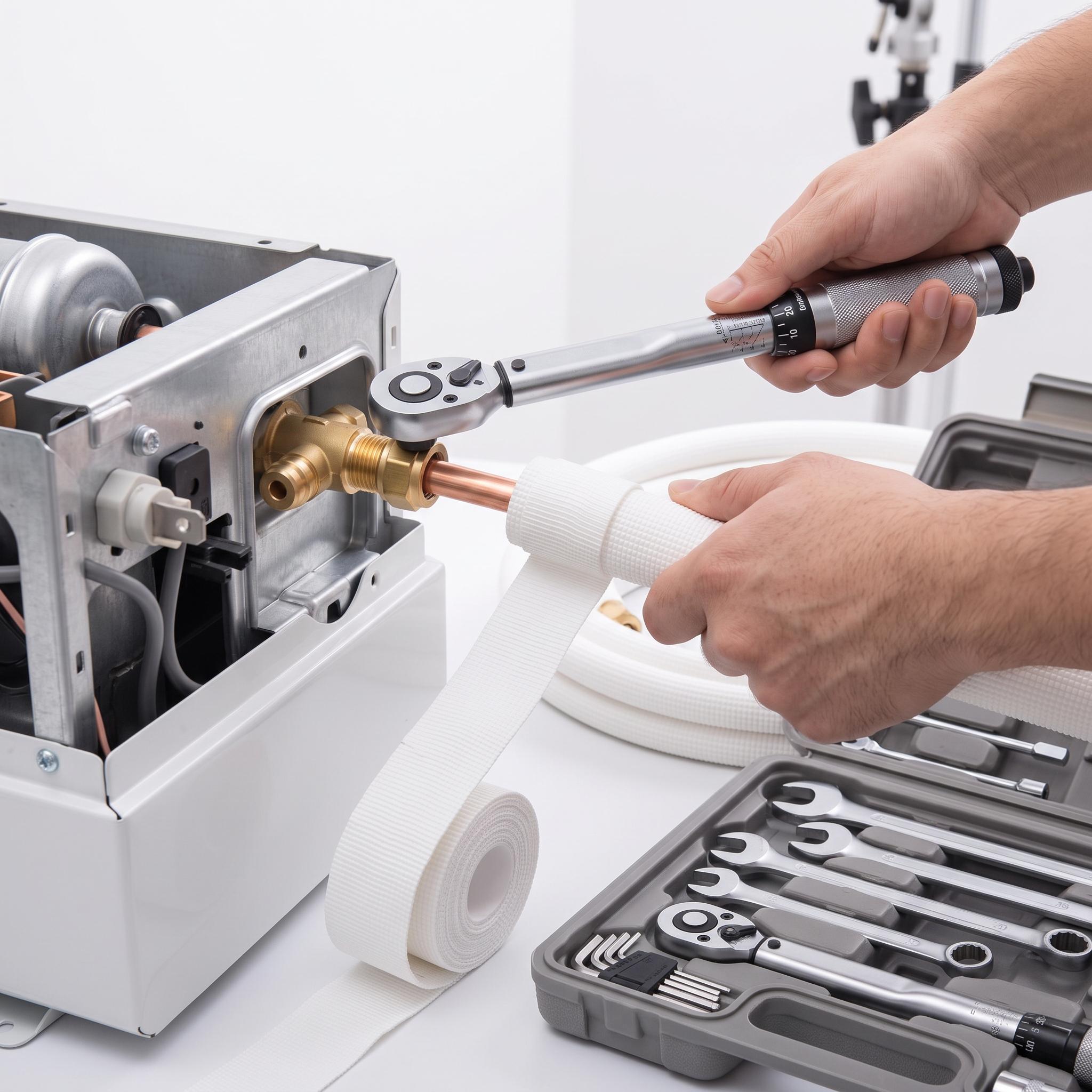

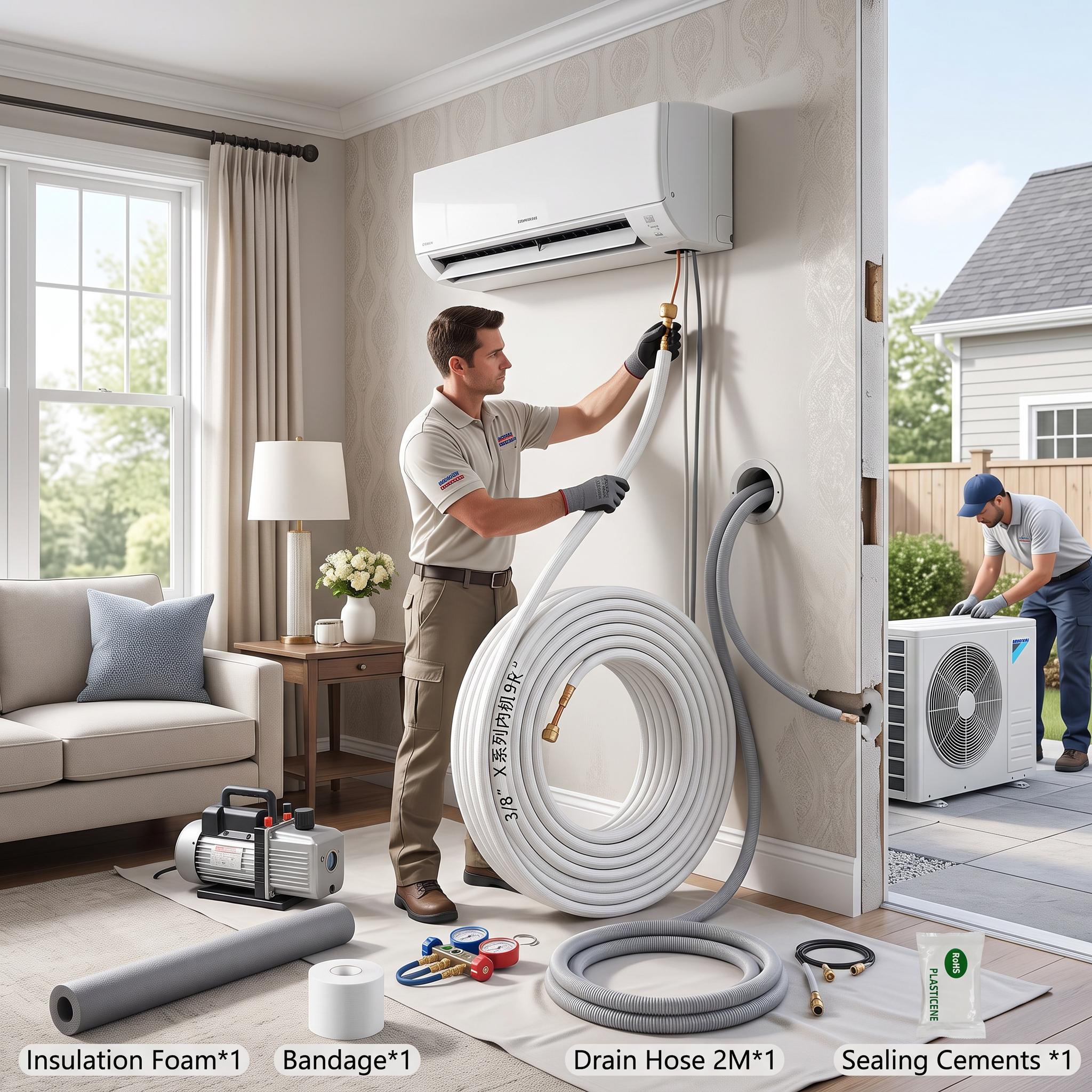

Professional Installation
|

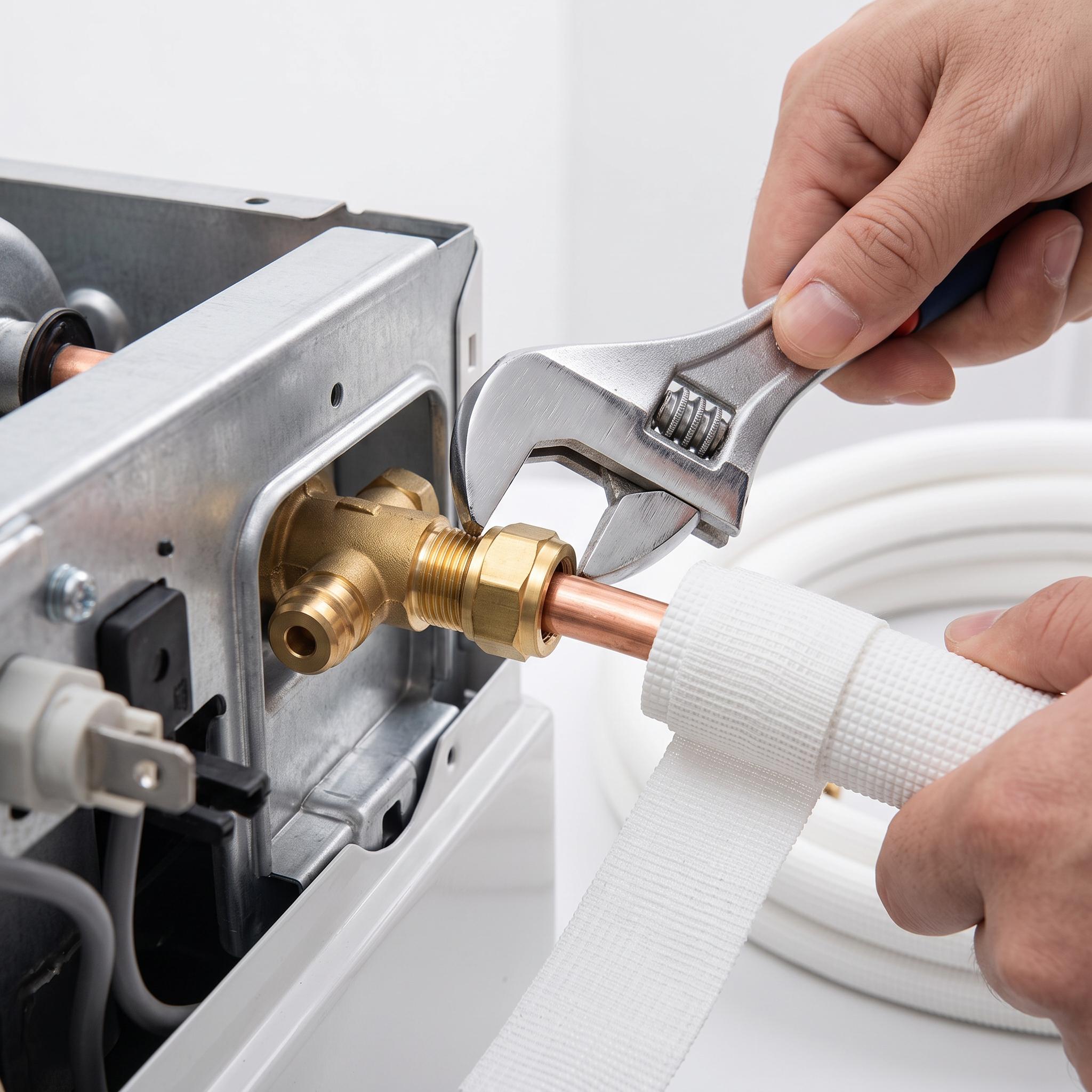

Brass Flare Nut Detail
|
|
Section 02
Choose the Right Size for Your Unit
|
| Option | Copper Line Size | Compatible Indoor Units |
| Option A | 3/8" & 1/4" O.D. | X Series 9K / 12K / 18K • Tpro Series 9K / 12K |
| Option B | 1/2" & 1/4" O.D. | X Series 24K • Tpro Series 18K |
| ⚠ | Please confirm your mini split indoor unit model and power (BTU) before selecting. Use the size drop-down menu on this listing to choose the option that matches your unit. |
|
Section 03
Key Features
|
| ✓ | Two Size Options for Different Units: 3/8" & 1/4" set fits X Series 9K/12K/18K and Tpro Series 9K/12K; 1/2" & 1/4" set fits X Series 24K and Tpro Series 18K indoor units. |
| ✓ | All-in-One Line Set Kit: Includes 2 insulated copper refrigerant lines, insulation foam, bandage tape, 2M drain hose and sealing putty - everything needed to connect indoor and outdoor units. |

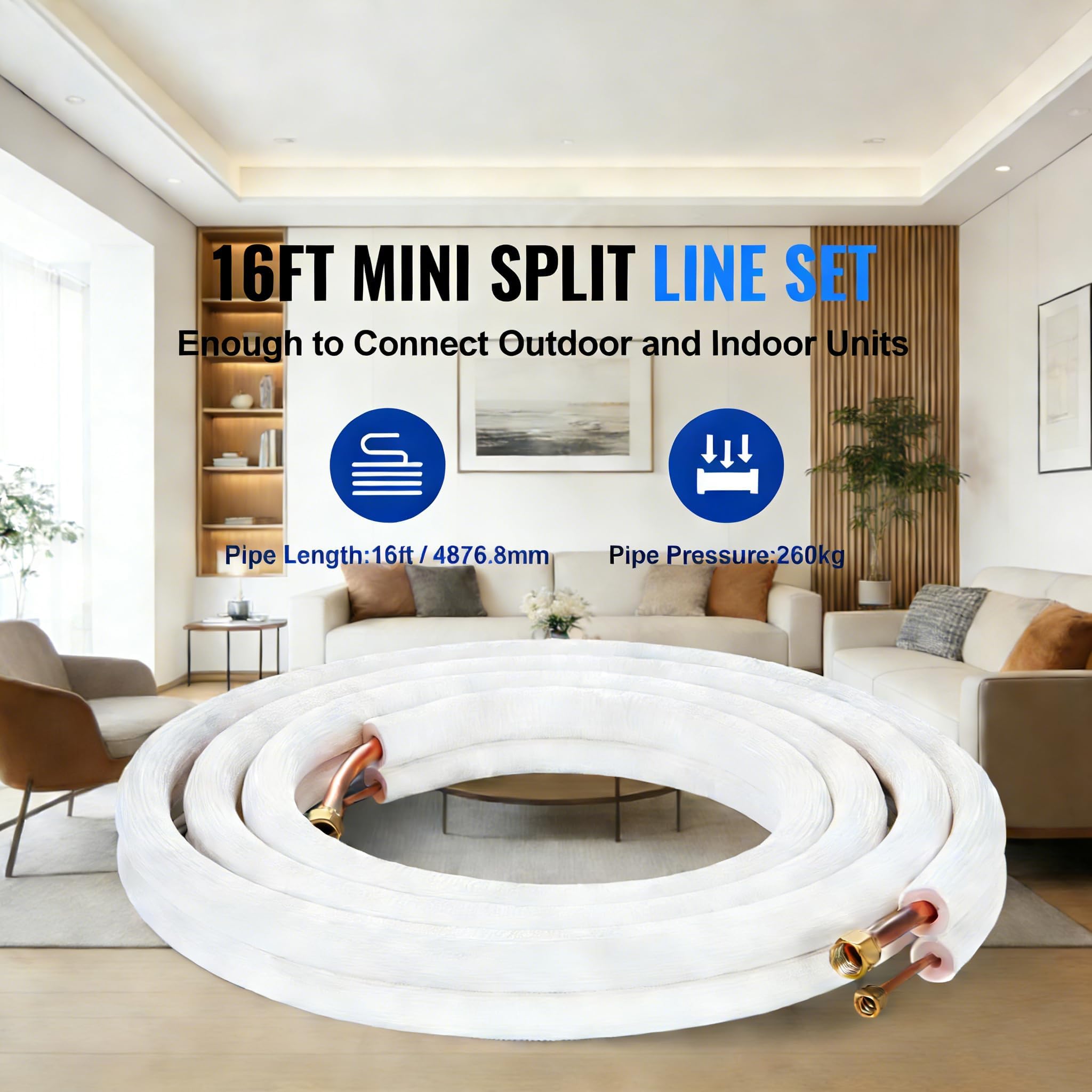

| ✓ | 16FT (5M) Length: Generous pre-cut length covers most standard ductless AC installations between indoor and outdoor units. |

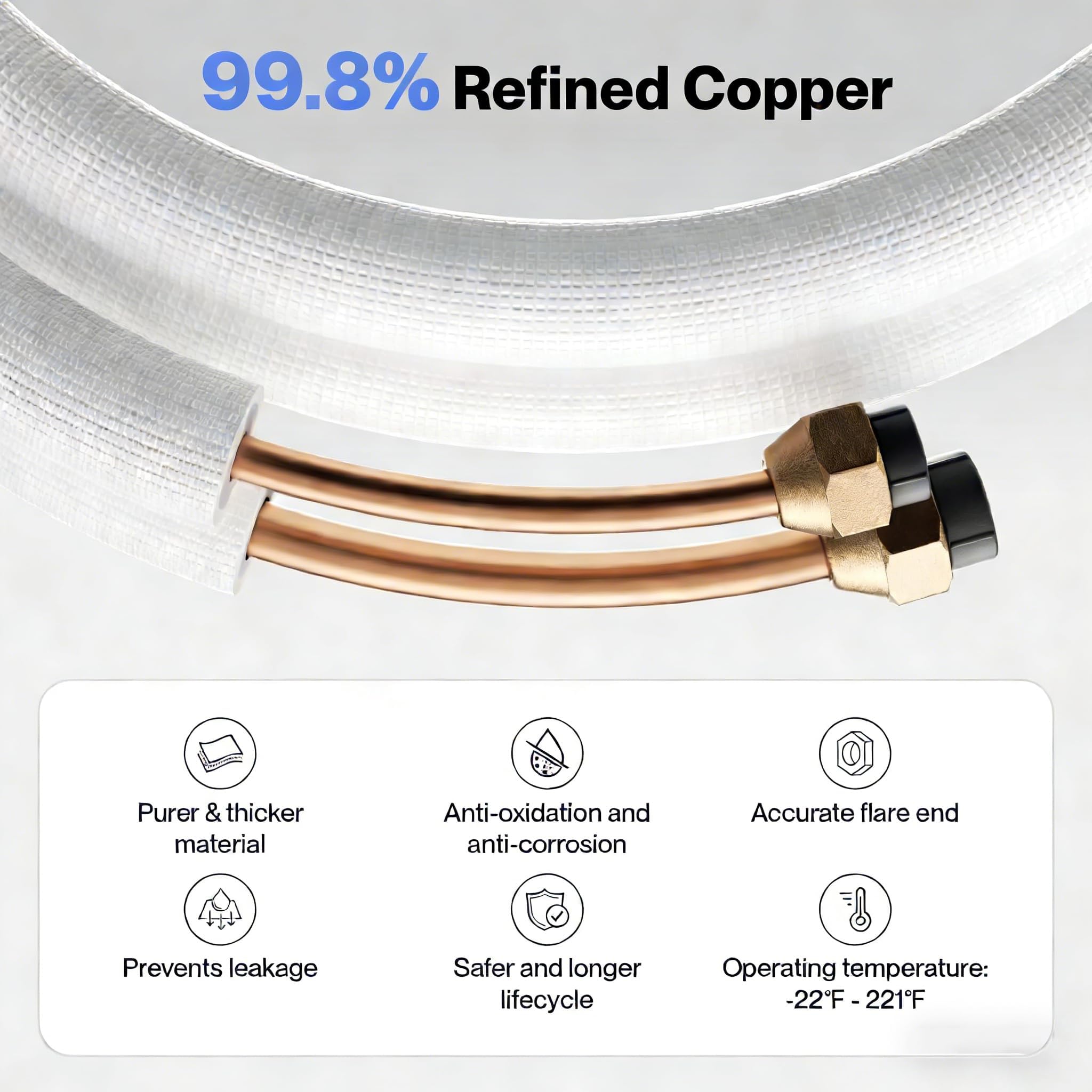

| ✓ | Quality Copper Tubing: Pure copper refrigerant lines with brass flare nuts pre-attached at both ends and protective caps to keep out dust and debris. |
| ✓ | High-Density Insulation: White PE foam insulation wrap with fine texture helps maintain refrigerant temperature and reduce energy loss during operation. |

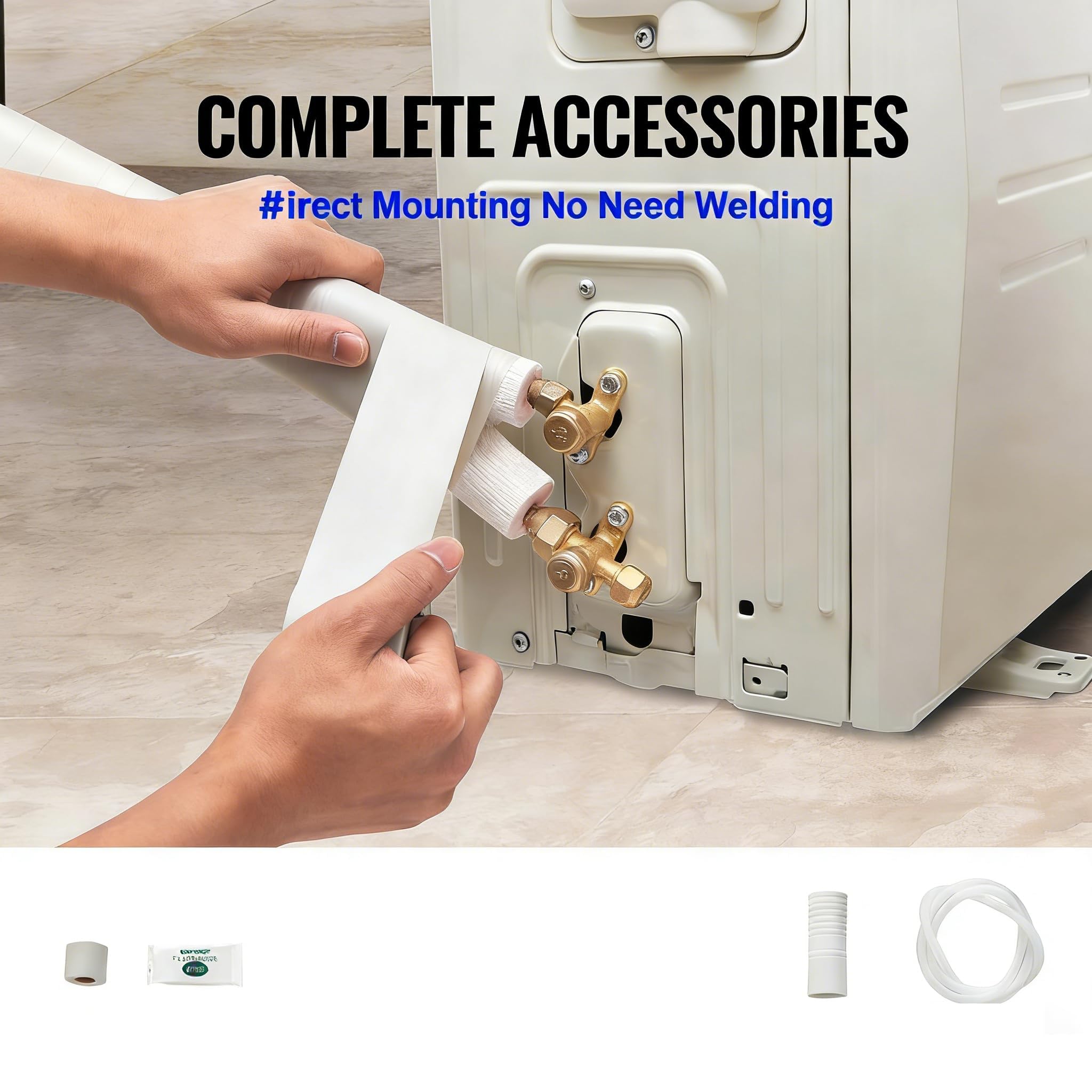

| ✓ | Complete Accessories: 2M drain hose for condensate drainage, sealing putty (RoHS compliant) to seal wall openings, and bandage tape to bundle lines neatly. |
|
Section 04

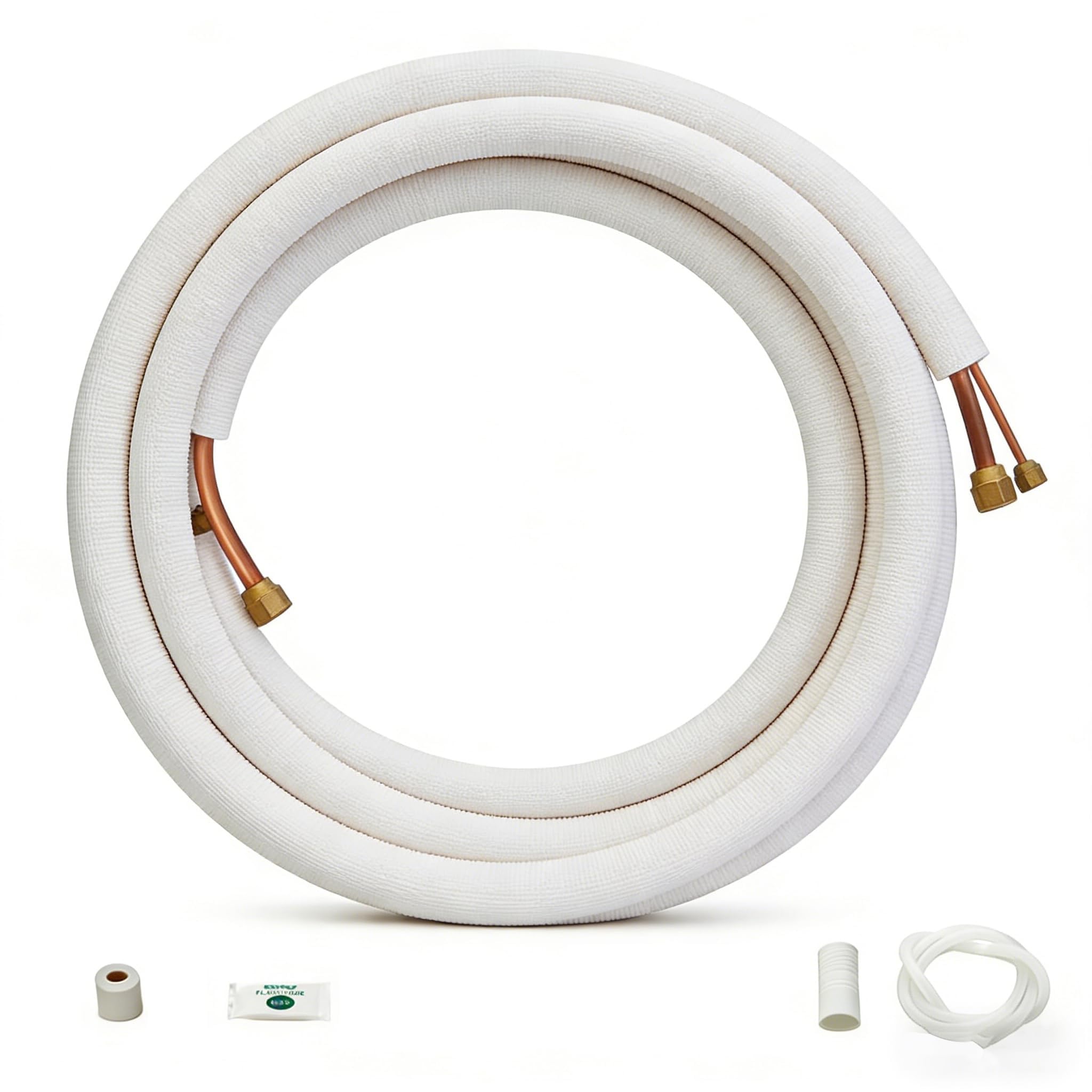

What's in the Box
|
| • Refrigerant Copper Pipe (Large) × 1 | • Refrigerant Copper Pipe 1/4" × 1 |
| • Insulation Foam × 1 | • Bandage Tape × 1 |
| • Drain Hose 2M × 1 | • Sealing Putty × 1 |
|
Section 05
Specifications
|
| Line Set Length | 16 Feet (5 Meters) |
| End Connection | Brass Flare Nuts Pre-Attached |
| Weight | Approx. 8.2 lbs (3.7 kg) |
| Brand | Garvee |
|
Section 06
Perfect for Every Room in Your Home
|
|

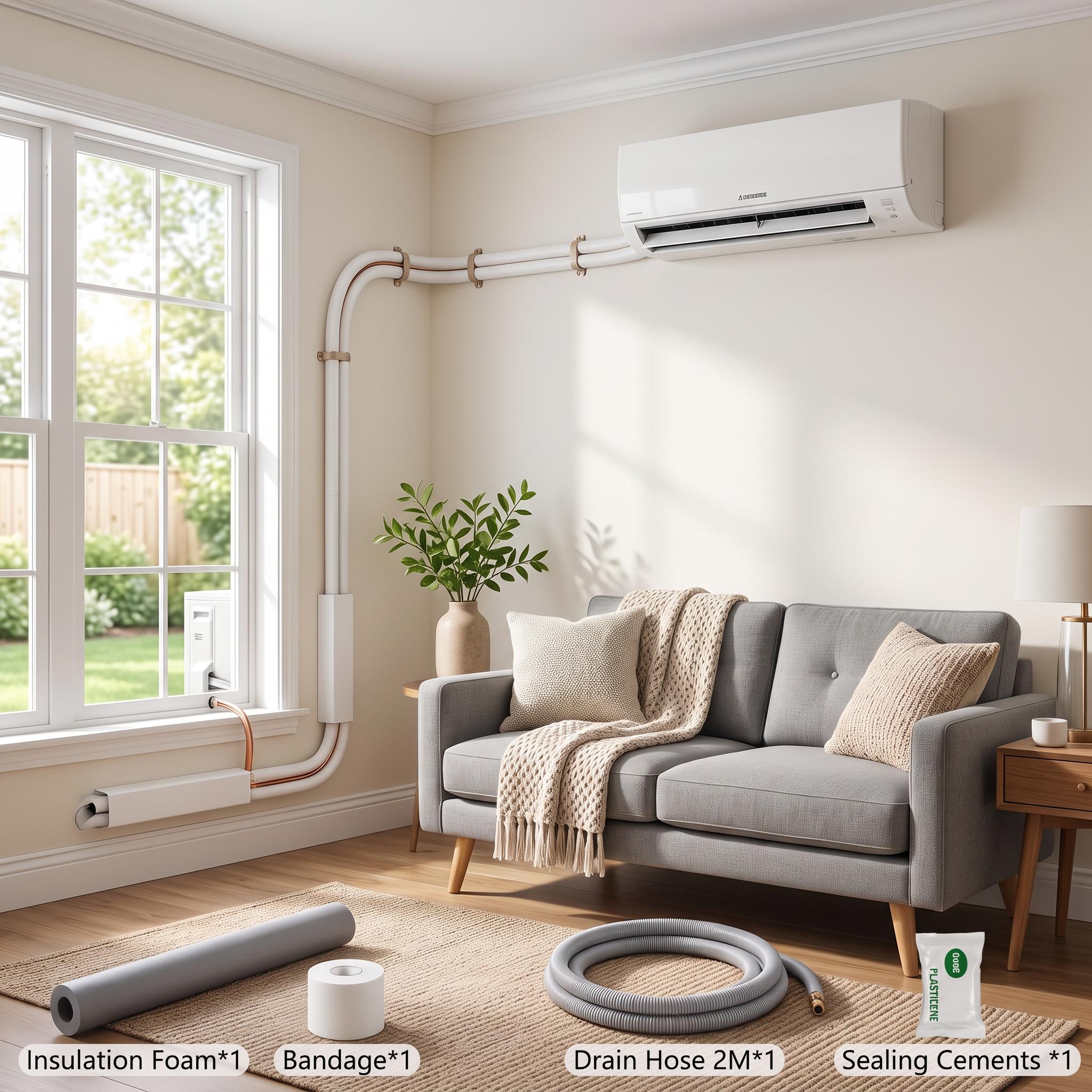

🏠 Living Room Comfort
Keep your family room cool and cozy all summer long. This complete line set kit makes it easy to connect a ductless mini split in your living room, home theater, or open-concept family space - with clean, professional-looking line routing. |
|

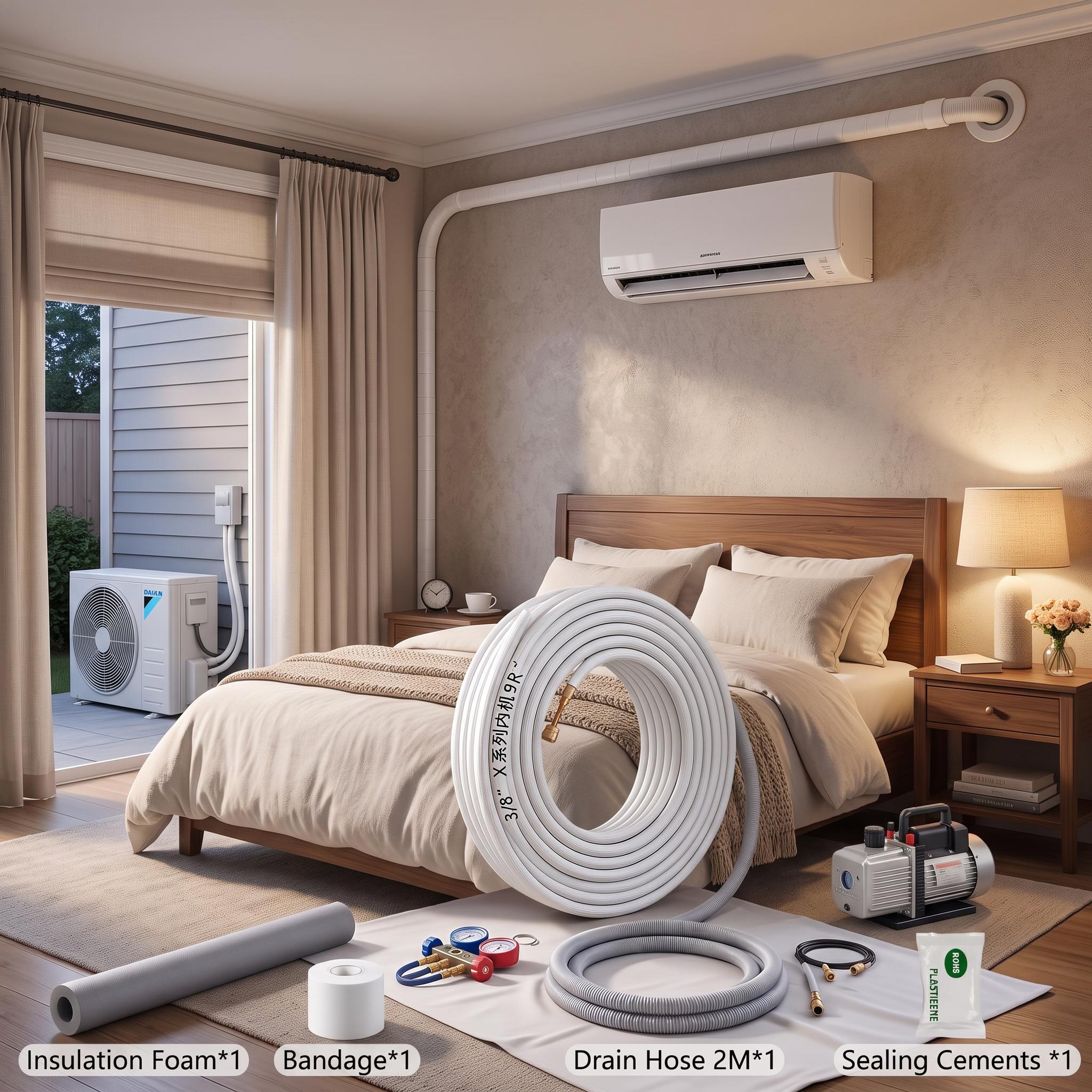

🛌 Peaceful Bedroom Sleep
Enjoy whisper-quiet cooling in your bedroom. The insulated copper lines reduce energy loss and keep refrigerant at the right temperature, so your mini split runs efficiently through the night - perfect for bedrooms, nurseries and guest rooms. |
|
|
🏛️ Outdoor Unit Connection

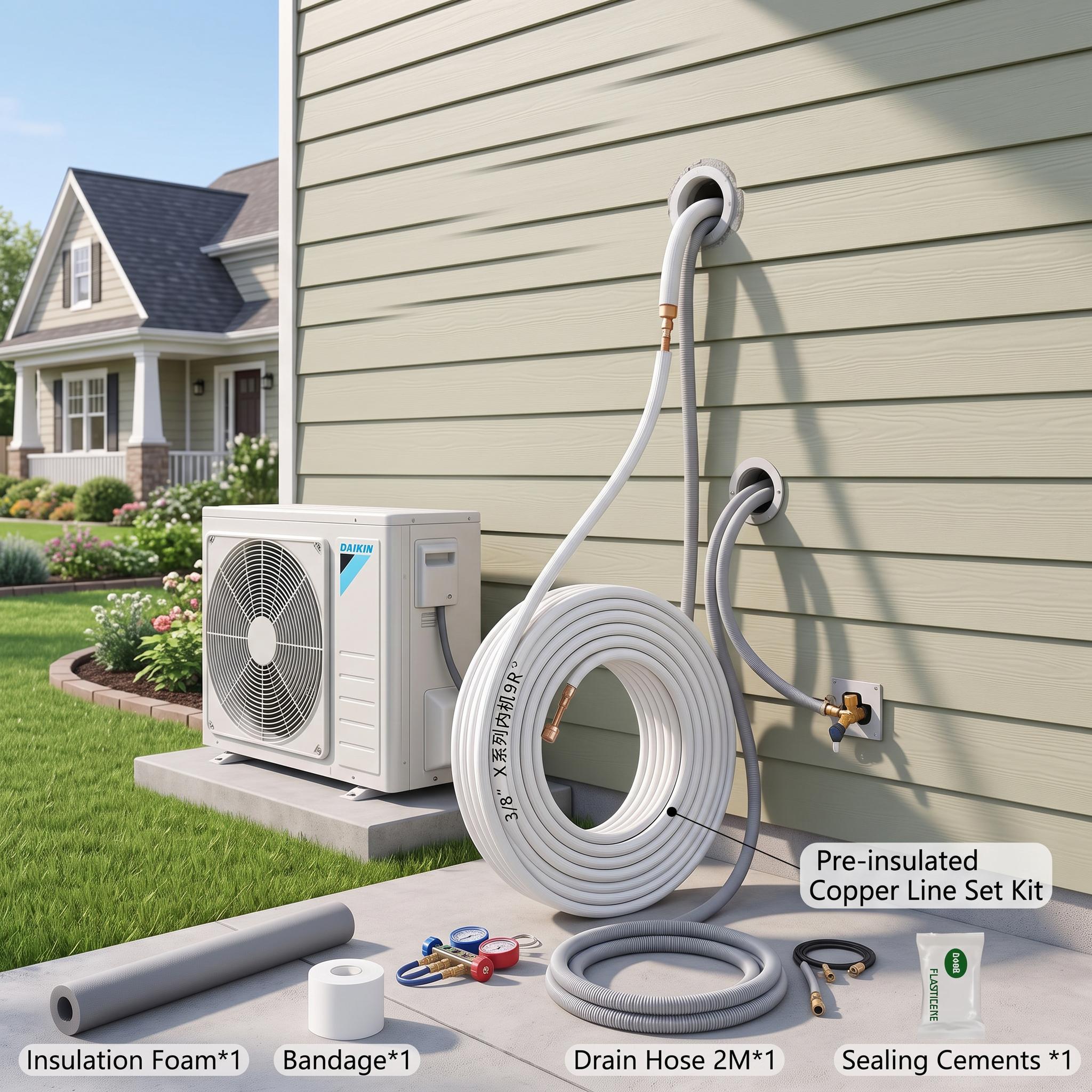

The 16FT line set comfortably bridges your indoor unit to the outdoor condenser, whether mounted on the exterior wall, patio, or rooftop. The included drain hose and sealing putty handle condensate and wall sealing for a tidy, weather-resistant finish. |
|
🔧 Professional-Grade Installation
Designed for HVAC professionals and experienced DIYers. Brass flare nuts pre-attached at both ends, protective caps, and the complete accessory pack - insulation foam, bandage tape, and sealing putty - let you finish the job right the first time. |
|
|
Section 07

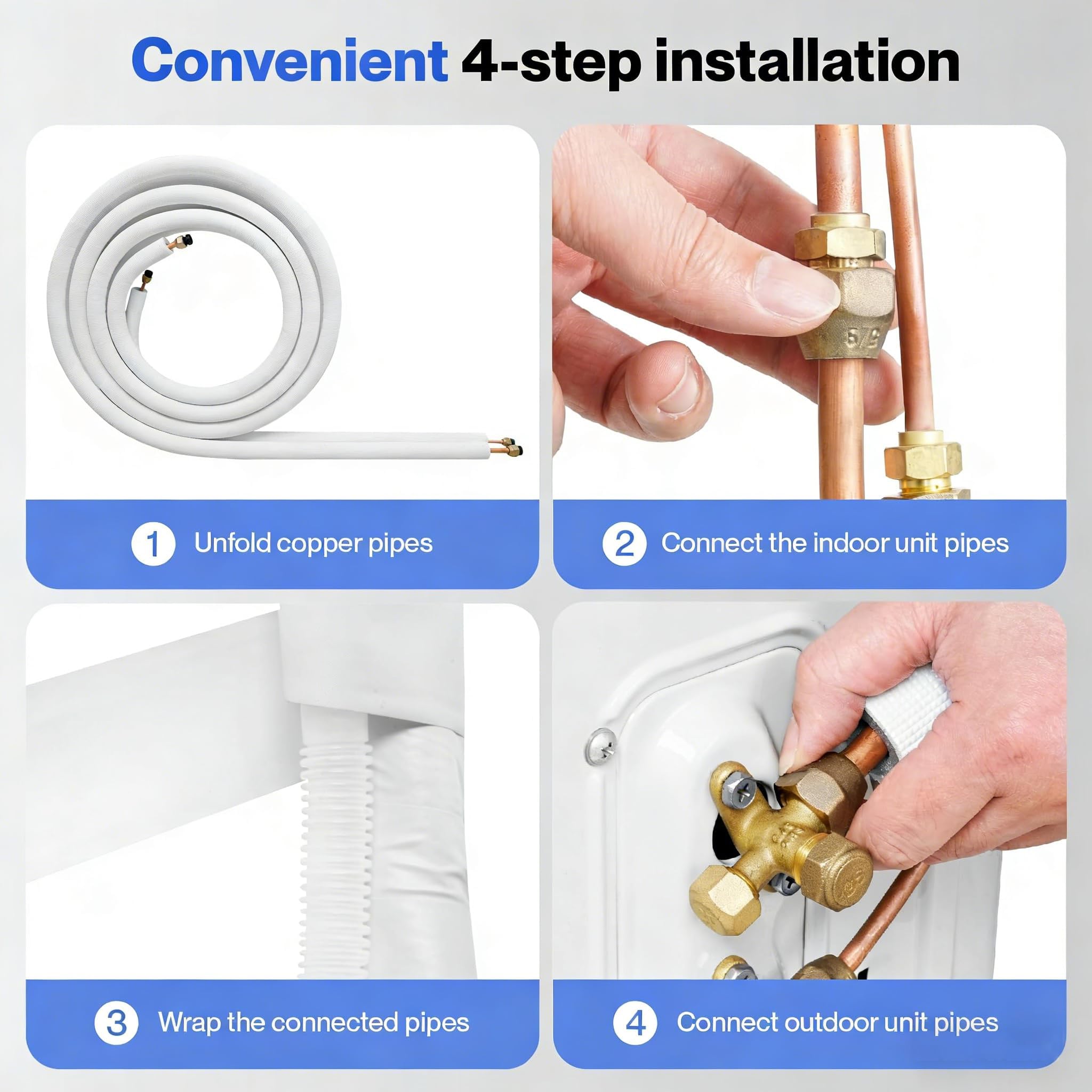

Installation Notes
|
| ⚠ | Refrigerant handling requires specialized tools and training. For safety and warranty purposes, we recommend having a certified HVAC technician perform the installation. |
| ⚠ | Do not bend or kink the copper lines during installation. Use the bandage tape to secure and protect the lines. |
| ⚠ | Seal any wall openings with the included sealing putty to prevent air leaks and keep pests out. |
|
Customer Service & After-Sales Support
Your satisfaction is important to us. If you have any questions about compatibility, installation, or product details, please contact us before or after your purchase - we are happy to help. • Fast and friendly customer support Please reach out to us through the eBay messaging system - we usually respond within 24 hours. |
| 16FT Mini Split Line Set | 3/8" & 1/4" OR 1/2" & 1/4" Copper Tubing Kit .All rights reserved. |
