Meshtastic LoRa Device ESP32 V3 SX1262 915MHz Long Range Off Grid Radio Mesh Kit
Estimate for one unit, air shipping. Final total is confirmed at checkout.
Product arrives warehouse Sep 18 - Sep 23. Products ship from our warehouse every Friday. Delivered to you by Oct 6, 2026.
About this item

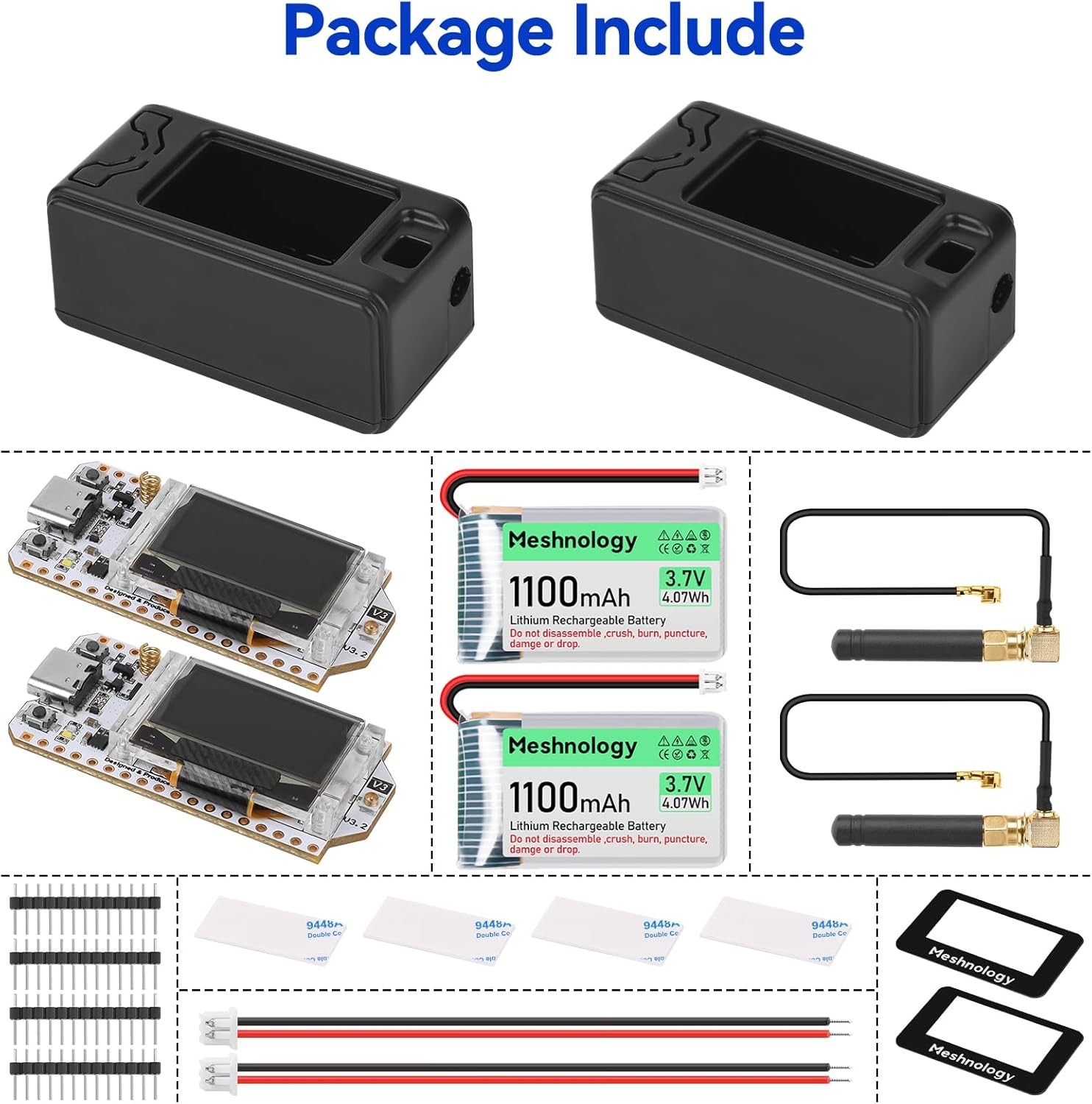

ESP 32 LoRa V3 Development Board + 1100mAh Battery + Protect Case Set - with 915MHz Antenna and SX 1262 LoRa V3 Devices for Meshtastic Ar duino Lo Rawan IoT (N30 Version, Black)
About this item

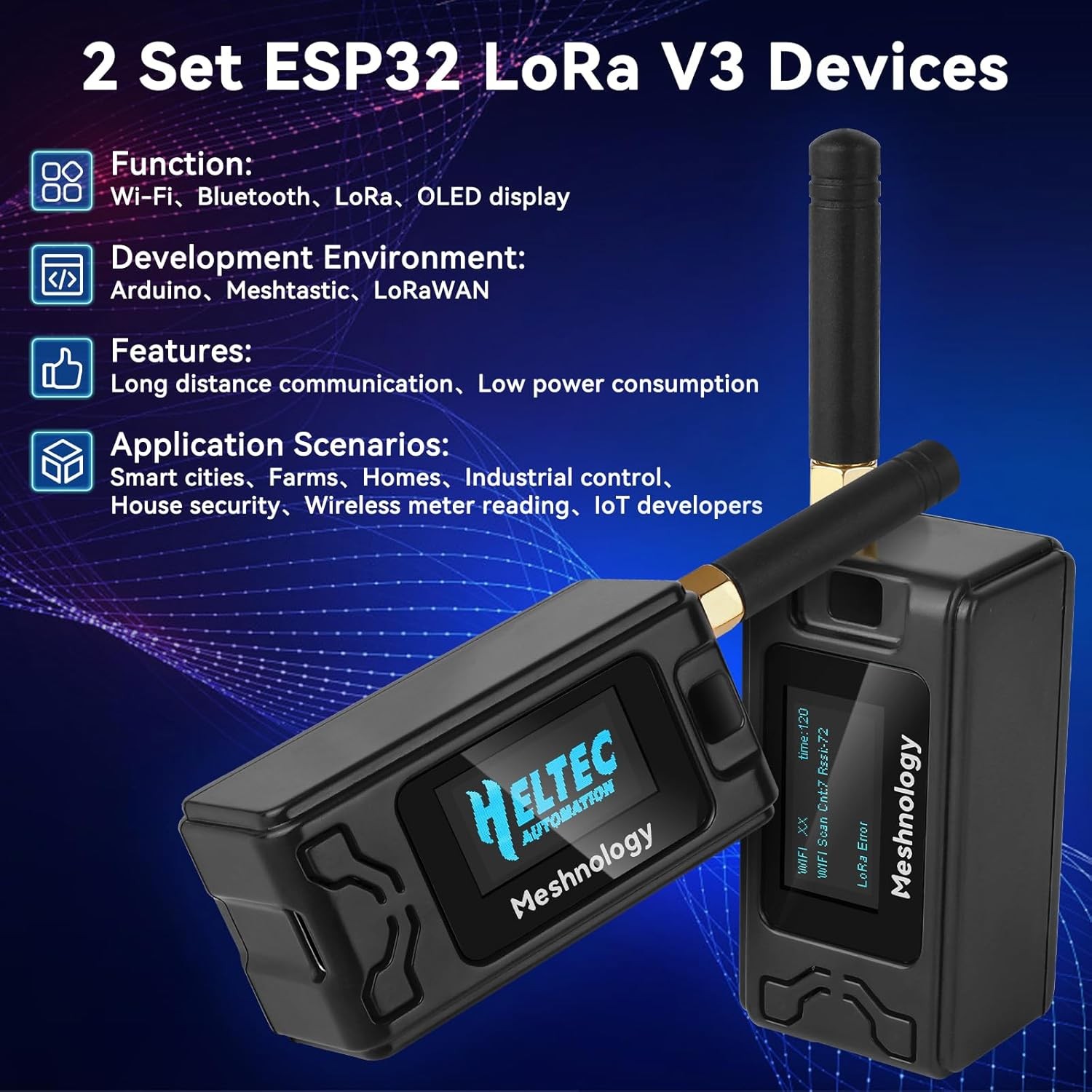

- Advanced Dual-Core Performance: Unlock the full potential of your IoT projects with our 2-piece set featuring the ESP32 LoRa development board, powered by a robust dual-core ESP32-S3FN8 processor. With a clock speed of up to 240 MHz and a five-stage pipeline architecture, this board delivers high performance for complex applications and devices.
- Exceptional Connectivity: Experience seamless connectivity with integrated WiFi, LoRa, and Bluetooth capabilities. Our development board comes equipped with a dedicated 2.4GHz metal spring antenna for Wi-Fi and Bluetooth, along with an U.FL interface specifically reserved for LoRa use, ensuring stable and long-range wireless communication.
- Powerful Battery Management: This development board includes an 1100mAh battery and an onboard SH1.25-2 battery connector, featuring a comprehensive lithium battery management system. Benefit from intelligent charge and discharge management, overcharge protection, battery level detection, and automatic switching between USB and battery power for uninterrupted operation.
- Enhanced User Interface: With a 0.96-inch 128x64 dot matrix OLED display, our development board is perfect for showcasing debugging information and battery status. The Type-C USB interface ensures complete voltage regulation, ESD protection, short circuit protection, and RF shielding, enhancing safety and reliability for all your projects.

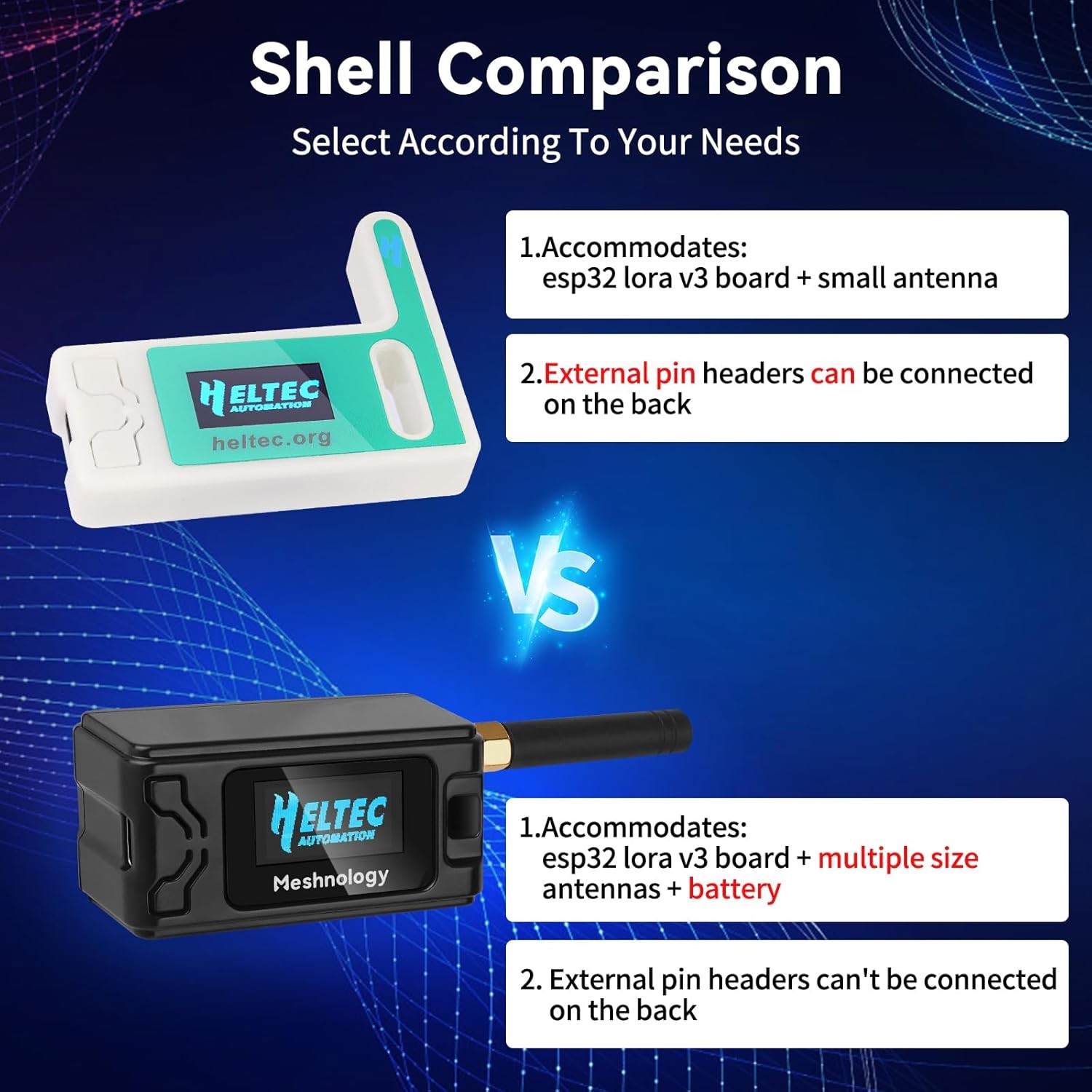

- Developer-Friendly Design: Created with developers in mind, this board supports the Ar duino development environment and includes an integrated CP2102 USB-to-serial chip for effortless programming and debugging. Coupled with excellent RF circuit design and low power consumption, it stands out as a perfect choice for scalable IoT solutions. Plus, our specially designed Meshtastic LoRa V3 case ensures compatibility and protection for your ESP32 LoRa V3 board, antenna, and 1100mAh battery (or batterie size smaller than 952540mm), making it an essential companion for your electronic endeavors.
Product description
(ESP32 LoRa V3 Development Board + 1100mAh Battery + Protect Case)
Specifications of ESP32 LoRa V3 Development Board:
| Master Chip | ESP32-S3FN8 (Xtensa32-bit lx7 dual core processor) |
| LoRa Node Chip | SX1262 |
| USB to Serial Chip | CP2102 |
| Frequency | 470~510MHz, 863~928MHz |
| Max. TX Power | 21±1dBm |
| Max. Receiving sensitivity | -134dBm@SF12 BW=125KHz |
| Wi-Fi | 802.11 b/g/n, up to 150Mbps |
| Bluetooth | Bluetooth 5 (LE) |
| Hardware Resource | 7*ADC1 + 2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc. |
| Memory | 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash |
| Interface | Type-C USB; 2*1.25 lithium battery interface; LoRa ANT; 2*18*2.54 Header Pin |
| Battery | 3.7V lithium battery power supply and charging |
| Operating Temperature | -20 ~ 70 ℃ |
| Dimensions | 50.2 * 25.5* 10.2 mm |
Can the onboard 2.4GHz antenna be replaced?
The 2.4GHz antenna is a spring antenna, and there is no additional interface on the board for 2.4GHz wireless signals.
Can ESP32’s WiFi and Bluetooth be used at the same time?
No, the WiFi LoRa 32 don’t have an external PSRAM.
What development methods does it support?
-Arduino;
-Micro Python;
-Platform.io;
-Espressif IDE.
We strongly recommend using Arduino. We provide complete LoRaWAN code for ESP32 Arduino framework.
Meshtastic screen has a digital front-end issue?
It’s caused by the meshtastic setting. Changing the default screen to SSD1306 can solve the problem.
The specific steps are as follows:
“Radio configuration”→”Display”→”Override OLED auto-detect”→”SSD1306”
Condition
Meshtastic LoRa Device ESP32 V3 SX1262 915MHz Long Range Off Grid Radio Mesh Kit · x1
