DRO 1um Linear Scale Digital Readout 2/3 Axis for Bridgeport Mill Lathe,US STOCK
$109.99
92078 Sold by toolestore Fulfilled by toolestore

DRO 1um Linear Scale Digital Readout 2/3 Axis for Bridgeport Mill Lathe,US STOCK

GHS 2,625 delivered to Accra est.

Estimate for one unit, air shipping. Final total is confirmed at checkout.

Product arrives warehouse Sep 25 - Sep 28. Products ship from our warehouse every Friday. Delivered to you by Oct 13, 2026.

Quantity
1
Size

About this item

Applications: Milling Machine, Lathe, EDM, Grinder etc.

Specifications & Functions :
AC80V~260V,50~60Hz, US plug available
Power consumption: 15VA
Operating temperature: 0~45℃
Storage temperature: -30~70℃
Relative humidity: Less than 90%
Readout input signal: TTL square wave
Input signal frequency: Less than 5M Hz
Resolution : 1um/0.001mm/0.0001"
Min resolution of DRO angle :0.0001/pulse
DRO Dimensions: 11.6"X6.7"X2.56"
Linear Scale Interface: DB9(RS232)
SDM 200 sets memory, power-off memory for 10years , circumference drilling, oblique line drilling, 1/2 centering
PCD function
R function
Smooth R function
The simple R function
Chambering (applicable to: Milling machine, Boring machine)
Tool compensation (for lathe)
Machining of oblique plane
Calculator


PACKAGE INCLUDED :

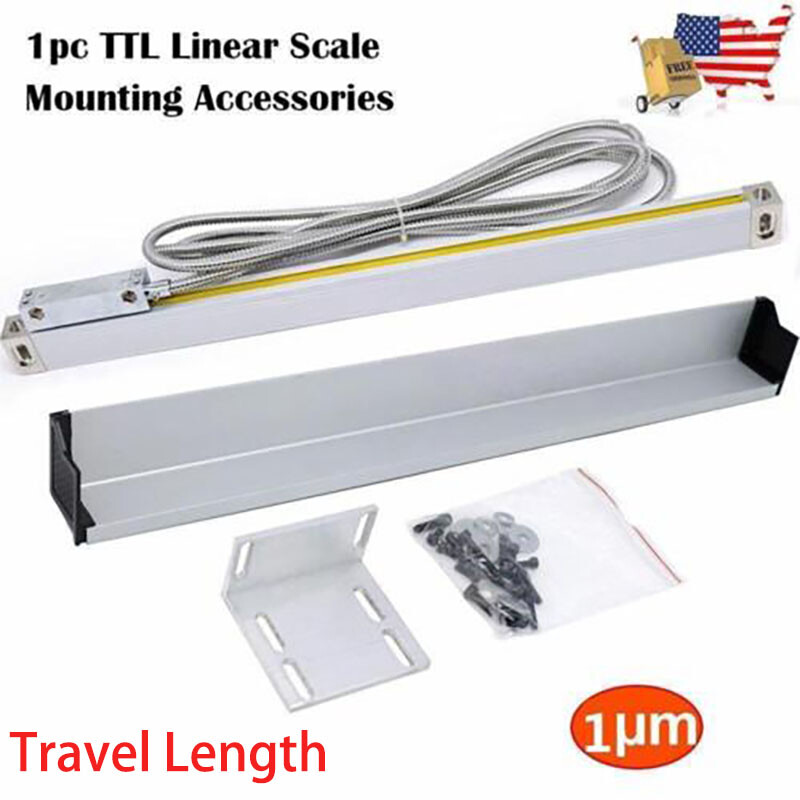

1pc DRO Or 1pc Linear Scale (Travel Length 100/150/200/250...1000MM)

1Set Installation Accessories

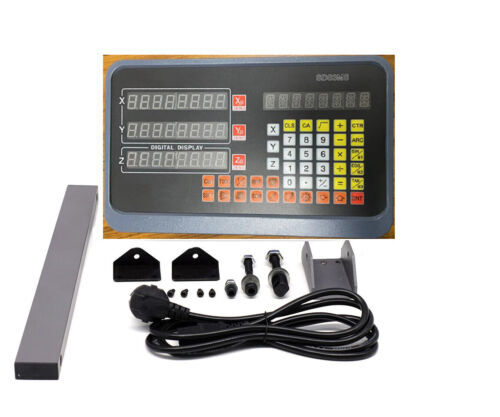

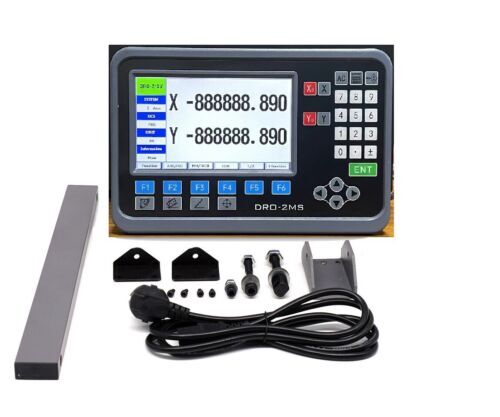

2AXIS DRO 3AXIS DRO 2AXIS DRO LCD SCREEN 3AXIS DRO LCD SCREEN


FAQ:

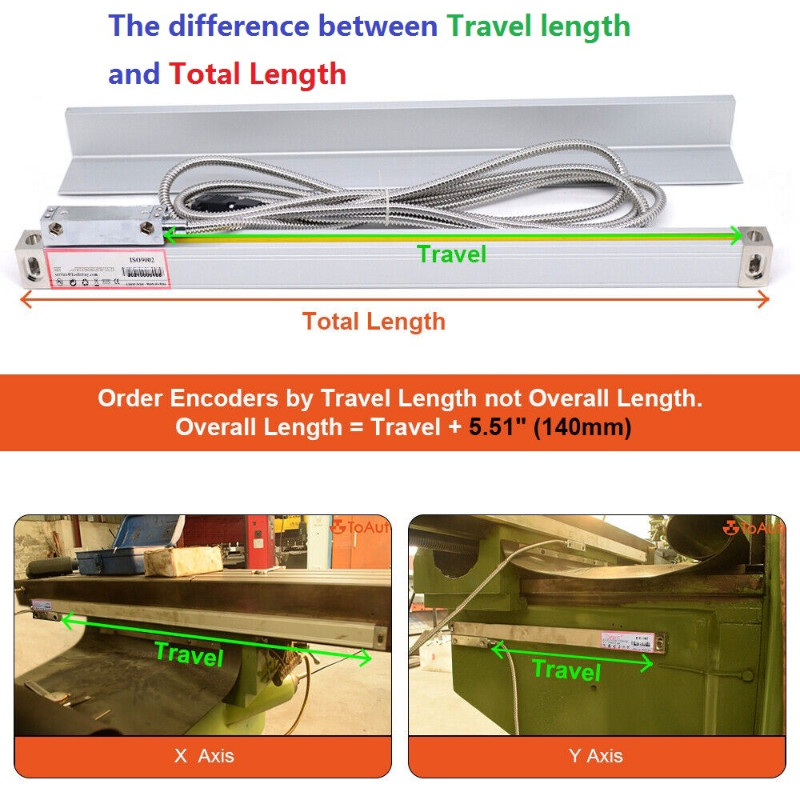

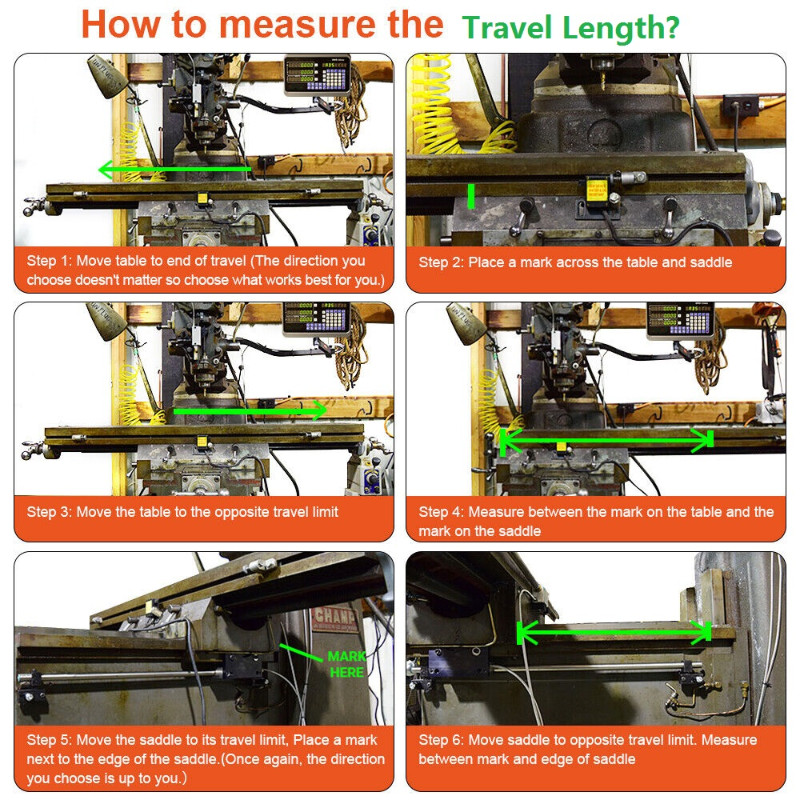

Q1 : are the length 100, 150, 200.... 1500mm travel length or total ?
Answer : all are travel length

Q2: if i need 250mm , 1000mm scales with 2axis digital readout, how should i do ?
Answer : You can select the 250MM (10"), 1000MM (40") and 2Axis Digital Readout add in your cart, then make the payment together, we will ship them in one kit to you .

Q3 : if i need a scale like 255mm , can you offer it ?
Answer : 250mm is enough , its measuring range can reach up to 270mm，so you can use if you need to measure 255mm.

Q4: How to switch Mill type to Lathe type ?
Answer : Please contact to get the video . (press 6 times after DRO powers on)



RESOLUTION OPTIONAL MULTIFUNCTION 9 PIN CONNECTIONS
1μm(0.0001")
DRO must be set to completely match
the linear scale accuracy.
circumference holes processing, linear
holes processing, ARC processing,
oblique processing, slope processing,
chamber processing, R function,the tool  diameter compensation function, digital
filter ,radius/diameter, mm/inch etc.
Readout only allows TTL square wave signal input
through 9 pins connector .
Pin 1 to 4 connects +5V, 0V, A, B
Pin 5-9 is blank.



DOUBLE SEAL & SIGNAL ABLE REPEATING POSITIONING FULL SET ACCESSORIES
Signal cable uses multilayer shielded wire steel and metal shell to provide extra  protection . Deafult offer 3meters (9.84feet   long) cable connecting with linear scale.

 Sensor adopts the precision metrology grating as the measurement standard. And the sliding parts have excellent repeatable positioning performance.

 Full set of installation accessories (L type cover, backplate and screws ) included inside the linear scale , each scale equipped with some extra screws to avoid unsccessful installation .

Condition

New
