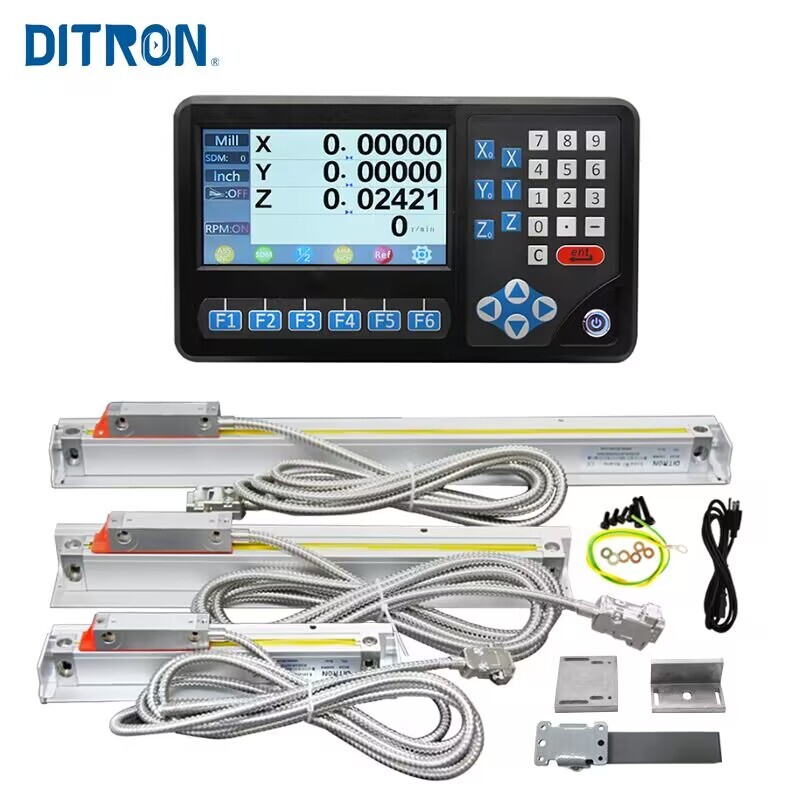

1um 3 Axis Milling CNC Digital Readout DRO Linear Glass Scale Bridgeport Dro Set
Estimate for one unit, air shipping. Final total is confirmed at checkout.
Product arrives warehouse Sep 26 - Oct 7. Products ship from our warehouse every Friday. Delivered to you by Oct 20, 2026.
About this item

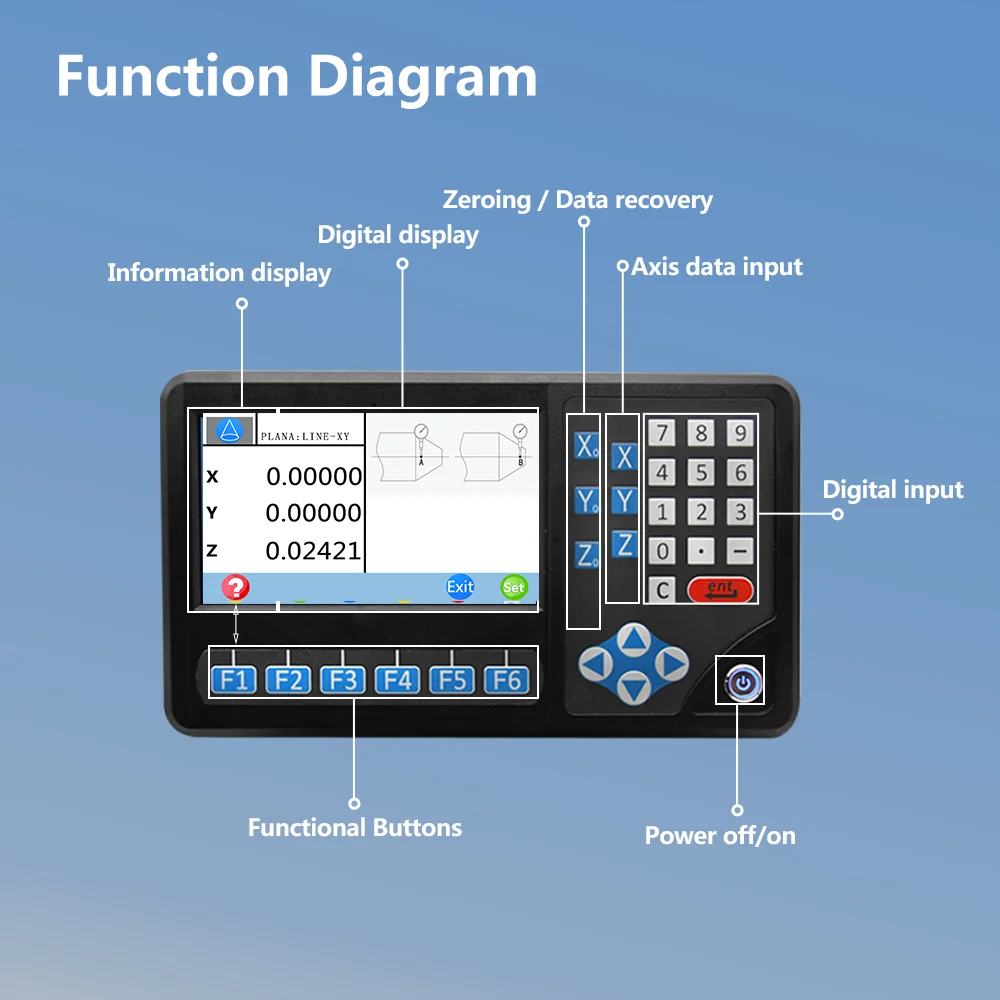

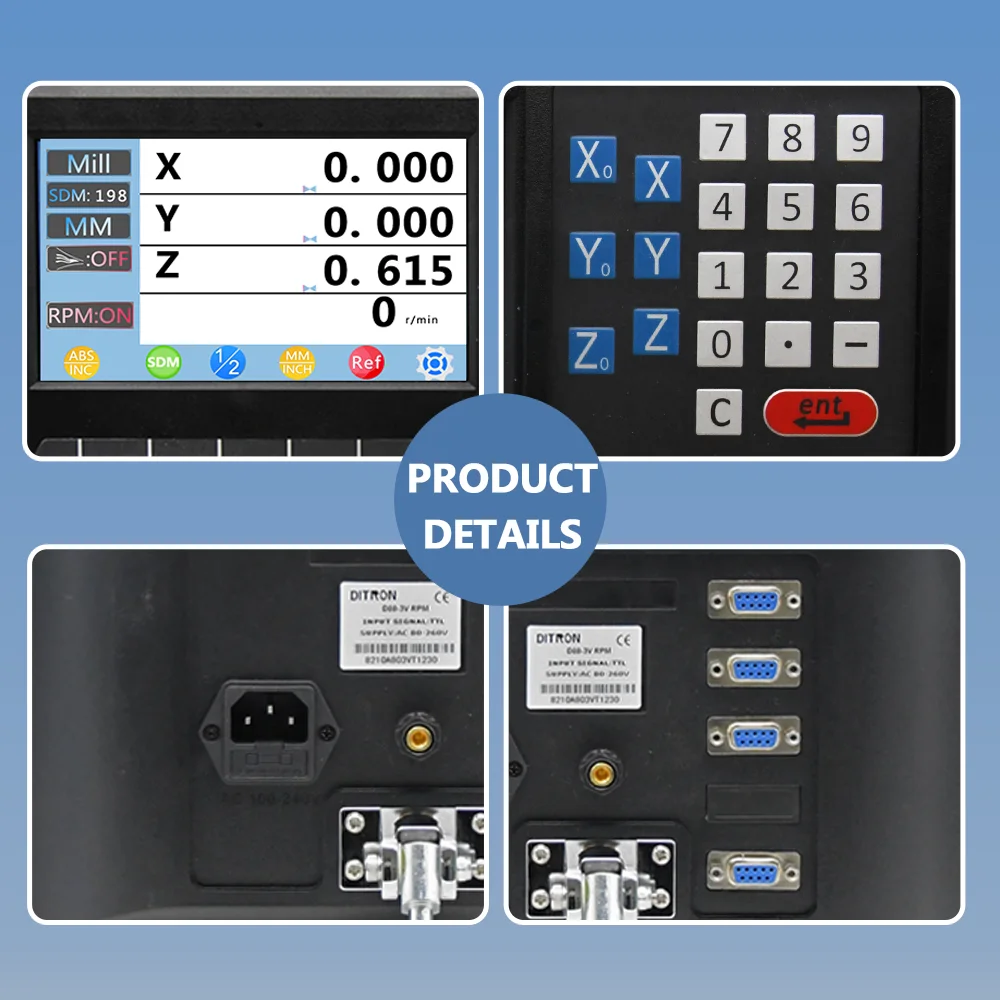

DITRON 3 Axis Digital Readout Display Dro Technical parameters:
1)Voltage Range:AC80V-260V/50HZ-60HZ
2)Power Dissipation:15W
3)Working Temperature:-10C°-60C°
4)Coordinate Display: 2/3/4 Axis
5)Input Signal:5VTTL/RS422
6)Resolution:0.1um,1um,0.5um,5um,10um
Dro Basic Functions:
1)Zeroing and data recovery
2)Value Inputting
3)Metric and Imperial Switching
4)Power off memory
5)Encoder Selection(Rotary or Linear)
6)Linear Compensation
7)Non-linear Compensation
8)Calculator
9)Counting Direction Setting
10)ABS/INC Coordinates
Dro Special Functions:
1)REF Centering
2)PCD Function
3)PLD Function
4)Simple R Function
5)Smooth R Function
6)Radius/Diameter switching
7)Axis summing
8)Digital Filtering Function
9)Taper Measuring Function
10)Rectangle Chambering Function

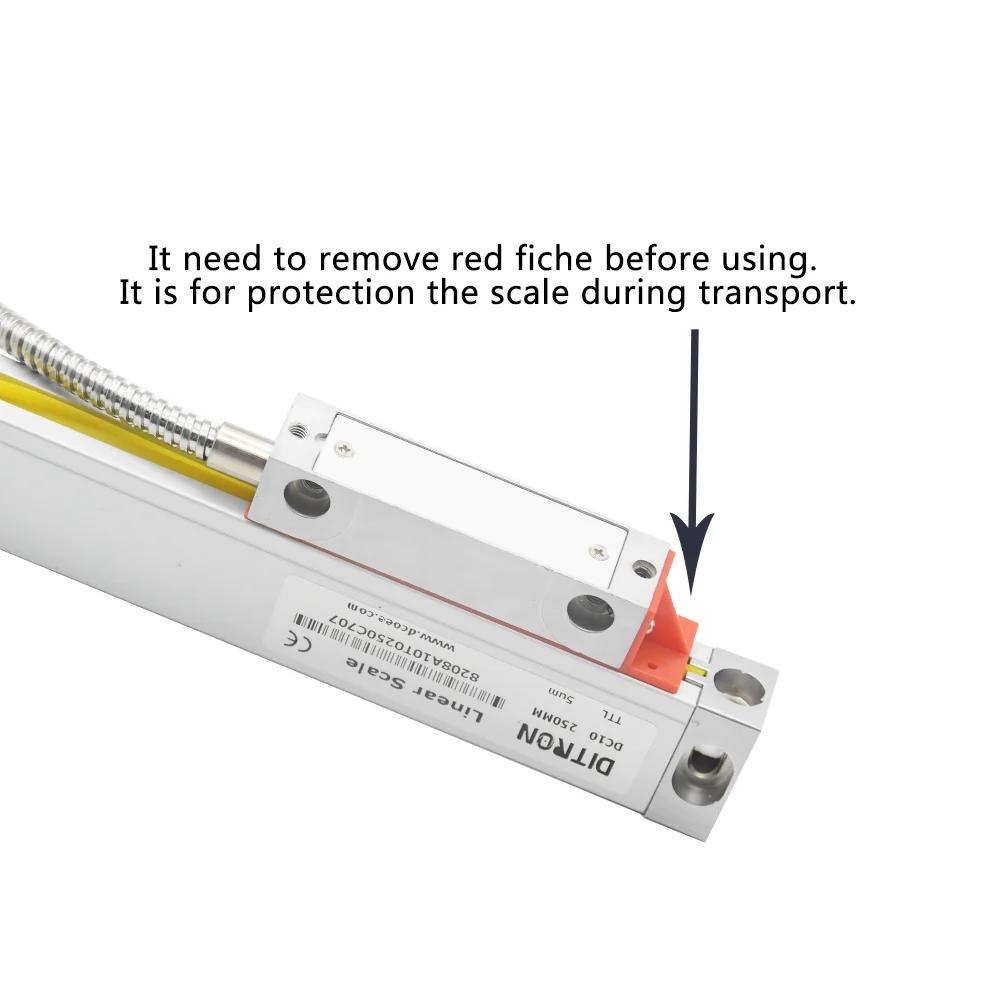

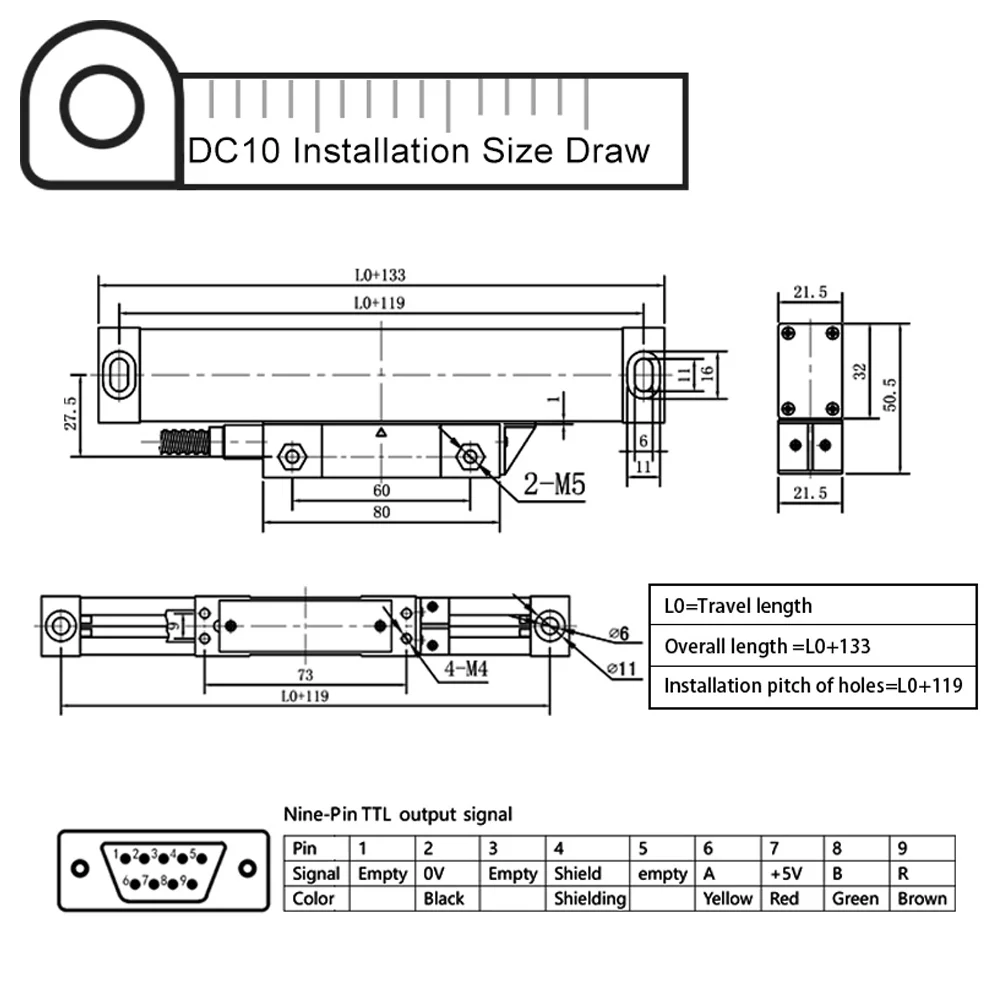

Linear Scale Sensor/Encoder Technical Parameters:
1.Measuring Length:50-1100mm
2.Resolution:5um

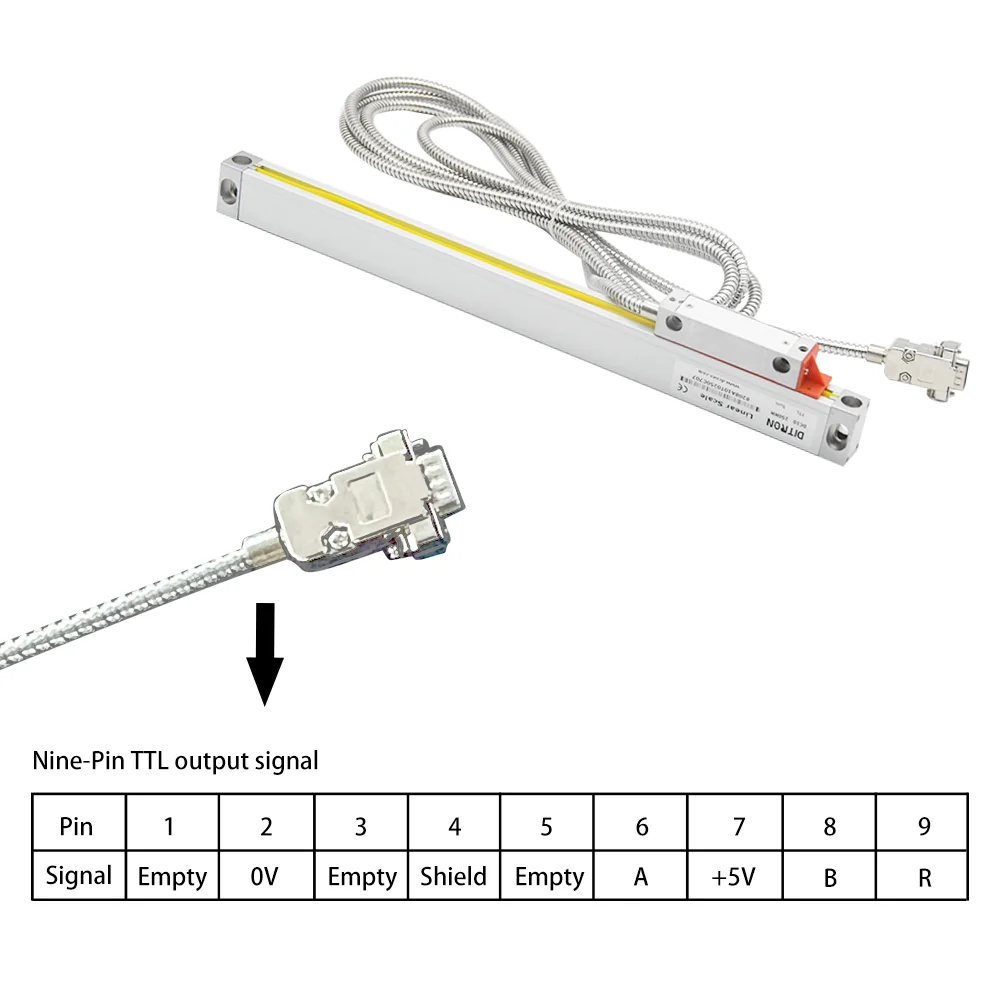

3.Output Signal:5VTTL,5VRS422
4.Accuracy:±5u,±10um/M
5.Working Temperature:-10C°-60C°
6.Sealing Protection:IP55
7.Max.Moving Speed:60M/Min
8.Reference Point:Every 50mm

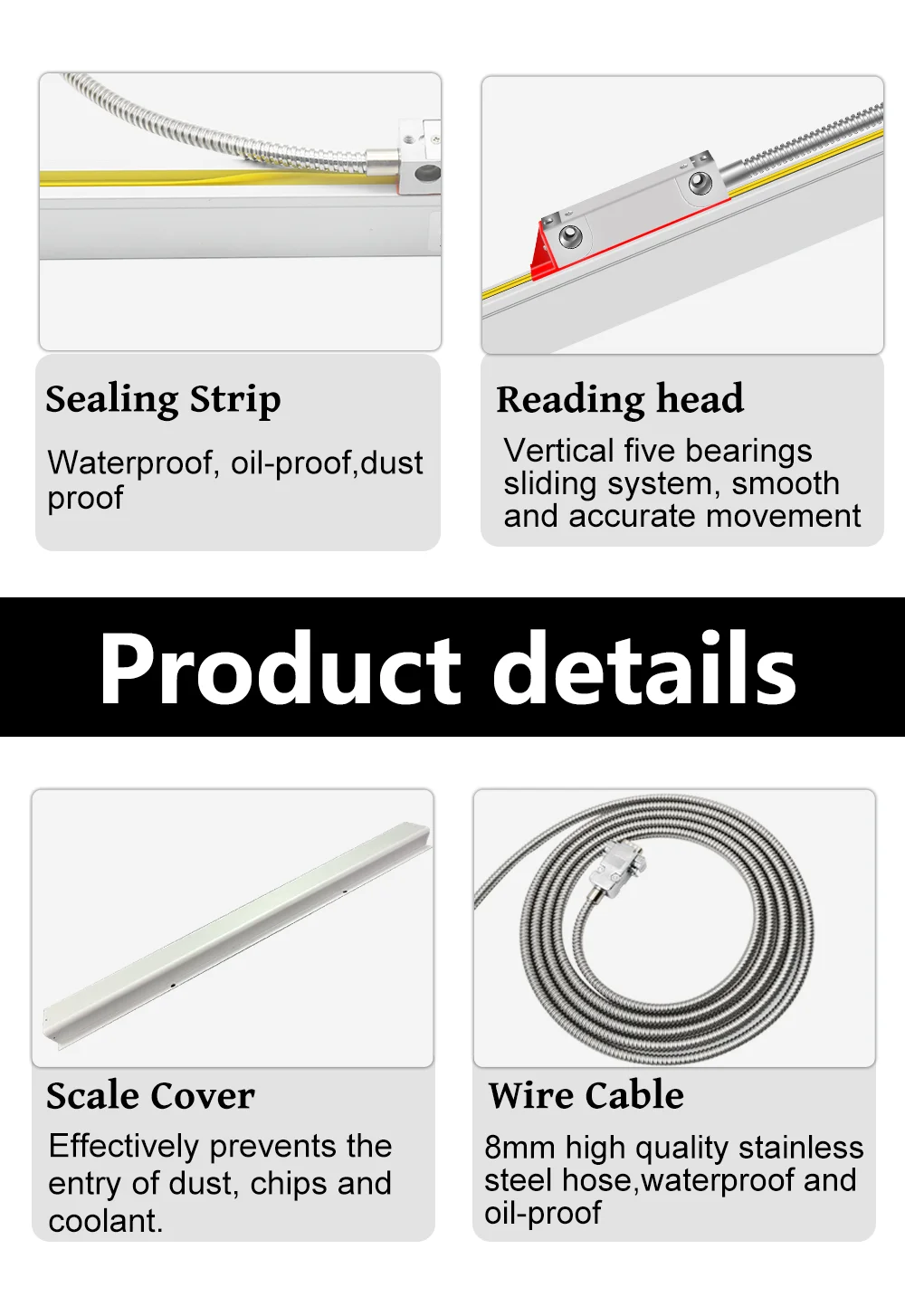

The Advantages of Linear Scale:
1)IP55 Protection, waterproof, oil proof and dust proof.
2)45° Vertical five bearings sliding system, smooth and accurate movement.
3)Calibrated by Laserinterferometer,accuracy guaranteed.
4)Full Sealing structure, swarf and coolant proof.
Condition
1um 3 Axis Milling CNC Digital Readout DRO Linear Glass Scale Bridgeport Dro Set · x1
